Handling Curved Glass, the Magical Glass Lifter

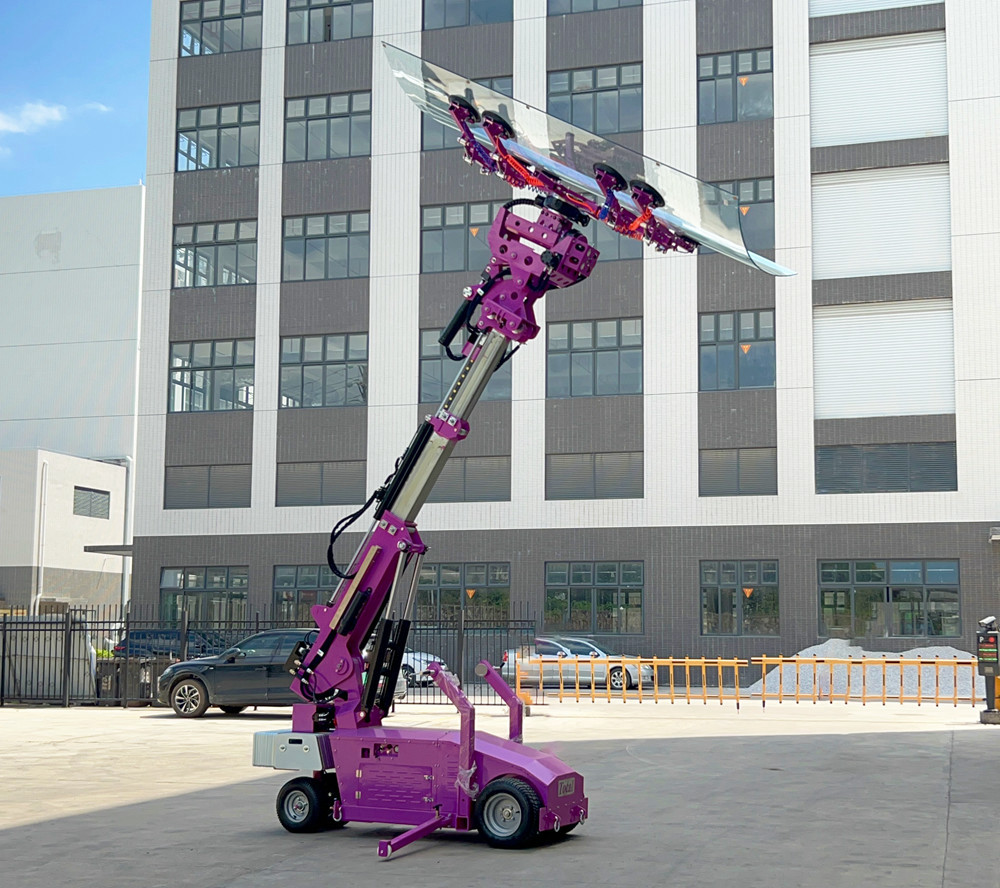

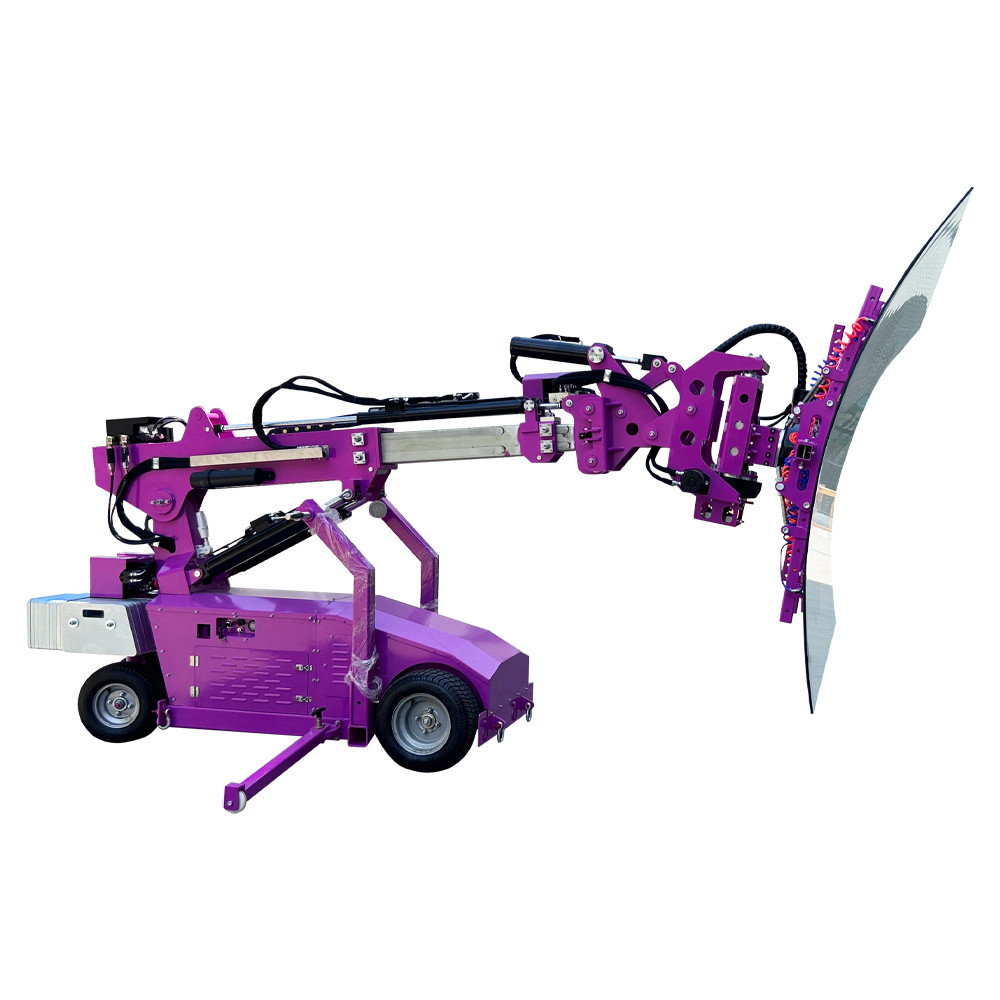

The WSR-800LA is a wheel-type glass panel lifter that carries, tilts and installs a glass panel on one compact chassis. Two 500×800mm suction cups on dual pumps and dual vacuum circuits grip the panel, and the two-stage boom lifts it to 4600mm with 1150mm of arm extension, so shopfront glazing, canopy glass, partition glass and interior glass fit-out are handled from a single machine position.



Capacity is stated as load against arm extension rather than as one headline figure, and three load curves of 800kg, 500kg and 300kg are published with the machine, so the rating for your own panel weight and reach can be read off the curve before you order. The chassis steers and drives under remote control, so one operator moves the machine and controls the panel from the same handset.



All movements are electric and wireless remote controlled, and the main parameters are visible on the controller while the machine is working, so the operator can see the working state without leaving the load. A 24V battery pack gives 6 to 8 working hours per charge.









Electric control of: driving, lifting, extension, rotating, tilting, side shifting, up and down shifting and side turning. Every movement is by wireless remote control, and the main parameters are visible in the controller.



1. Two long-format suction cups instead of small round cups. Two 500×800mm cups spread the load across a full panel width, so a single large panel can be gripped without four or eight small cups fighting a heavy glass edge. This is why the machine suits shopfront and partition glass, where panels are large and rectangular rather than small square units.



2. 800kg to 4600mm, with the load curve published. The two-stage boom gives 650mm + 500mm of extension, and three load curves of 800kg, 500kg and 300kg are published with the machine, so the rating for your own panel weight and reach can be read off the curve before you order instead of being taken on trust.

3. Full suction frame articulation. 360° endless rotating, 0-180° tilting, 90° side turning on both sides, ±50mm side shifting and ±75mm up-and-down shifting, all electrically operated, let one operator set a panel square to the opening without a second person guiding it.



4. Wheel-type chassis that steers and drives under remote control. The machine is driven and steered from the handset rather than walked, so the operator stays clear of the load and can reposition the whole machine without climbing down, which saves time on every panel.



5. Main parameters visible in the controller while the machine works. The operator can read the working state from the handset instead of guessing, which matters on a lifting job where the load has to be set down accurately.



6. Millimetre-level speed available, so a heavy panel can be placed slowly and a light panel moved at working speed on the same machine, with one operator and no second person guiding.



7. Dual pumps and dual vacuum circuits, so the vacuum is generated and monitored on two circuits rather than one, and the loss of a circuit is a service item rather than a dropped panel.



8. 12% uphill capability with a 24V motor on the front wheel, so the machine works on site ramps and uneven ground without a separate crane or a ramp built for it.



The WSR-800LA is a wheel-type glass panel lifter for large rectangular panels. Two 500×800mm suction cups on dual pumps and dual vacuum circuits grip the panel, and the two-stage boom lifts up to 800kg to 4600mm with 1150mm of extension. Three load curves of 800kg, 500kg and 300kg are published with the machine, so the capacity at your own panel weight and reach can be confirmed before you order. The chassis is driven and steered by remote control with the main parameters visible in the controller, and every movement is electric and wireless remote operated, so one operator handles the whole cycle. It is CE certified, backed by a 1-year warranty including the battery, and supplied as a complete unit with charger and remote control. Send us your panel weight, the panel dimensions and the height you need to reach, and we will confirm the capacity from the load chart and record a video of the machine handling a panel of that specification.





1. How much glass can it lift, and how does the load change?
Up to 800kg to a 4600mm lifting height with 650mm + 500mm of arm extension. The maximum load accords the length of the extended arm, and three load curves of 800kg, 500kg and 300kg are published with the machine. Send us the panel weight, the panel dimensions and the reach you need, and we will read the rating off the curve for you.



2. What size of panel can the suction cups hold?
Two 500×800mm cups are fitted, which suits large rectangular panels rather than small square units. Because the cups are long-format rather than small round cups, the load is spread across the panel width, which is what makes an 800kg rating workable on a single panel. Send us the panel dimensions and we will confirm the cup layout and the capacity together.



3. How is the machine operated, and does one operator handle the whole job?
Everything is electric and wireless remote controlled, including driving, lifting, extension, rotating, tilting, side shifting, up and down shifting and side turning. The chassis steers and drives from the same handset, and the main parameters are visible in the controller while the machine is working, so one operator can move the machine and place the panel without a second person guiding it. Millimetre-level speed is available for the final placement.



4. What happens if a cup loses vacuum, and what is the warranty?
The two cups run on dual pumps and dual vacuum circuits, so a loss of vacuum is a service item rather than a dropped panel. The machine uses most common hardware parts, so parts can be bought locally from a hardware or forklift parts supplier rather than shipped from us, and if the machine does break down we guide the repair by video and repair instruction. One year quality guarantee including the battery, wheels not included; if it breaks down within one year we send the parts free of charge. The battery life span is up to 4 years if maintained according to our maintenance manual.
