Product details

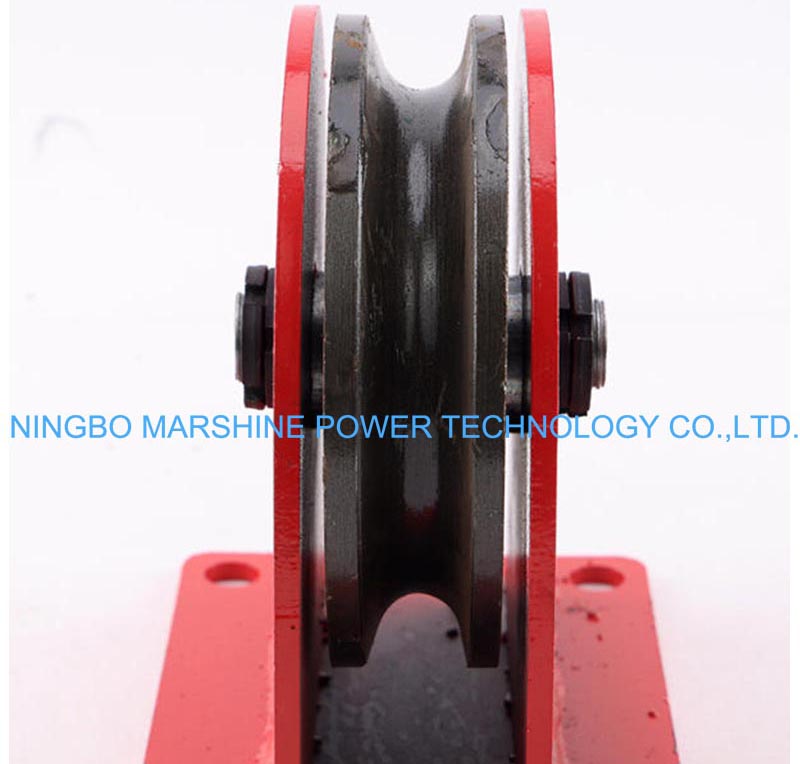

3 T Double Bearing Wire Rope Pulley

The MARSHINE has been a professional producing the lifting and material handling equipment that focused on providing strong, durable, and high-performance products to satisfy varying requirements of industry like construction, industrial. The MARSHINE 3 T Double Bearing Wire Rope Pulley is a classic heavy-duty fixed pulley with double bearing as its core structure, which can allow it gives a dependable load bearing support for wire rope lifting operation.

This MARSHINE 3 T Double Bearing Wire Rope Pulley is rated load of 3 tons, which can meet the requirement of medium heavy-duty load in most industrial applications.

This pulley block has a double bearing architecture that can reduce the running friction to make sure the wire rope runs smoothly and unobstructed.

The whole system is made of high quality alloy steel, and has good wear resistance and impact resistance, which can be used for long time in the harsh working environments.

The lifting speed is as high as 60 m/min, which can greatly improve the site workshop material lifting and handling efficiency.

This kind of snatch block is suitable for construction work where building materials, such as reinforcing bars and precast concrete parts.

The maximum capacity of the lifting load is 3 tons and the lifting speed can reach 60 m/min.

It is used as a significant auxiliary tool at the manufacturers, which cooperate with wire ropes to raise the heavy-duty machine pieces in the production as well as the assembling.

This MARSHINE Wire Rope Pulley has an excellent performance for power and mining industries, as its solid alloy steel construction manages to lift mining machinery and ore easily.

Product Parameter

Model	A (mm)	B (mm)	L (mm)	H (mm)	B1 (mm)	L1 (mm)	d (mm)
LP-1T	106	106	150	129	80	110	7-11
LP-2T	140	125	186	168	90	138	11-14
LP-3T	165	140	225	190	100	175	12-15
LP-5T	202	150	245	230	120	185	15-18
LP-8T	264	210	360	307	145	240	20-23
LP-10T	300	220	400	342	160	290	23-25
LP-16T	390	290	530	450	205	340	28-31
LP-20T	440	275	560	500	210	380	31-35
