Schottky Bypass Diode Module MK4045

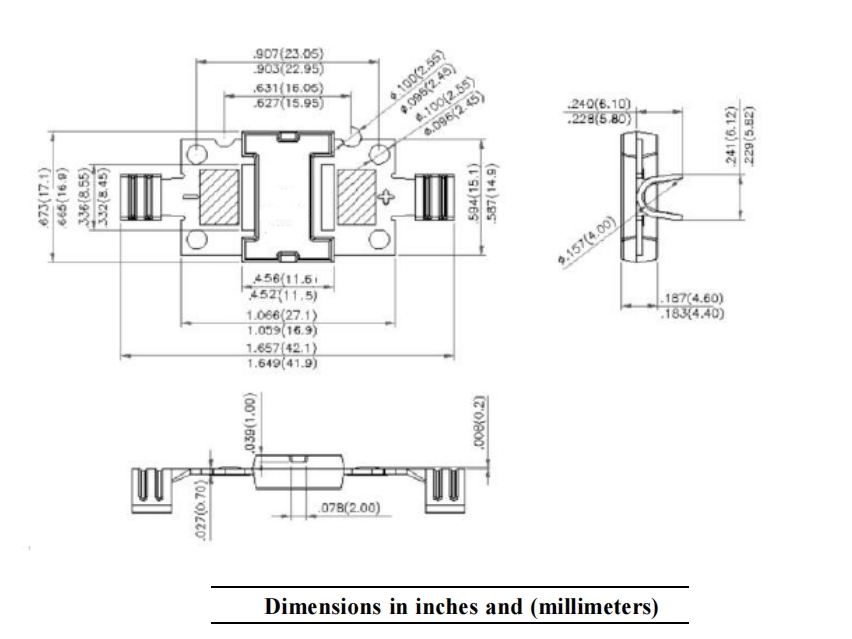

Symbols

40MT045

Units

Maximum Recurrent Peak Reverse Voltage

VRRM

45

V

Maximum RMS Voltage

VRMS

31.5

V

Maximum DC Blocking Voltage

VDC

45

V

Maximum Average Forward Rectified Current at TC = 125°C

I(AV)

40

A

Peak Forward Surge Current,

8.3ms single half-sine-wave

IFSM

400

A

superimposed on rated load (JEDEC method)

Maximum Forward

at IF  = 30A, TC  = 25°C

VF

0.55

at IF  = 40A, TC  = 25°C

0.59

V

Voltage (Note 1)

at IF  = 40A, TC  =125°C

0.47

Maximum Reverse Current

at TJ=25℃

IR

0.5

mA

at Rated DC Blocking Voltage

TJ=100℃

500

Typical Thermal Resistance

RθJC

1.2

℃/W

Operating Junction Temperature Range

TOP

-55 to +150

℃

Junction Temperature in DC Forward Current Without Reverse Bias. T ≤ 1 hour (Note 3)

TJ

≤ 200℃

℃

Storage Temperature Range

Tstg

-55 to +150

℃
