X77videoMINI RIUTER
2 year ago

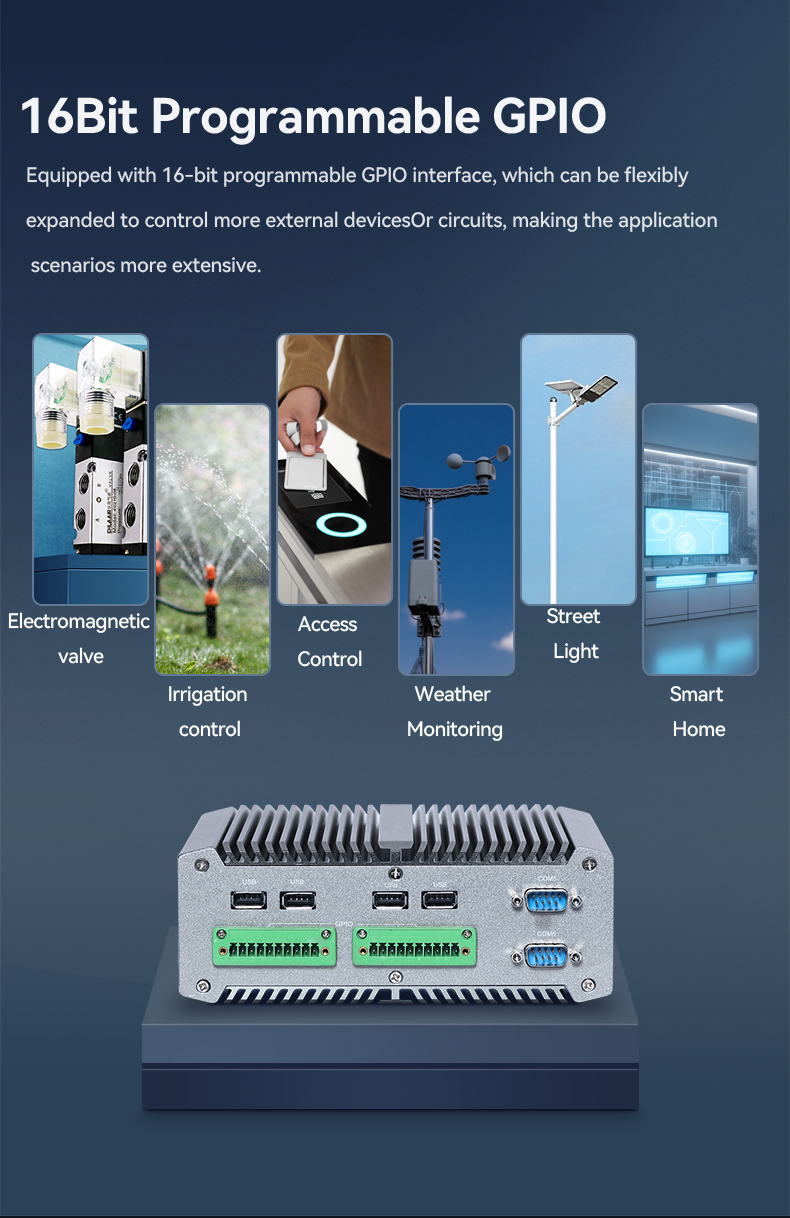

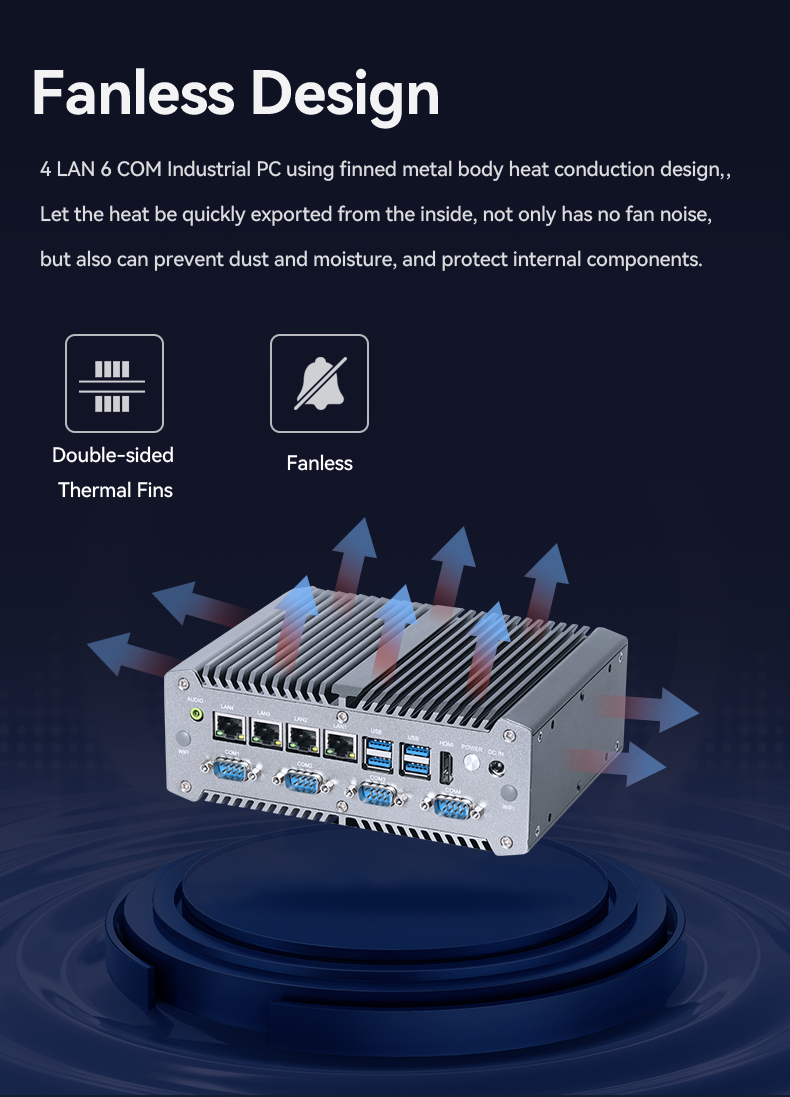

This mini computer boasts four Intel 1211 gigabit LAN ports and six COM ports (COM 1-2 support RS232/422/485 conversion), making it ideal for use in industrial settings, commercial applications, and other industrial environments. Additionally, the computer comes equipped with a 16-bit programmable GPIO interface, which allows for flexible extensions to control more external devices or circuits and provides a wider range of potential application scenarios. The computer also features an HDMI1.4 port and a built-in LVDS port that is extendable, enabling synchronous and asynchronous dual display outputs.

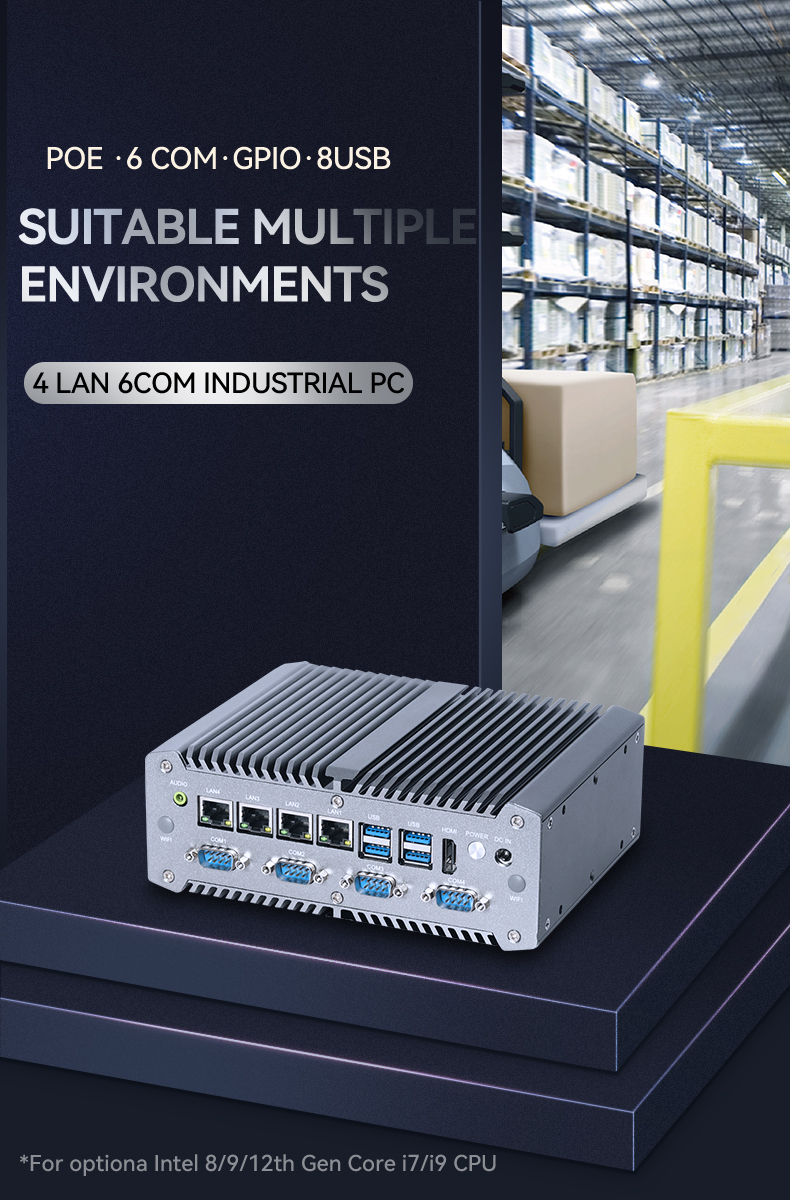

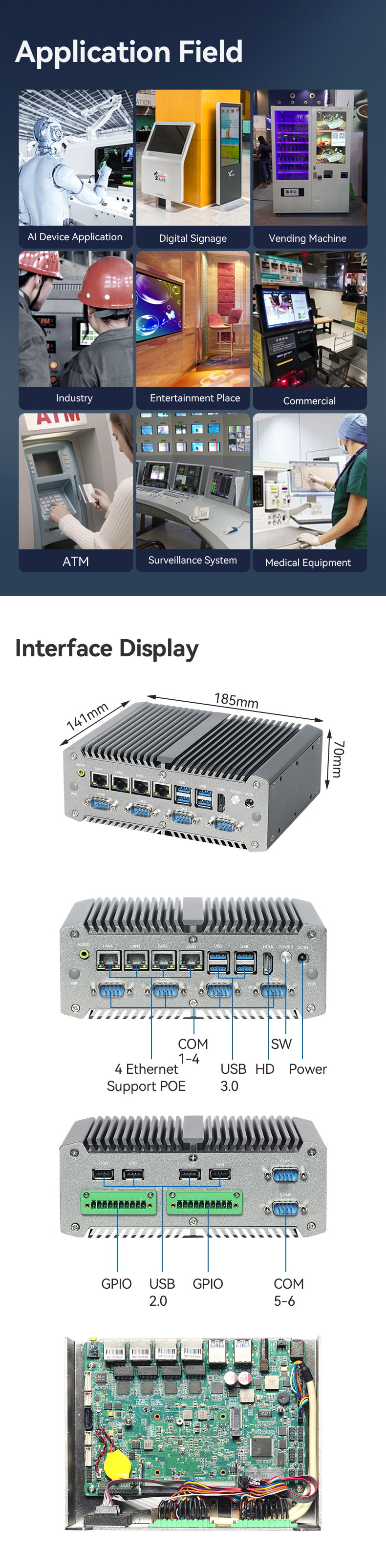

This mini PC is suitable for use in numerous fields, including AI device applications, digital signage, vending machines, industries, entertainment venues, commercial establishments, ATMs, surveillance systems, medical equipment, and more. It supports both Windows 10/11 and LINUX operating systems.
Product Details
Intel Celeron 5405U
Intel Core i5-8250U
CPU
Memory

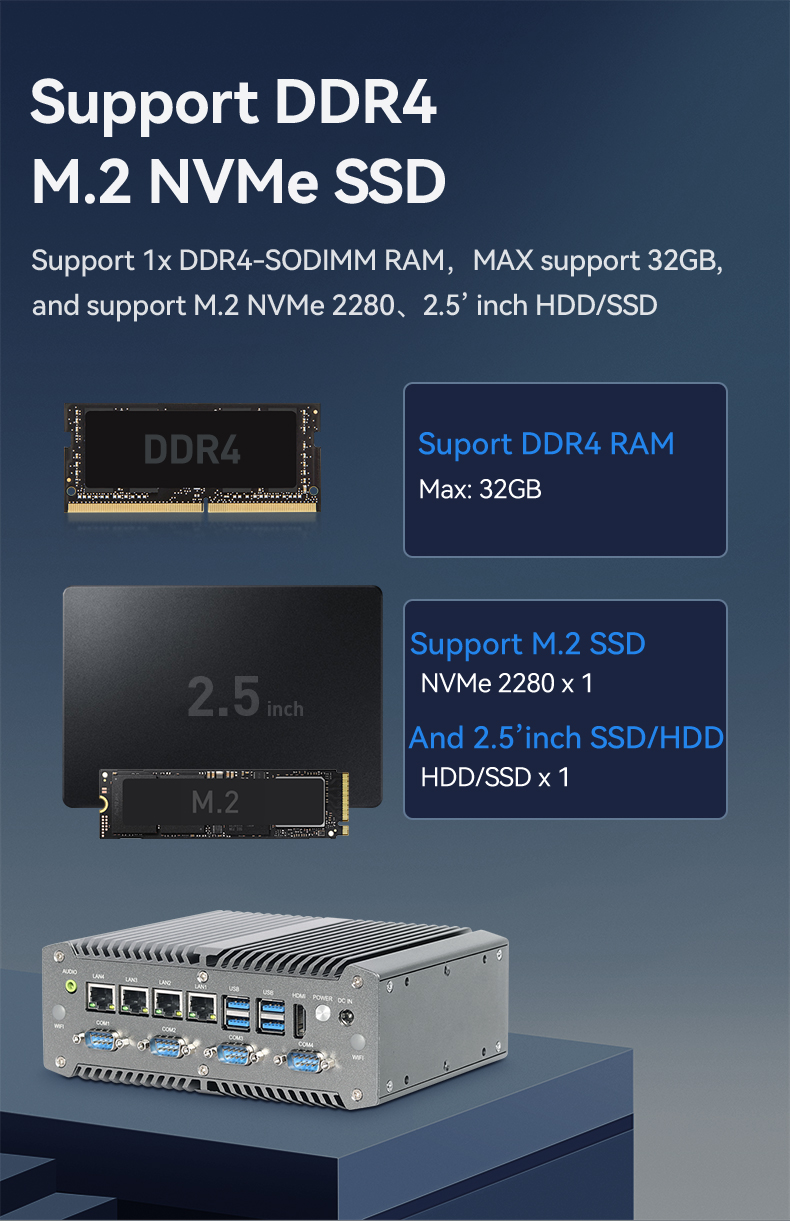

Single Channel DDR4 SODIMM, Max up to 32GB
Hard Disk(SSD)
1*M.2 2280(support NVMe 2280 SSD) + 1*2.5'inch SSD/HHD
Display
1*HDMI1.4 (support 4096*2304@24HZ), 1*LVDS
OS Supported
Windows 10/11, LINUX
LAN

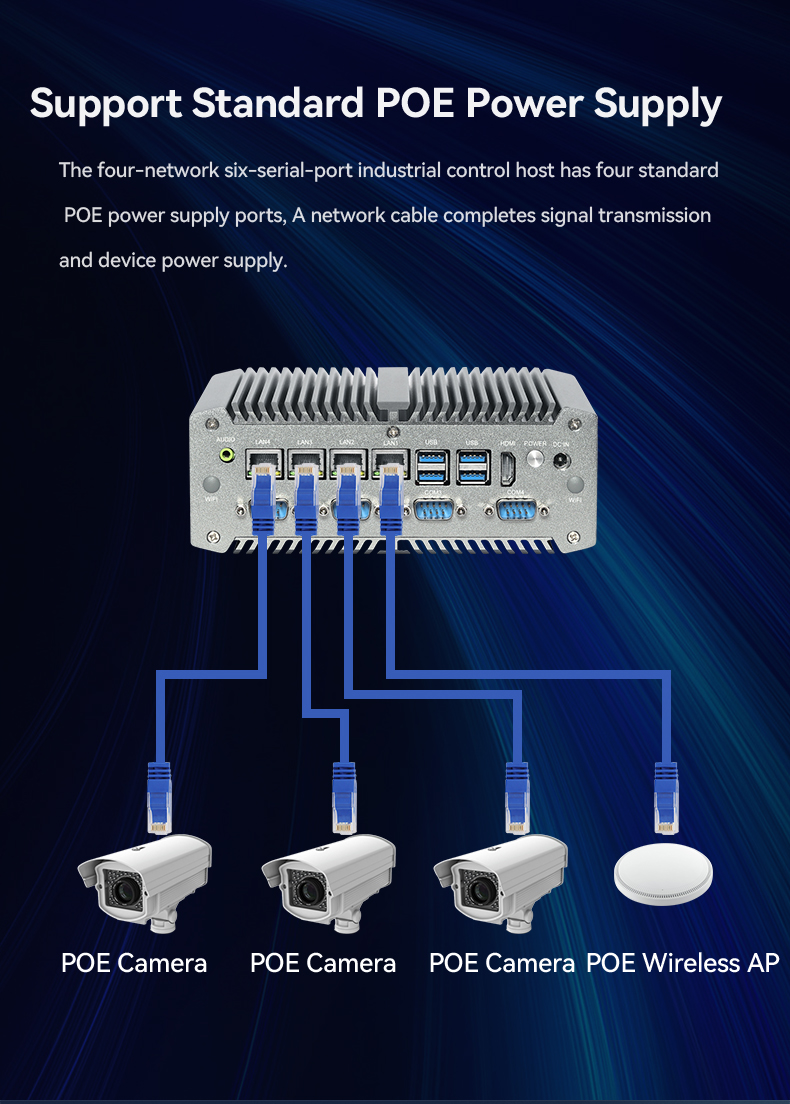

Intel 1211 LAN*4, Support POE, WOL, PXE
I/O Ports

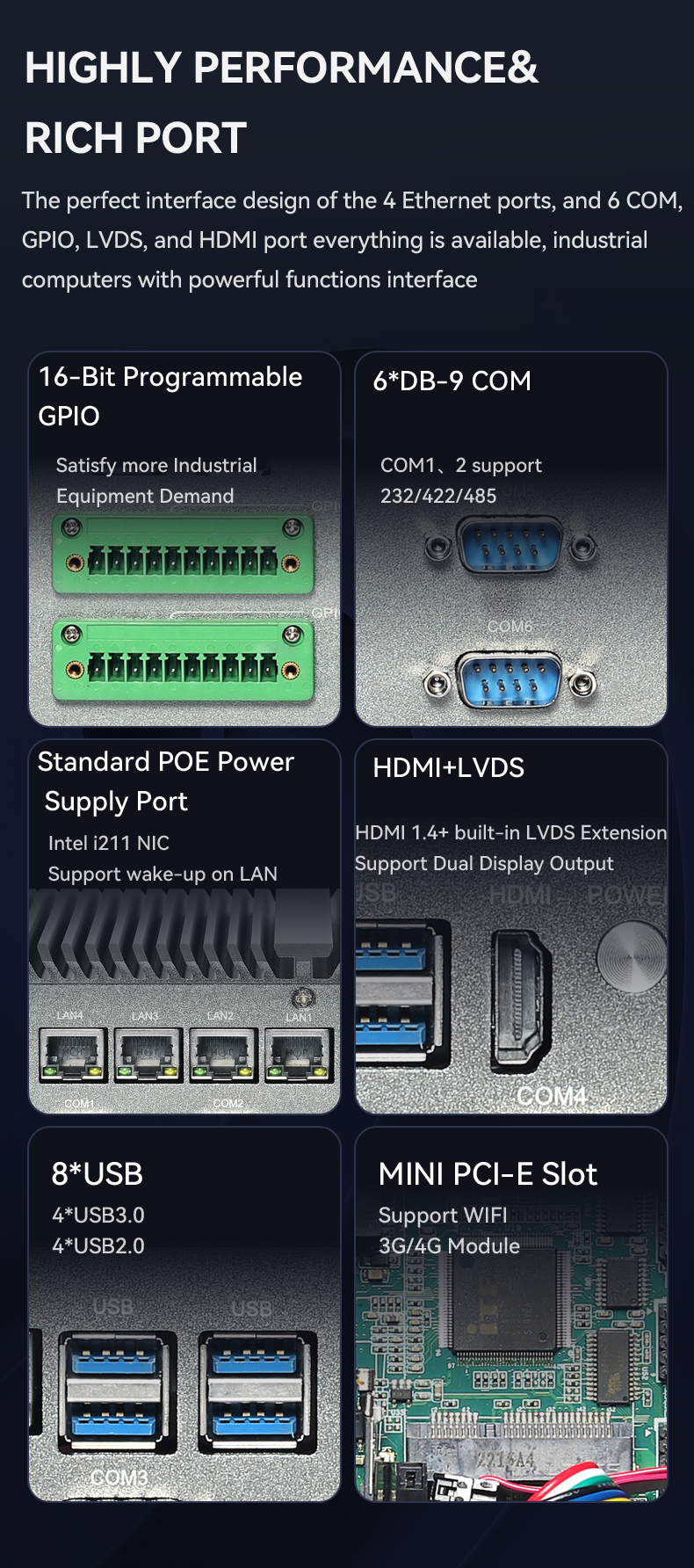

4*USB3.0, 4*USB2.0, 6*DB9 COM(2*RS232/422/485, 4*RS232), 1*GPIO, 1*HDMI 1.4, 1*DC, 1*Audio
Expansion
MINI-PCIE slot*1 (support WIFI/3G/4G module), SIM slot*1, LVDS*1

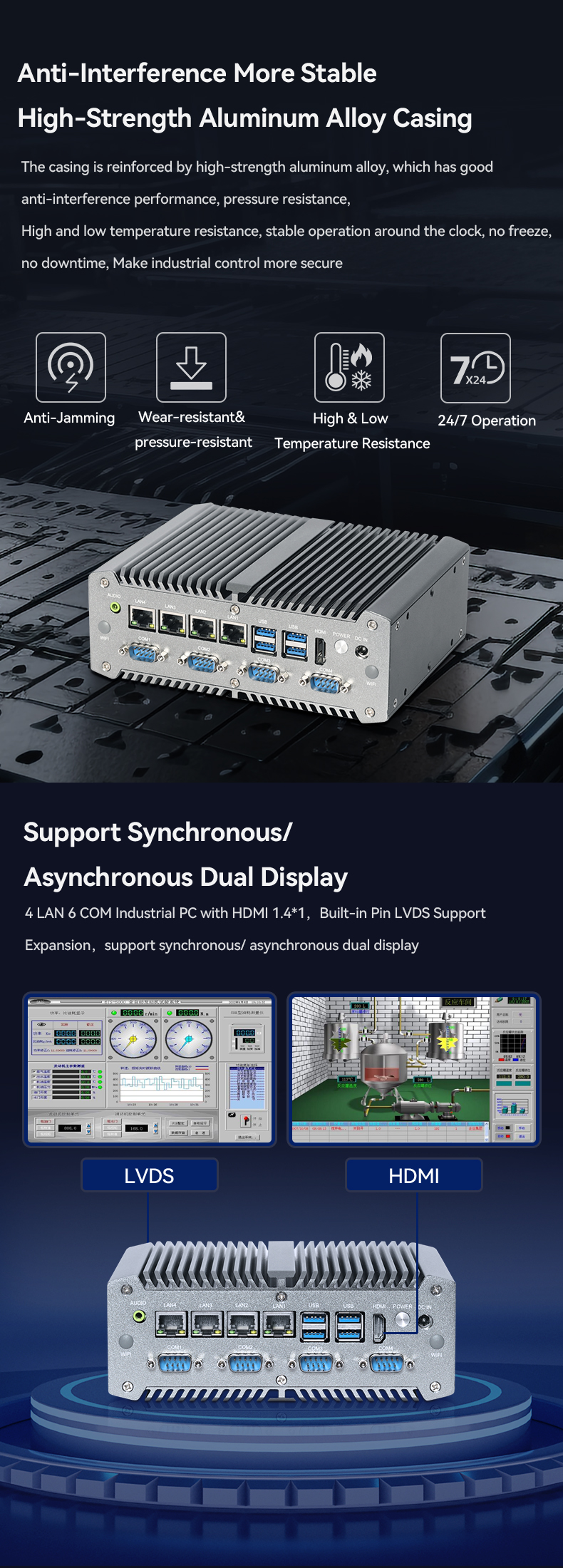

Material
Aluminum Alloy
Operating Temperature
-20~70℃
Storage Temperature
-30℃~ 70℃
Relative Humidity
5%~95% (without condensation)
