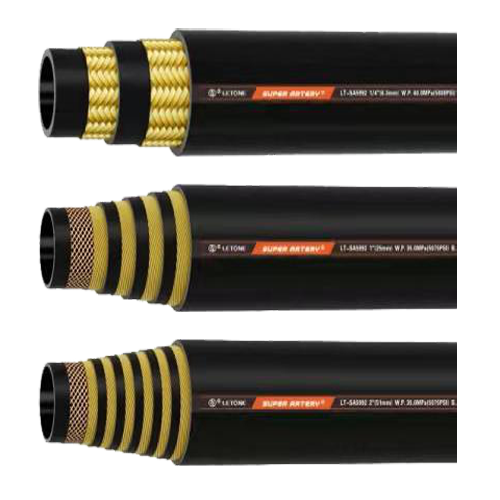

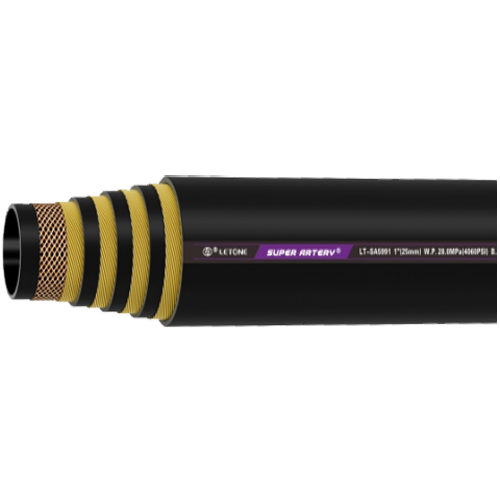

The Thermoplastic Hose is a high-performance hose designed with premium synthetic fiber braids as the reinforcement, providing excellent corrosion resistance and high-temperature tolerance. This Aramid Fiber Braided Hose is suitable for transporting various resins, solvents, chemicals, and liquids, making it widely applicable in industries such as chemical processing, pharmaceuticals, automotive, and aerospace.
Key Features:
High-strength Fiber Braids: The hose is constructed with one or two layers of synthetic fiber braids, ensuring exceptional pressure resistance and durability even in high-pressure environments.
Corrosion Resistance: The hose material exhibits outstanding resistance to corrosion, making it capable of safely conveying various chemicals and solvents while maintaining the purity of the transported liquids.
High-Temperature Tolerance: Designed to withstand high-temperature conditions, the hose performs exceptionally well in high-temperature processes and applications.
Flexibility: The hose possesses excellent flexibility and resistance to twisting, allowing for easy handling and maneuvering in complex working environments.
Safety Certified: The hose meets relevant safety standards, undergoes rigorous quality certifications, and inspections to ensure its safety and reliability during usage.
The Steel Wire Braided Rubber Hose finds wide application in liquid transport across various industrial and commercial sectors. Whether it's chemical manufacturing, pharmaceutical processes, automotive maintenance, or aerospace operations, this hose offers reliable solutions for liquid transfer. Customizable with different models and specifications, it caters to diverse needs and work environments, ensuring optimal performance and efficiency.
| I.D. | O.D. | W.P. | W.P. | MIN.B.P. | W.T.* | ||||
| Dash | In. | mm | mm | MPa | psi | MPa | psi | mm | g/m |
| -3 | 3/16-1 | 4.8 | 9.8 | 35 | 5070 | 140 | 20280 | 30 | 130 |
| -4 | 1/4-1 | 6.3 | 12.7 | 27.5 | 3990 | 110 | 15960 | 40 | 180 |
| -5 | 5/16-1 | 7.9 | 14.3 | 25 | 3620 | 100 | 14480 | 55 | 215 |
| -6 | 3/8-1 | 9.5 | 15.9 | 22.5 | 3260 | 63.6 | 13040 | 65 | 240 |
| -8 | 1/2-1 | 12.7 | 19.8 | 17.5 | 2540 | 70 | 10160 | 85 | 310 |
| -10 | 5/8-1 | 15.9 | 23.3 | 14 | 2030 | 56 | 8120 | 115 | 410 |
| -12 | 3/4-1 | 19 | 26.5 | 12 | 1740 | 48 | 6960 | 140 | 500 |
| -16 | 1-1 | 25.4 | 34 | 10 | 1450 | 40 | 5800 | 180 | 650 |
| -4 | 1/4-2 | 6.3 | 13.3 | 35 | 5070 | 140 | 20280 | 40 | 290 |
| -5 | 5/16-2 | 7.9 | 14.9 | 32.5 | 4710 | 130 | 18840 | 50 | 340 |
| -6 | 3/8-2 | 9.5 | 16.7 | 29 | 4200 | 116 | 16800 | 70 | 400 |
| -8 | 1/2-2 | 12.7 | 19.8 | 26 | 3770 | 104 | 15080 | 80 | 560 |
| -10 | 5/8-2 | 15.9 | 23.3 | 20 | 2900 | 80 | 11600 | 130 | 630 |
| -12 | 3/4-2 | 19 | 26 | 17.5 | 2540 | 70 | 10160 | 160 | 750 |
| -16 | 1-2 | 25.4 | 33 | 12 | 1740 | 48 | 6960 | 220 | 1000 |
Note: The actual parameters are subject to the final atlas
