The PET blowing equipment for 20 liter oil bottles
2 year ago

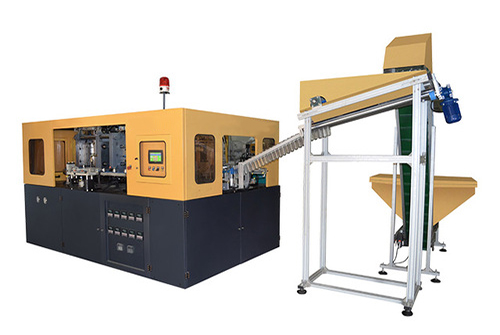

PET Injection Blow Molding Machine
Hydraulic PET injection blow molding machine
Our PET blow molding machine is designed to deliver exceptional performance, advanced features, and user-friendly operation. Here's an overview of the key highlights of our machine:
1. Enhanced Mold-Clamping System:
Precision Control: The mold-clamping system is meticulously controlled by a cylinder rail, ensuring precise and stable operation throughout the production process.
High-Quality Output: The high-pressure mold is securely locked by pressurized plates positioned behind the mold framework, reducing the visibility of the bottle clamping line and ensuring superior bottle quality.
Efficient Design: With a bottom-mold linkage structure, the machine reduces running time and increases production speed, contributing to enhanced productivity.
Ease of Maintenance: Featuring a simple yet robust framework design, our machine facilitates easy mold exchange, with skilled engineers capable of completing the process efficiently.
2. Automated Lubrication System:
Optimal Lubrication: Our fully automated lubrication system delivers precise quantities of lubricating oil to every moving part of the mold-clamping system at predefined intervals.
Preventive Maintenance: This automated process not only ensures accurate oil injection but also prevents oil contamination of the machine, reducing maintenance requirements and enhancing longevity.
Energy Efficiency: By minimizing friction and wear, our lubrication system contributes to energy savings and improved production efficiency, benefiting both the environment and your bottom line.
3. User-Friendly HMI Operation System:
Intuitive Interface: Our PET blow molders feature an intuitive HMI (Human-Machine Interface) operation system with a color touch screen available in Chinese and English languages.
Comprehensive Monitoring: Operators can easily monitor and control the machine's production status in real time, thanks to features like troubleshooting display, automatic report generation, and memory storage.
Efficient Production: The HMI system enhances operational efficiency, streamlining processes and ensuring smooth operation throughout the production cycle.
In summary, our PET blow molding machine offers a perfect blend of precision engineering, advanced automation, and user-centric design. Whether you're aiming for high-quality output, reduced maintenance, or streamlined operation, our machine is tailored to meet your specific needs and exceed your expectations.
Technical parameters
|
mposition |
Item |
|
|
Main machine |
Maximum bottle capacity |
6L |
|
Maximum bottle diameter |
Φ185mm |
|
|
Neck diameter |
Φ25-45mm |
|
|
Maximum bottle height |
<350mm |
|
|
Maximum preform height |
<200mm |
|
|
Clamping stroke |
200mm |
|
|
Bottom die stroke |
40mm |
|
|
Bottle pitch |
200mm |
|
|
Maximum output rate(bph) |
1,200 |
|
|
Number of molds |
2 |
|
|
Heating part |
Number of heating modules |
2 |
|
Number of heating lamps |
12 |
|
|
Heating base |
53 |
|
|
Electric part |
Voltage |
220/380V |
|
Frequency |
50/60Hz |
|
|
Service power |
40%-70% |
|
|
Installation power |
55kw |
|
|
Air source |
Low pressure |
1Mpa |
|
Low pressure air consumption |
2m³/min |
|
|
High pressure |
3.5Mpa |
|
|
High pressure air consumption |
4m³/min(1200bph, 5L bottle) |
|
|
Chilled water (Water temperature ≤18℃) |
Pressure |
2~4bar |
|
Flux |
3.6m³/h |
|
|
Cool water (Water temperature ≤30℃) |
Pressure |
2~4bar |
|
Flux |
6m³/h |
|
|
Weight |
G.W. |
Around 4000kg |
|
Dimension |
Main machine(L×W×H) |
3100×1900×2300mm |
|
Preform unscrambler(L×W×H) |
2500×2500×2800mm |
|
Remarks: * 1200bph output rate base on 4500ml, 110 gram. * High pressure air consumption depends on PET bottle volume, altitude etc. |
