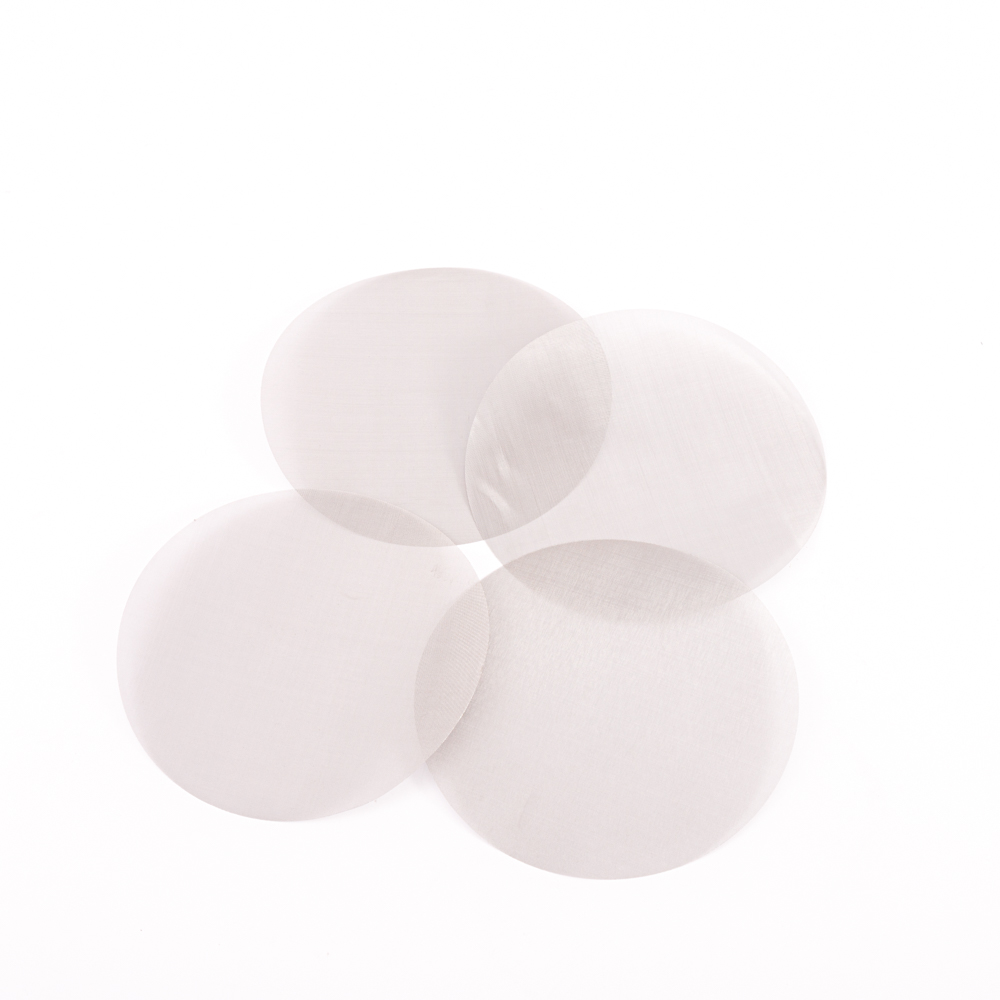

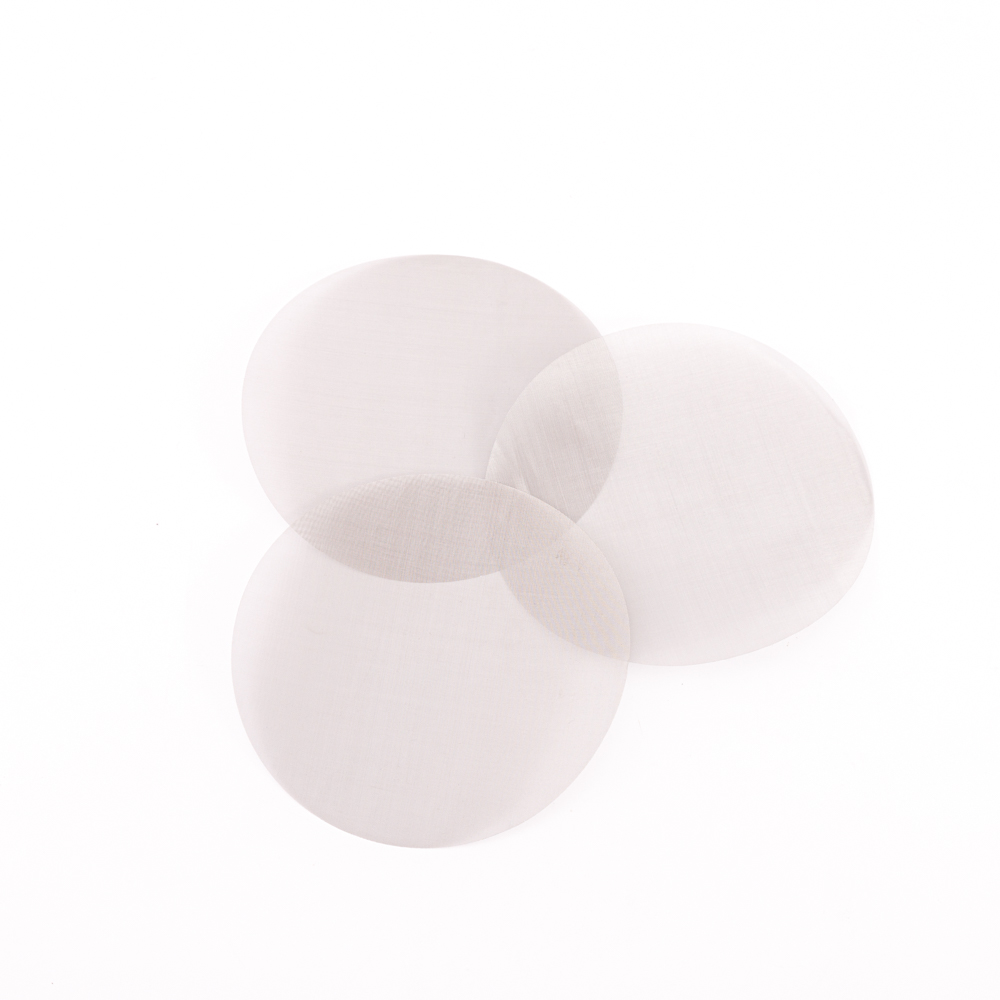

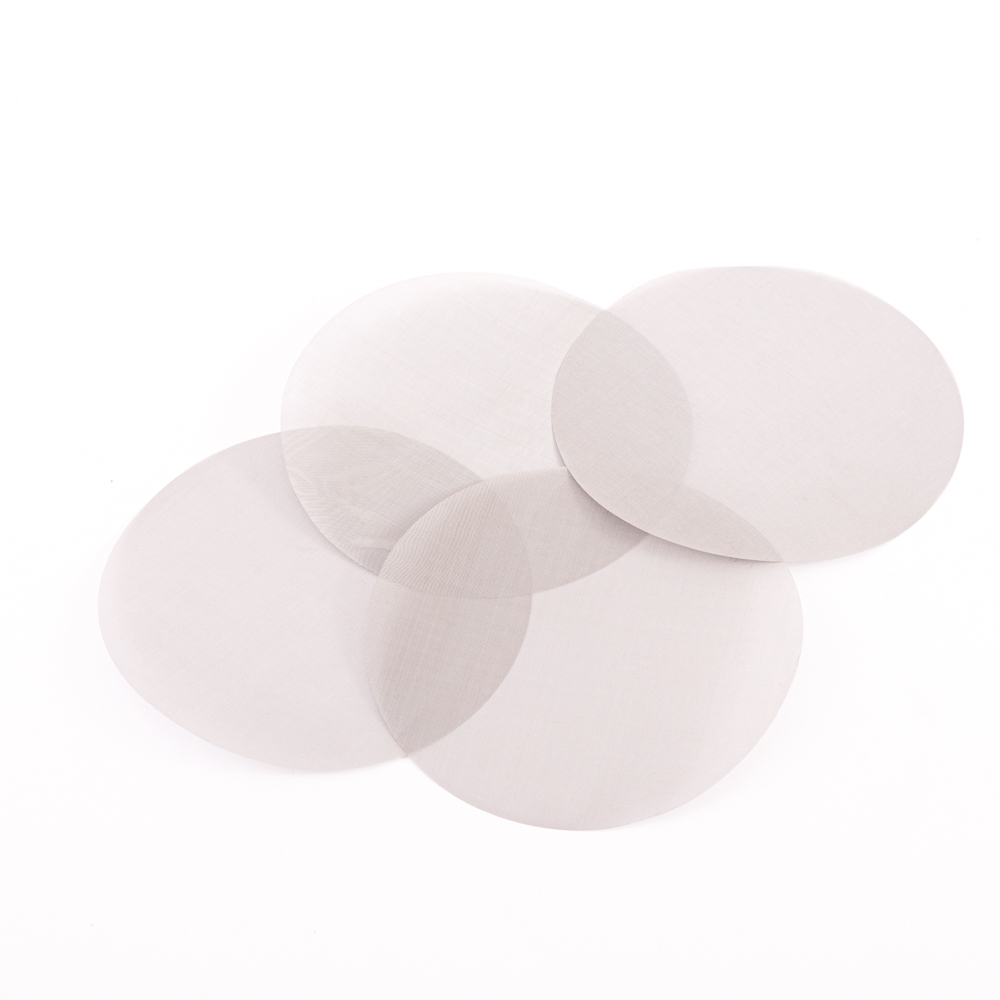

wire mesh filter disc

Stainless steel wire mesh with stainless steel wire woven in accordance with the order oflongitude and latitude, mesh can be according to the size of mesh and wire diameter to distinguish the specifications. The wire mesh filter disc widely used for waste water treatment and some other air filtration .The shape we can do rectangle ,square, round and other shapes .we also support some related woven wire mesh products ,if there is any question about our products ,pls contact us at any time.

                                  Stainless Steel Wire Mesh Specifications

 Wire materials: SUS302, SUS304, SUS304L, SUS310S, SUS316, SUS316L, SUS321, etc.

 Wire diameters: 0.01 mm - 5 mm.

 Disc diameters: 5 mm - 600 mm (custom size: 8 mm - 3800 mm).

 Weaving methods: plain weave, twill weave, dutch weave, etc.

 Layer: single layer or multiple layers.

 Filter disc shapes: round, rectangular, square, crescent and semicircle, etc.

 Marginal materials: copper, aluminum, stainless steel, rubber, etc.

 Filtration precision: 0.2 µm - 100 µm.

Features

Physical properties: high tensile force, high dirt holding capacity, high strength, high pressure resistance, accurate filtration rating, abrasion resistance, good wear resistance, high temperature resistance.

Chemical properties: acid, alkali and corrosion resistance.

Process properties: uniform controlled porosity, long service life, precision punched burr-free, compatible with most fluids, weldable, easy loading and unloading, cleanable and reusable, etc.

FAQ

Q1: Are you factory/manufacturer or trader ?

We are direct factory who owns production lines and workers. Everything if flexible and there is no need to worry about extra charges by the middle person or trader.

Q2 : which countries do you export to ?

We are supporting worldwide customers cause we can export directly .

Q3 : Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q4 : Do you support custom-make service ?

Yes, OEM&ODM service highly welcomed

Q5 : What is your minimum order quantity ?

Actually there is no MOQ for our products .But usually we recommend a quantity based on the price which is easy to accept and trial order also support .

Q6 : How long is your delivery time?

Generally it is 10-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q7: What is your terms of payment ?

100% in advance is preferred for the 1st order.

30% T/T in advance ,70% balance before shipment.

Other payment terms are negotiable .
