Vegetables Hot Air Circulating
9 month ago
Hot Air Circulating Drying Oven for Manganese Dioxide,Black Manganese Hot Air Circulating Drying Oven,Hot Air Circulating Drying Oven for Black Manganese
The radiators can be used for various drying equipment.There are many specifications and kinds.The materials to be used are aluminium alloy stainless steel, A3 steel surface zinc covering,steel and aluminium compound, copper,steel pipe and aluminium winding sheet In addition.the radiators can be used for the heating and dehunidification indoors in the warehouses.Our factory can carry out the design and manufacturing for our users.
Features

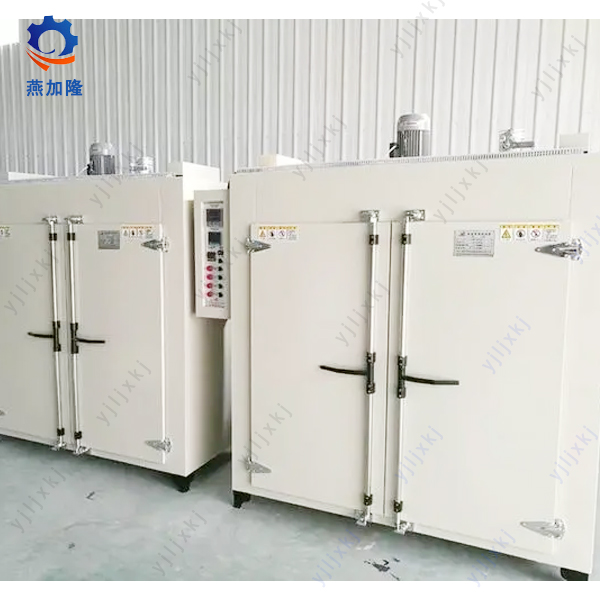

CT-C hot air circulating oven is suitable for various kinds of materials
Most hot air is circulated inside the oven, resulting in high thermal
efficiency
Wide selection of heat source, including steam, heat conduction oil,
electricity, hot water, far infrared
Wide temperature range, from atmospheric temperature to 350℃
Low noise, automatic temperature control, smooth operation, easy installation,
simple maintenance
Technical Specifications of CT-C Hot Air Circulating Oven
|
Model |
CT-C-O |
CT-C-I |
CT-C-II |
CT-C-IIA |
CT-C-III |
CT-C- IIIA |
CT-C-IV |
|
Dried weight per lot(kg/lot) |
60 |
120 |
240 |
240 |
360 |
360 |
480 |
|
Evaporation area(m2) |
7.1 |
14.1 |
28.3 |
28.3 |
42.4 |
42.4 |
56.5 |
|
Radiator area(m2) |
15 |
24 |
48 |
48 |
72 |
72 |
96 |
|
Steam consumption(kg/h) |
15 |
20 |
40 |
40 |
60 |
60 |
80 |
|
Electric heating power(kw) |
6-9 |
15 |
30 |
30 |
45 |
45 |
60 |
|
Fan flow(m2/h) |
3450 |
3450 |
6900 |
6900 |
10350 |
10350 |
13800 |
|
Fan power(kw) |
0.45 |
0.45 |
0.45×2 |
0.45×2 |
0.45×3 |
0.45×3 |
0.45×4 |
|
Temp. tolerance inside oven(℃ ) |
±1 |
±2 |
±2 |
±2 |
±2 |
±2 |
±2 |
|
Outline dimensions(mm) (W×D×H) |
1400×1200×2000 |
2300×1200×2000 |
2300×2200×2000 |
4280×1200×2270 |
2260×3200×2000 |
3240×2200×2000 |
4280×2200×2270 |
|
Auxiliary drying cart(set) |
1 |
2 |
4 |
4 |
6 |
6 |
8 |
|
Auxiliary drying tray (pcs) |
24 |
48 |
96 |
96 |
144 |
144 |
192 |
|
Total weight(kg) |
820 |
1580 |
1800 |
1880 |
2100 |
2210 |
2800 |
