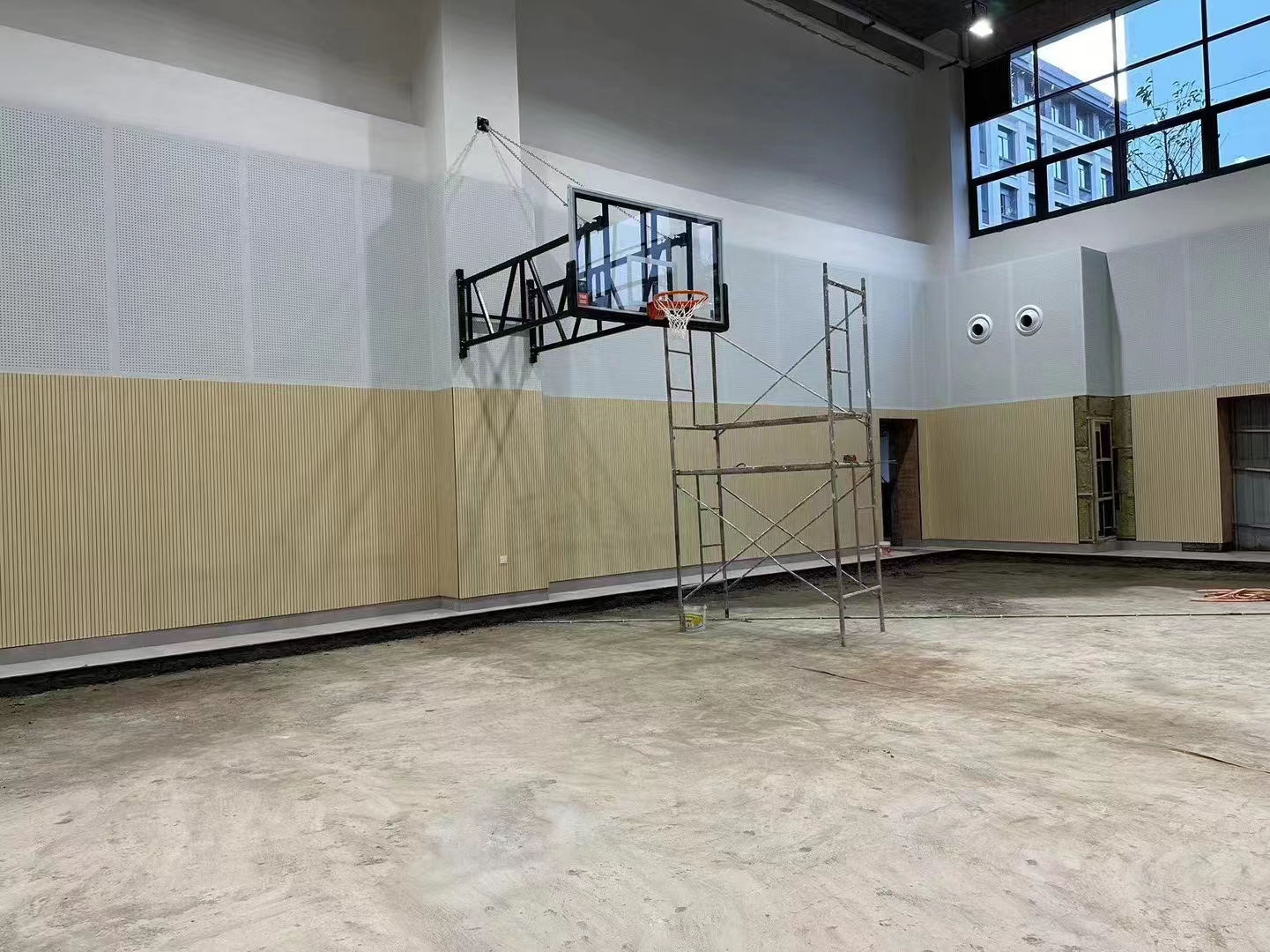

Wall Mounted electric folded basketball stand

Wall Mounted electric folded basketball stands

1.  wall basketball stand technical data and size

According to the actual needs of each venue,  The product has the characteristics of simple structure, convenient

operation, safe and reliable, low noise and so on.

the Basketball backstop is mainly composed of putter motor, safety system, main support, backboard and hoop.

The motor voltage is 220V,

The support is welded by 40*60*3mm、40*40*3mm square tube

The safety system is made by Dia 8mm 304ss chain.

2、wall electric basketball stand  backboard: FIBA approved

3、wall folded basketball stand ring: FIBA approved

The ring is made byh φ18 solid circular steel, and the ring performance is good. When the static load is not

reached to 105kg at the top of the ring, the ring does not turn. When the static load is ≥ 105kg, the ring turns

downward and the angle is not more than 30°. It can effectively solve the problem of the stability of the basket

and the safety of the dunk when the basket is shot.

4.  wall basketball stand fastener

All fasteners of the basket are made of 304 stainless steel and hot galvanized material.
