Product details

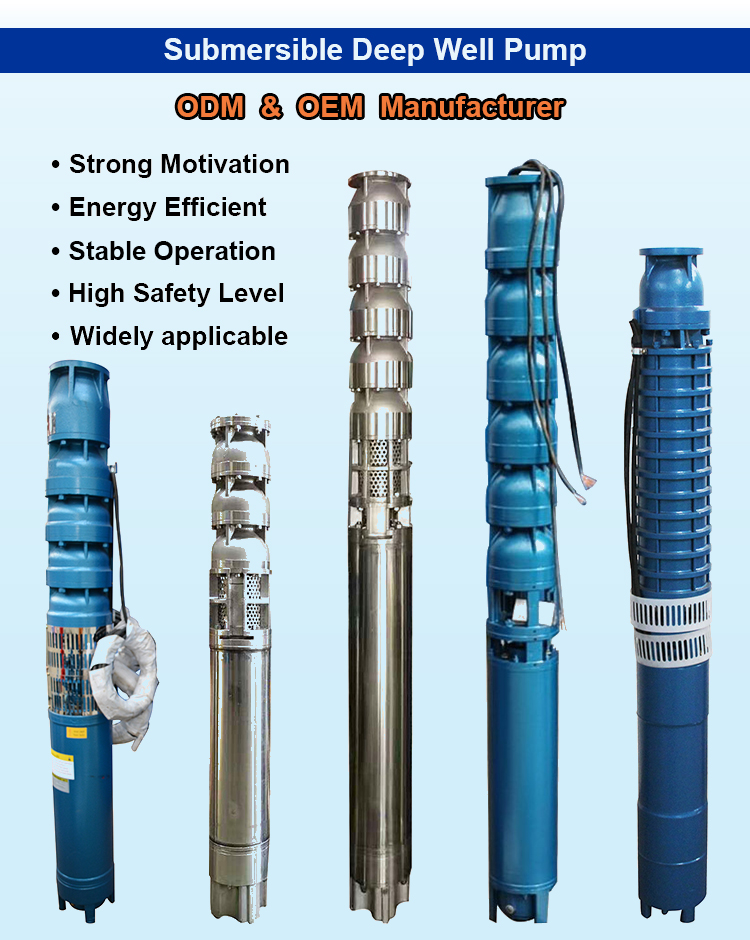

12hp Best Deep Water Submersible Well Pump is a high-efficiency, energy-saving, high-lift submersible pump for submersible work.

The motor is filled with clean water to cool the motor and lubricate the bearings. Polyethylene insulated nylon sheath is used in motor winding, water-resistant electromagnetic wire is used, sand-throwing ring and skeleton oil seal are used in the upper pat of the motor to seal, so as to prevent leakage of internal and external media of the motor. The water pump is a vertical single-stage,multi-stage centrifugal closed impeller, and the guide shell conveys liquid.

In order to solve the problem of different application scenarios and different pumping media, Our Deep Well Submersible Water Pump are available in Cast iron, SS 304, SS 316, SS 316 L, Duplex SS, SS 904 L.

12 hp submersible water pump are mainly used to solve the problem of water intake for customers. The application fields include farmland irrigation, deep well water lifting, mine drainage, emergency rescue, sea water lifting , urban water supply and groundwater sources raised by enterprises.

No matter what submersible borehole pump, our models offer you maximum flexibility. The submersible borehole water pump can be installed vertically, horizontally and even at angles in wells and deep wells.

We test each Submersible water pump before delivery, such as dynamic and static balance testing, material analysis testing, casting testing, and submersible pump submerged in water for 48 hours to test leaking or not.

Technical Parameters

Diameter Inch (")	Model	Power (hp)	Rated Flow (m3/h)	Rated Head (m)
7"	175QJ10-135/10	12	10	135
7"	175QJ10-150/11	12	10	150
7"	175QJ20-91/7	12	20	91
7"	175QJ25-78/6	12	25	78
7"	175QJ32-60/5	12	32	60
7"	175QJ40-48/4	12	40	48
8"	200QJ25-70/5	12	25	70
10"	250QJ50-40/2	12	50	40
10"	250QJ125-16/1	12	125	16
10"	250QJ140-15/1	12	140	15
