The machine is a high-tech filling equipment integrating microcomputerprogrammable control, photoelectric sensing and pneumatic execution. Thismachine is specially used for food, such as Baijiu, soy sauce, vinegar, red wine,vegetable oil, syrup, mineral water and other edible liquid, as well as the filling of pesticide chemical liquid. Accurate filling and metering, no bubbles, no dripping and leakage. It is applicable to the filling of 50-500ml, 100-1000ml, 500-5000ml bottles (including special-shaped bottles) Suitable for filling different types of containers, it can switch filling specifications in a few minutes, with short filling cycle and high production capacity. No need to add spare parts to replace the filling specifications, just to make adjustments can be completed. Users can choose the filling volume according to their own production capacity to determine the number of filling heads, touch-type operation color screen can display the production status, operating procedures, filling methods, etc.The screen is intuitive, simple operation, easy maintenance. Each filling head is equipped with a bottle-neck setting to ensure accurate injection alignment. The design uses a straight-line method of grouping bottles-in and bottles-out to expand the filling function. Containers of various shapes can be filled effectively in this equipment. The international advanced gas filling valve isselected to ensure no leakage or drooling in the filling process. The powerful PLC software supports the ideal filling operation and man-machine interface. All operations are completed on the touch screen. Filling uses fixed runner parameters to control the filling time to achieve different metering filling. The precise time for pneumatic valve filling can be set to 0.01 seconds, which can enable the measurement accuracy to be controlled within #1% error range, reduce unnecessary material loss, and improve user economic efficiency. The metering of each filling head can be individually adjusted to achieve consistent filling metering.The machine has set the bottle entry technology program, and no bottle or no counting is not filled.The filling is only started when the number of bottles recorded by the counter matches the set number of filled bottles.

The amount of filling can be adjusted to the required amount of filling, and then fine-tuning, you can get the ideal filling measurement accuracy.

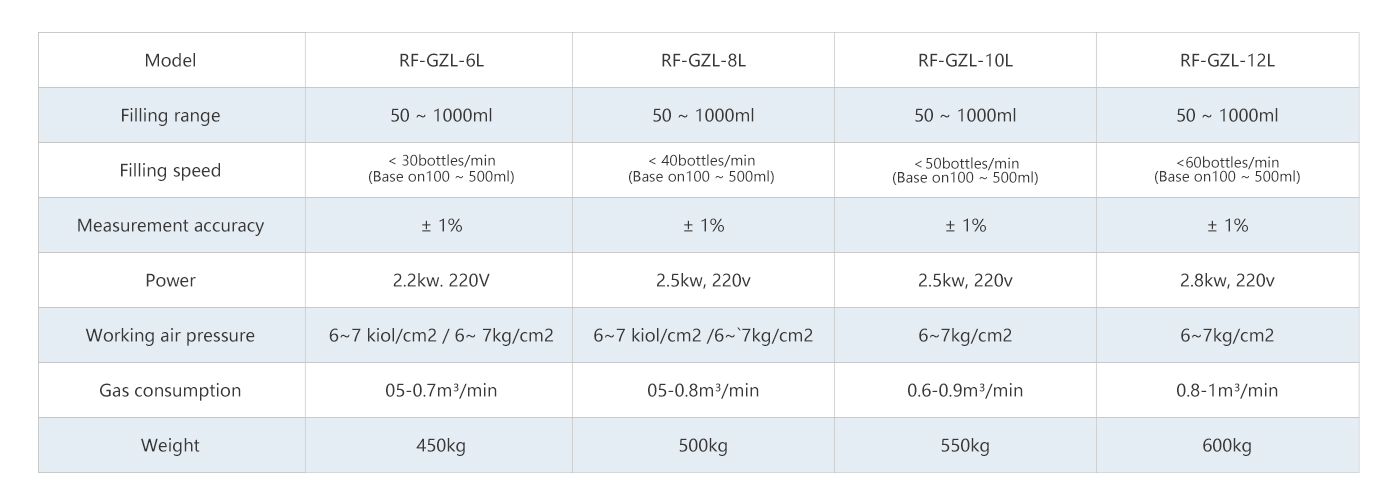

Note: Filling range and speed can be designed according to user needs todifferent filling heads.gITnew
