Product details

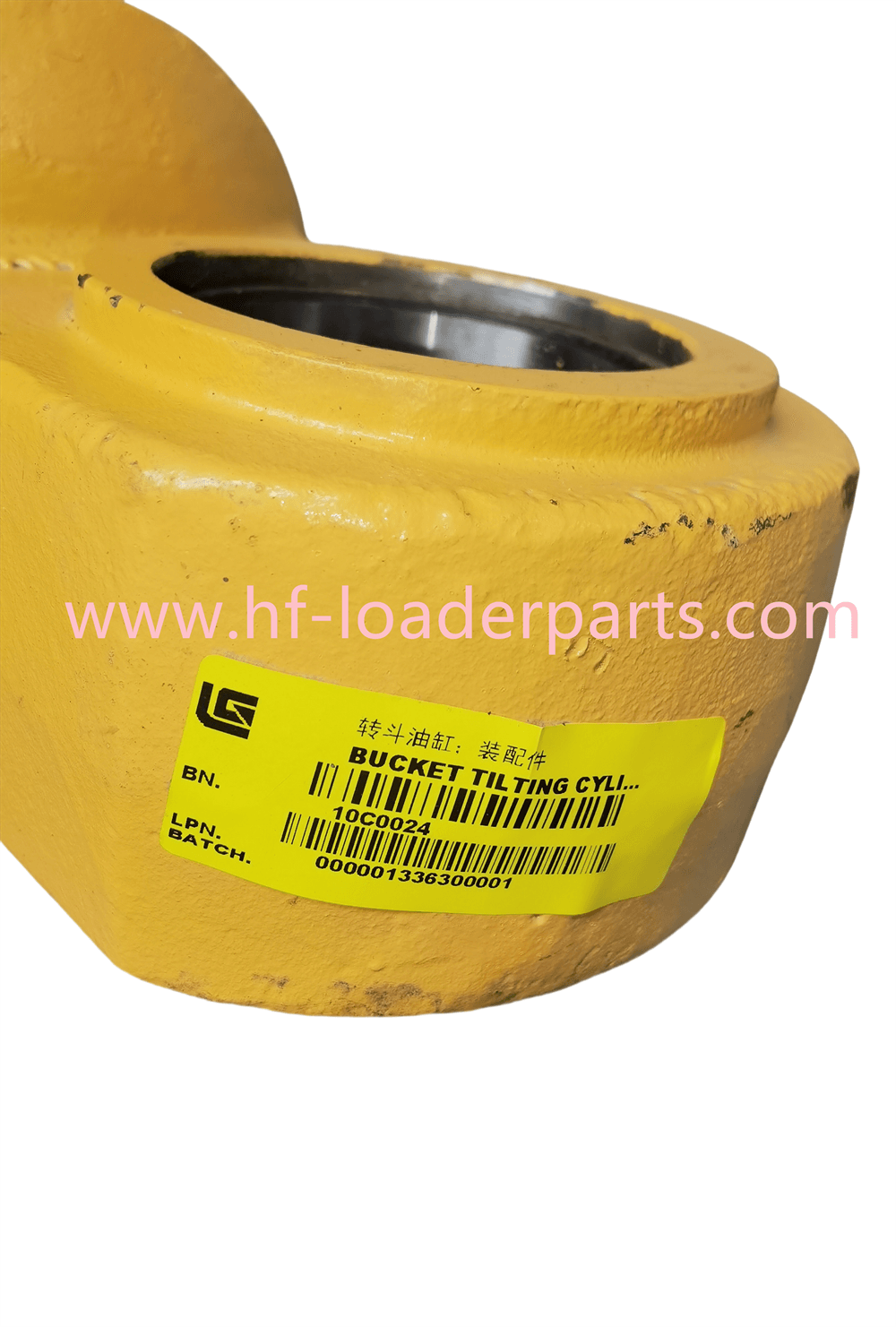

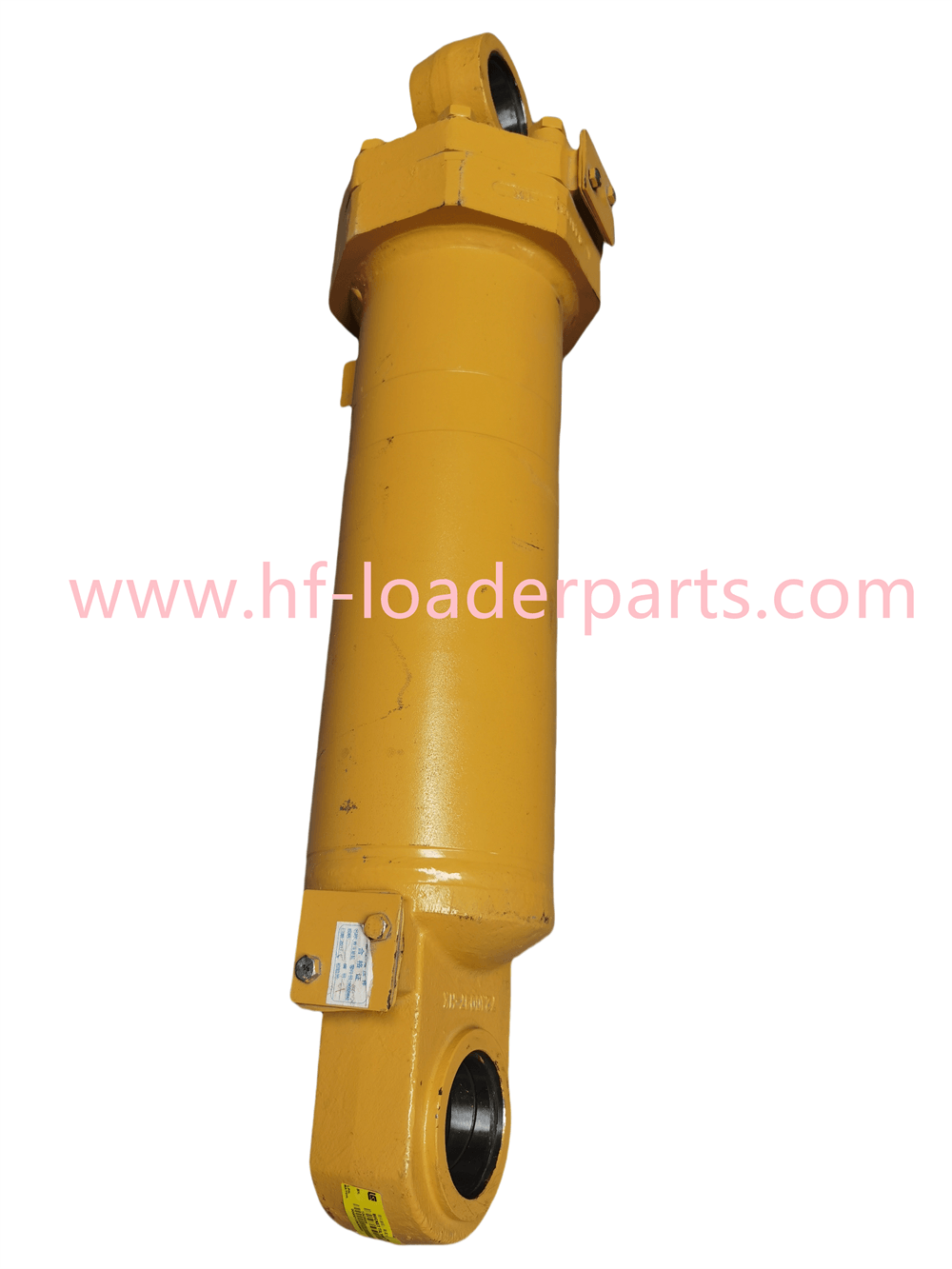

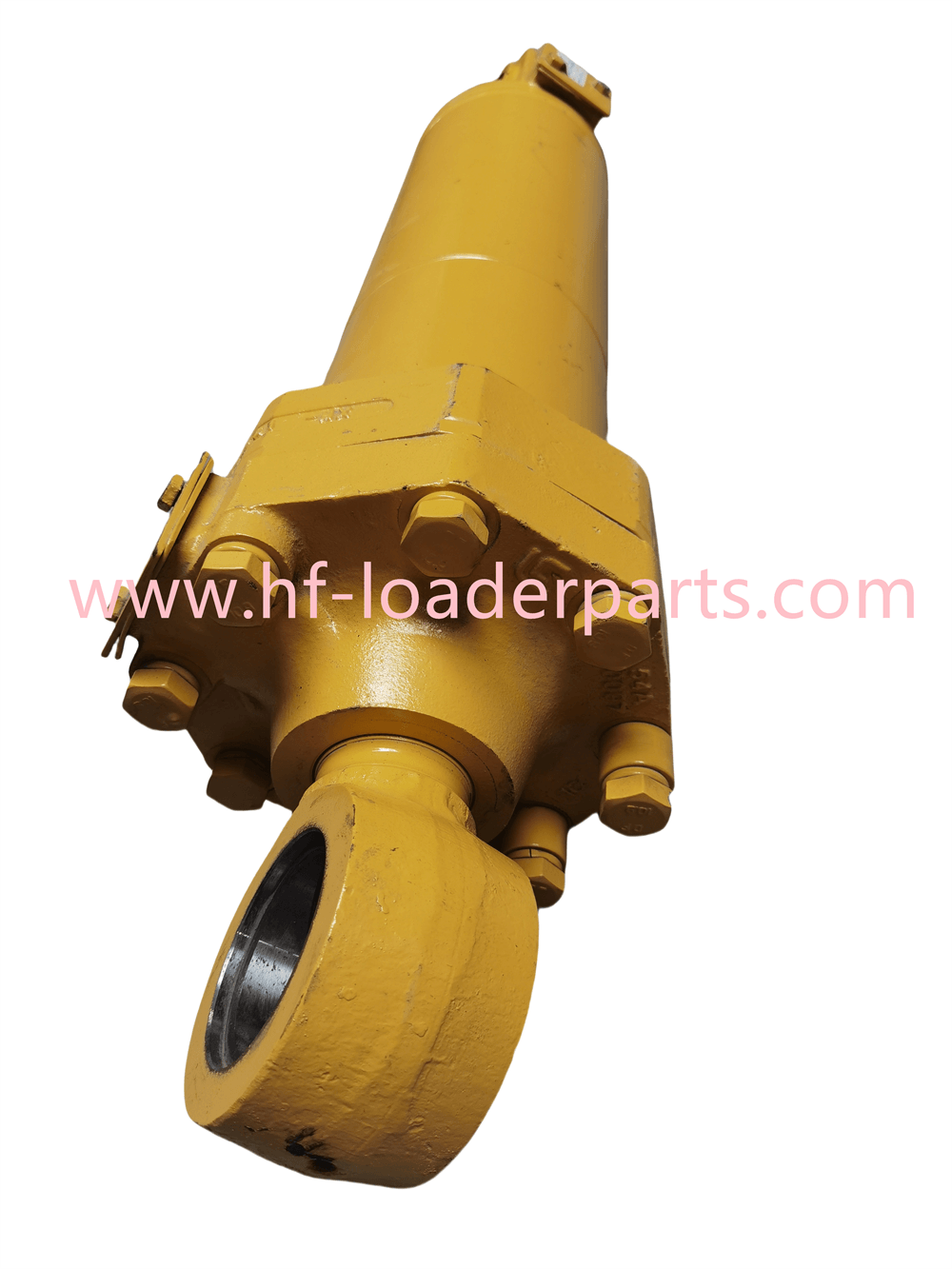

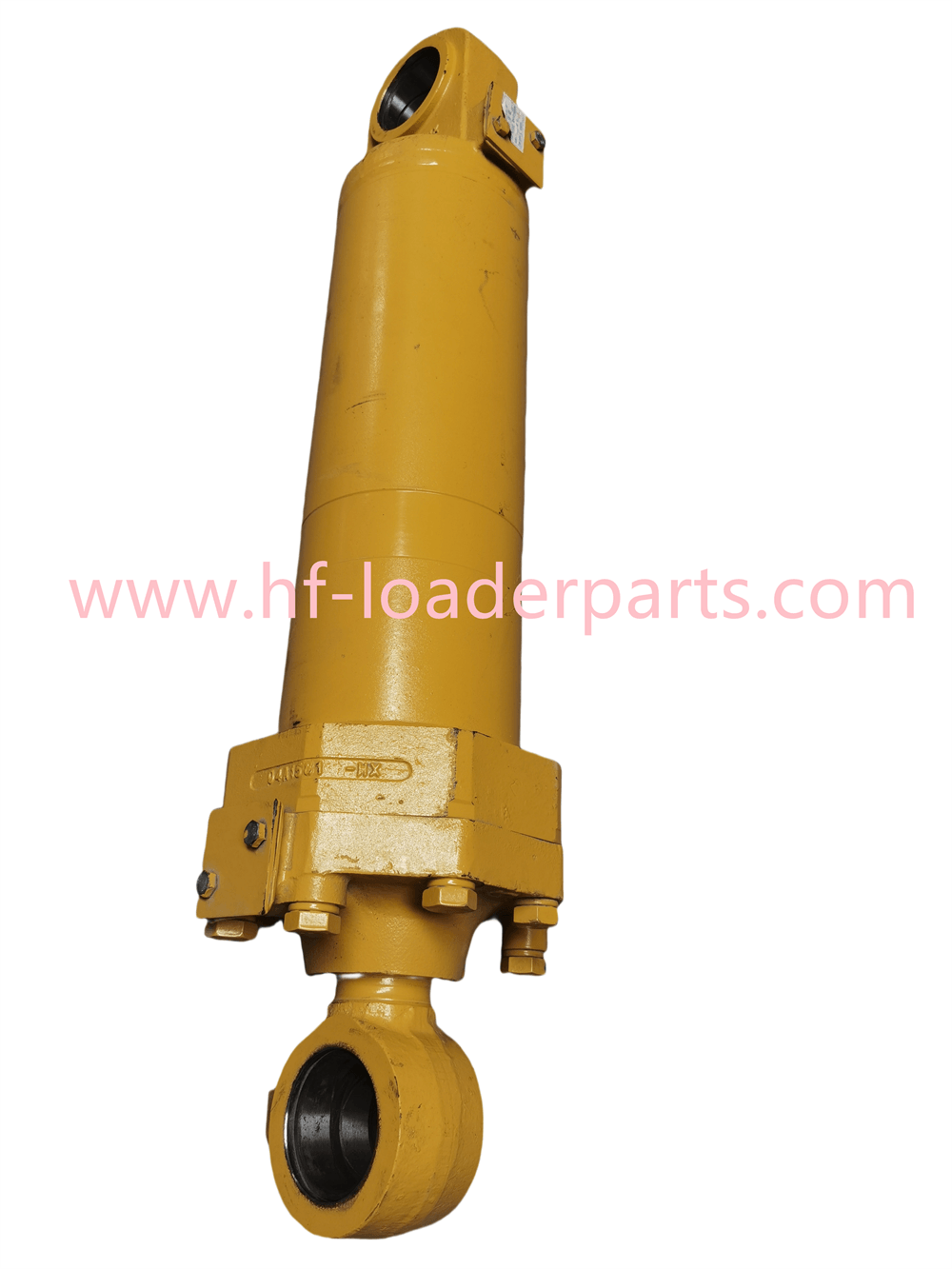

Original Liugong 856 852 Bucket cylinder 10C0024，Original Liugong 856 cylinder，The bucket cylinder is used to accurately control bucket loading and unloading, improving the working efficiency of the loader.The structure and working principle of the loader cylinder

The structure and working principle of the loader cylinder mainly involve the basic structure and working mode of the hydraulic cylinder, as well as the specific application of the hydraulic cylinder in the loader. ‌

Structural composition: The basic structure of the loader cylinder includes a cylinder barrel and a cylinder head, a piston and a piston rod, a sealing device, a buffer device and an exhaust device. The cylinder barrel and the cylinder head are used to seal the inside of the cylinder to form a pressure space; the piston and the piston rod make linear reciprocating motion inside the cylinder through the sealing device to realize energy conversion; the buffer device is used to reduce the impact when the piston moves to the end of the cylinder to protect the machine from damage; the exhaust device is used to remove the air that may be mixed into the cylinder to ensure the normal operation of the hydraulic system. ‌

Working principle: The loader cylinder is powered by the hydraulic system, converting hydraulic energy into mechanical energy to realize various actions of the loader. The output force of the hydraulic cylinder is proportional to the effective area of the piston and the pressure difference on both sides. By controlling the flow direction and pressure of the hydraulic oil, the movement direction and speed of the piston can be changed, thereby realizing various operating actions of the loader. ‌

Application features: The design of the loader cylinder takes into account the stability and durability of the machine. Especially when dragging a large load at high speed, a buffer circuit needs to be set in the hydraulic transmission system to avoid excessive mechanical collision at the end of the stroke, which may cause damage to the hydraulic cylinder. ‌In addition, the sealing performance of the loader cylinder is crucial to prevent hydraulic oil leakage. Good sealing performance ensures the normal operation and power transmission of the hydraulic cylinder. ‌

In summary, the structure and working principle of the loader cylinder involve the conversion process of hydraulic energy into mechanical energy. Through precise design and manufacturing processes, the efficient, stable and safe operation of the loader is ensured. Original Liugong 856 852 Bucket cylinder 10C0024

Original Liugong 856 852 Bucket cylinder 10C0024
