TUSEN Sealer KS-13
10 month ago
- Hot Sealing and Sewing Process:
- 1.Bag mouth cleaning (optional)
- 2.Cutter trimming bag mouth
- 3.Sewing the outer bag with a sewing machine
- 4.Hot melt adhesive tape application
- 5.Inner bag heat sealing (heated by 4 sets of heating blocks)
- 6.Roller compression

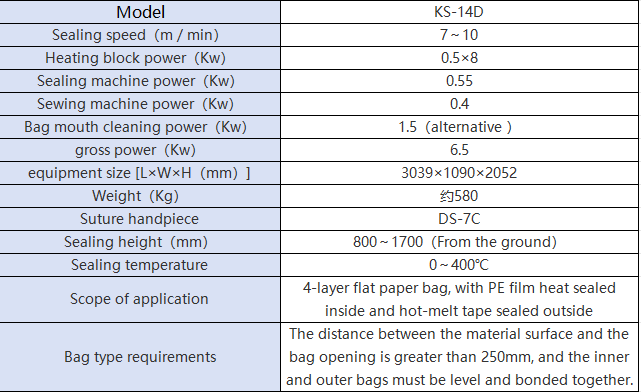

- Machine Type: KS-14D
- 1.Sealing Speed: 7 ~ 10 m/min
- 2.Heating Block Power: 0.5 x 8 Kw
- 3.Sealing Machine Power: 0.55 Kw
- 4.Sewing Machine Power: 0.4 Kw
- 5.Cleaning Power: 1.5 Kw (Optional)
- 6.Total Power: 6.5 Kw
- 7.Equipment Size: 3039 * 1090 * 2052 mm (Length × Width × Height)
- 8.Weight: About 580 Kg
- 9.Stitching Head: DS-7C
- 10.Sealing Height: 800 ~ 1700 mm (above ground)
- 11.Seal Temperature: 0 to 400 °C
- 12.Scope of Application: Suitable for 4-layer flat paper bags, with PE film heat-sealed inside the bag and hot melt tape applied outside.
- 13.Bag Type Requirement: The material surface must be more than 250mm away from the bag mouth. The inner and outer bags must be flush and securely glued together.

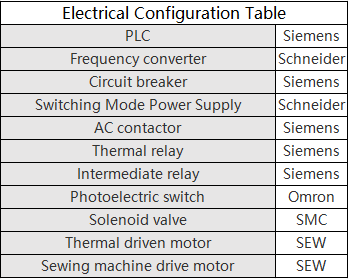

- Electrical configuration:
- 1.PLC: Siemens
- 2.Variable Frequency Drive (VFD): Schneider
- 3.Circuit Breakers: Siemens
- 4.Switch Power Supply: Schneider
- 5.AC Contactors: Siemens
- 6.Thermal Relays: Siemens
- 7.Intermediate Relays: Siemens
- 8.Photoelectric Switches: Omron
- 9.Solenoid Valves: SMC
- 10.Heat Sealing Drive Motor: SEW
- 11.Sewing Machine Drive Motor: SEW
