Borehole Deep Well Water Pump For Sale

Borehole Deep Well Water Pump Description

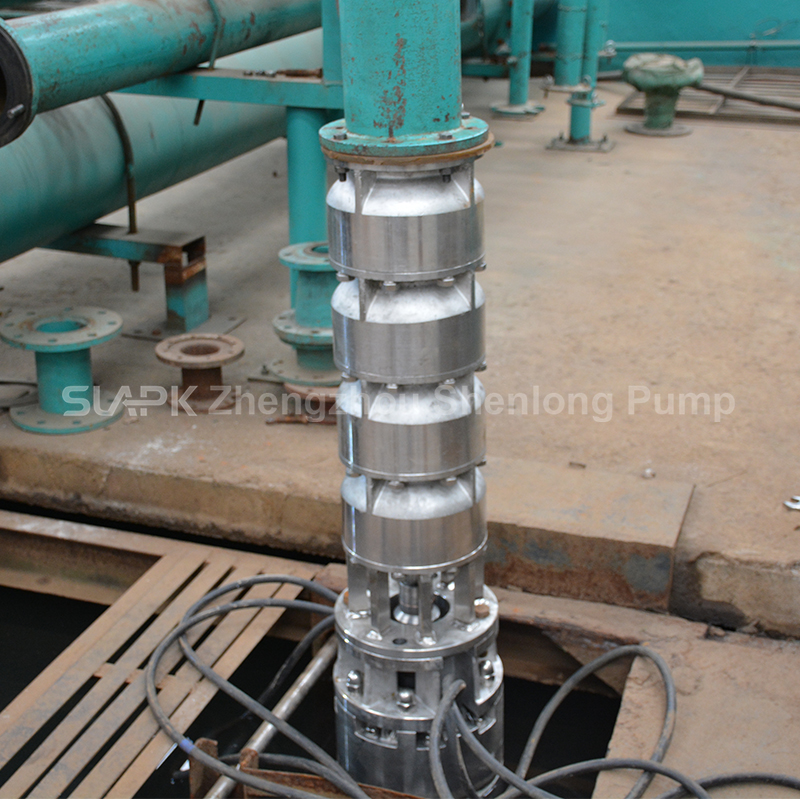

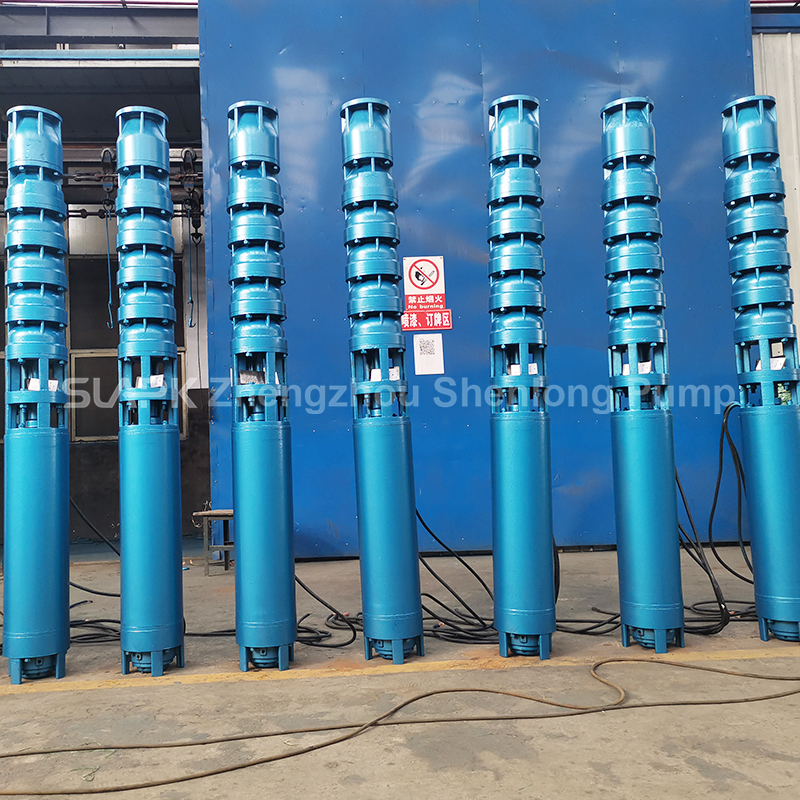

The Deep Well Submersible Pump is a kind of energy efficient water lifting tool with integrated motor and pump, submerged in the water. The Submersible motor is a water-filled wet squirrel-cage three-phase asynchronous motor, and the internal part is filled with clean water for cooling the motor and lubricating the bearings. The motor winding is made of polyethylene insulated nylon sheathed water-resistant electromagnetic wire, and the upper part of the motor is sealed with sand flinging ring and skeleton oil seal to prevent leakage of medium inside and outside of the motor, and the Submersible Water Pump is a single/multi-stage centrifugal closed-type impeller with a deflector casing for conveying liquid.

Our Submersible Borehole Pumps support ODM & OEM customization，and are available in Cast iron, SS 304, SS 316, SS 316 L, Duplex SS, SS 904 L.

We test each Submersible Borehole Pumps before delivery, such as dynamic and static balance testing, material analysis testing, casting testing, and submersible pump submerged in water for 48 hours to test leaking or not.

Borehole Deep Well Water Pump Technical Parameters Part of parameters, for reference only.

Diameter Inch (")	Model	Power (hp)	Rated Flow (m3/h)	Rated Head (m)
7"	175QJ10-135/10	12	10	135
7"	175QJ25-130/10	20	25	130
7"	175QJ50-48/4	15	50	48
8"	200QJ20-65/5	10	20	65
8"	200QJ50-195/15	60	50	195
8"	200QJ80-66/6	30	80	66
10"	250QJ63-160/8	60	63	160
10"	250QJ80-140/7	75	80	140
10"	250QJ140-30/2	25	140	30
12"	300QJ200-60/3	75	200	60
