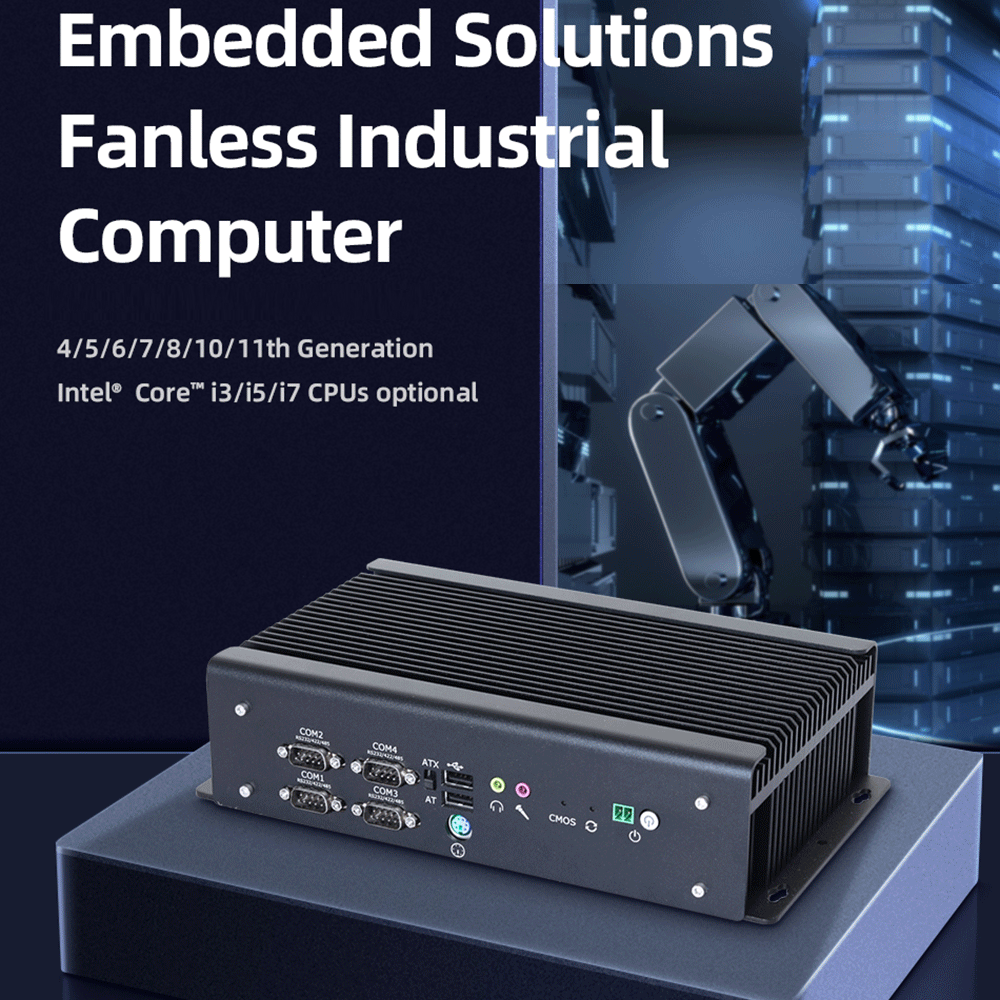

Fanless industrial Computer

This is a rugged fanless mini industrial PC, designed specifically for the demanding requirements of industrial automation environments. The industrial mini computer is equipped with the latest Intel processors, such as i5 10200H, i7 10870H, i7 1165G7, and i7 1195G7, which ensures high performance and efficiency but a low power draw in any industrial setting.

This industrial mini PC has a robust connectivity capability, featuring dual ethernet ports for stable wired network connections, essential for real-time data exchange and control systems; built-in Wi-Fi capability for easy wireless connectivity, enabling remote access and management without the constraints of physical cables; as well as supporting 3G/4G LTE connectivity, ensuring robust, high-speed Internet access even in areas with limited infrastructure.

To cater to diverse operational needs, this mini PC comes equipped with ten GPIO pins, allowing direct interaction with external hardware components, such as sensors and actuators, crucial for automation tasks.

In addition, three HDMI ports ensure simultaneous connection to three displays, enhancing visual feedback and monitoring capabilities in industrial environments.

Product Details

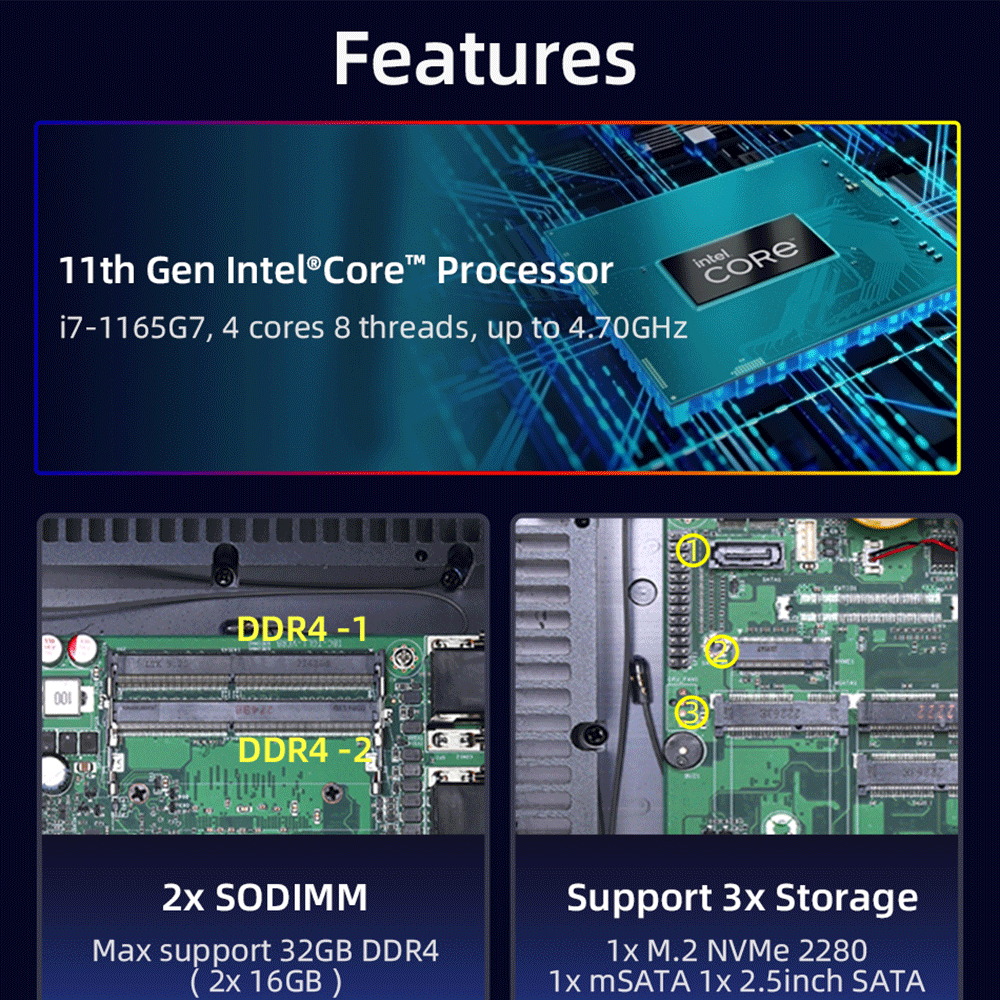

CPU: Intel Core i5 10200H / Intel Core i7 10870H / Intel Core i7 1165G7 / Intel Core i7 1195G7
Graphics Card:

Memory(RAM):

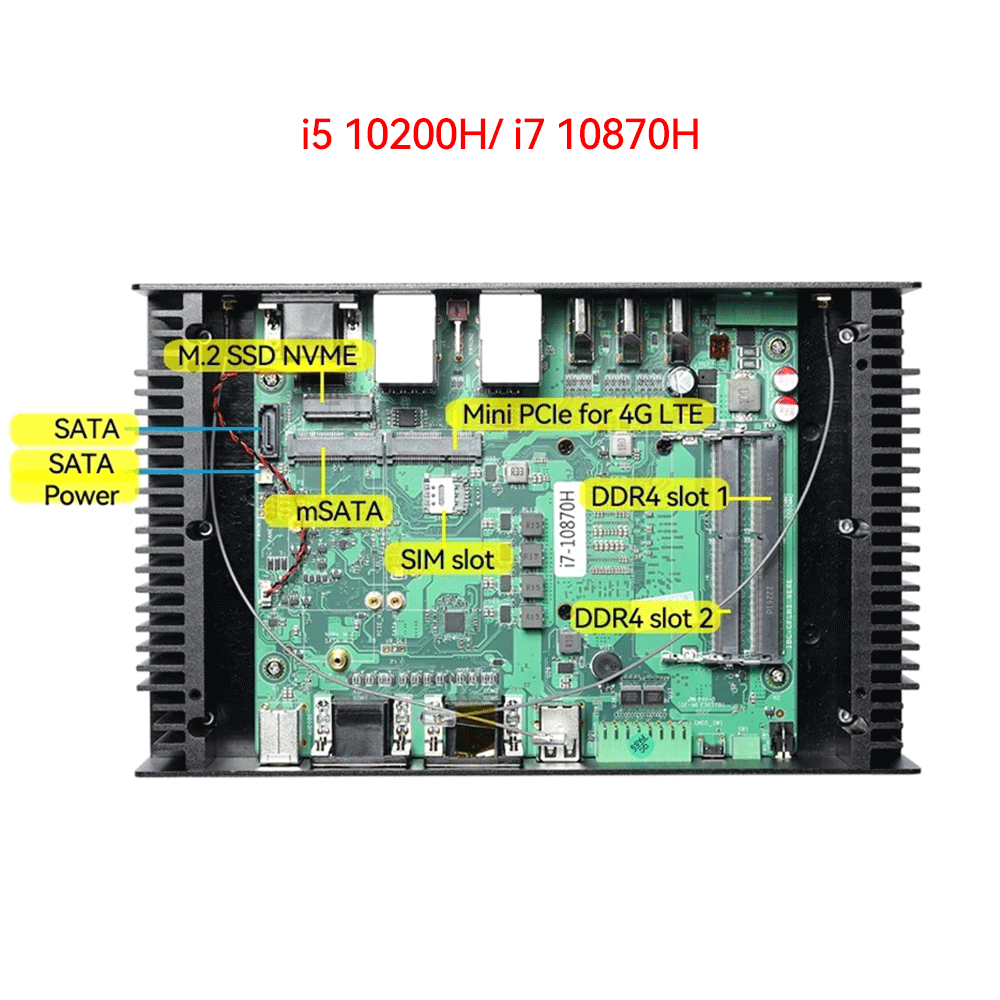

Hard Disk(SSD): 1x M.2 NVME 2280+1x 2.5" SATA SSD/ HDD

I/O Ports:

             -------------------------------------------------------------------

                 1*Power Button,
                 1*2Pin Terminal for remote switch
                 1*Clear CMOS

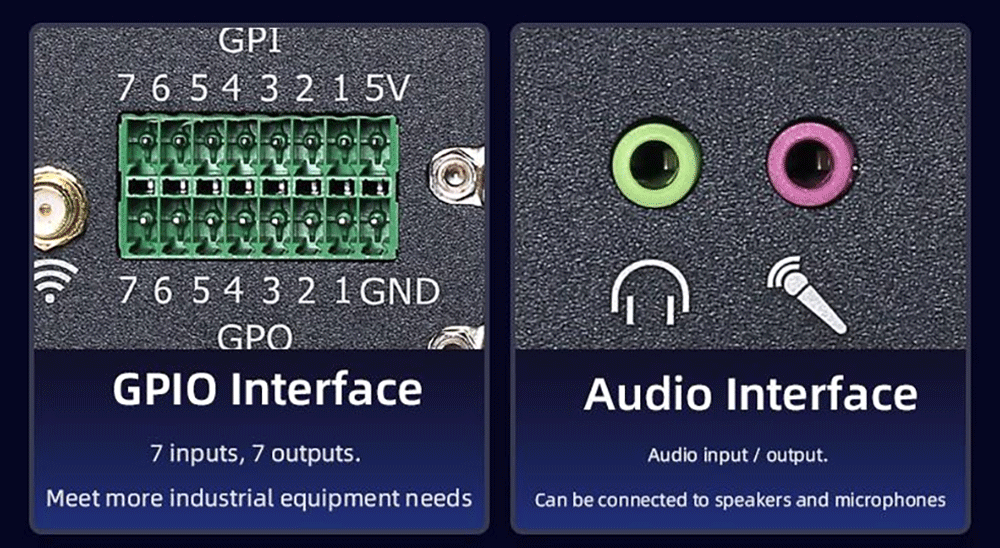

                 14*GPIO(7*Input+7*Output)
                 2*USB 2.0, 4*USB 3.0

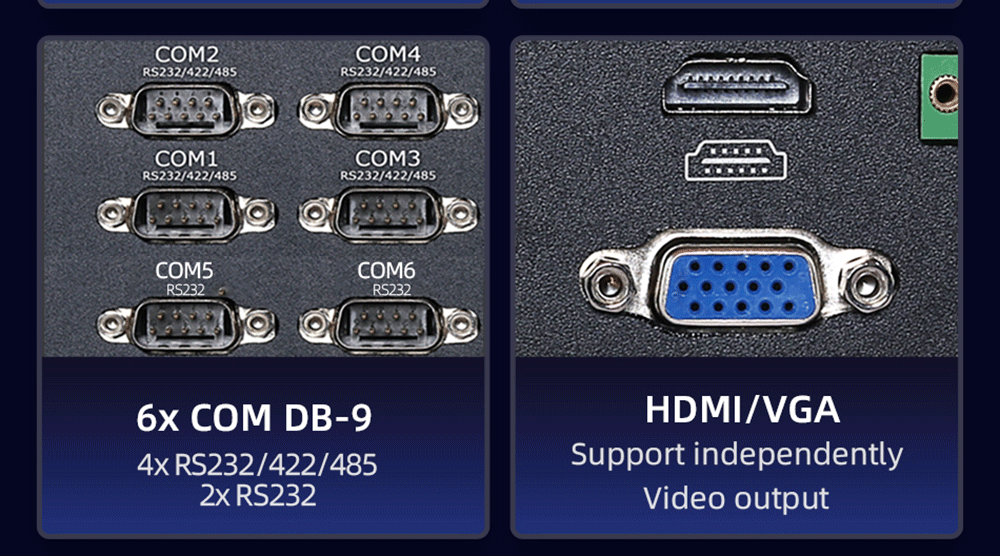

                 4*RS232 /RS422/ RS485, 2*RS232                              (i5 10200H, i7 10870H)
                 1*Audio(1*SPK+1*MIC), 2*LAN
                 3*HDMI

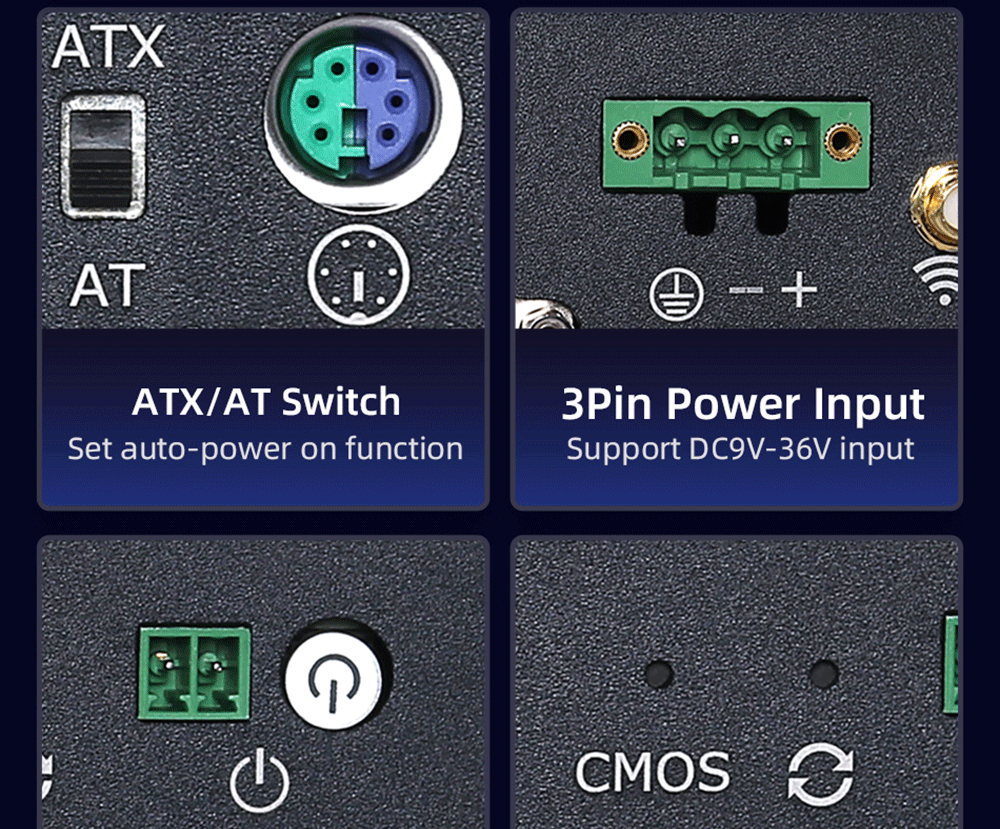

                 1*3Pin Phoenix terminal(9-36V)

Note:  Support 1*VGA+1*HDMI with Dual-line Synchronous or Independent display (i7 1165G7, i7 1195G7)

           Support 3*HDMI with Three-line Synchronous or Independent display(i5 10200H, i7 10870H)

Ethernet port: 2 x RJ45 Intel i225V/ i226V GbE
WIFI: Module with dual antennas(Or five)

Audio: Realtek ALC662 Audio Control Chip, 2 Channels, Stereo, Line out

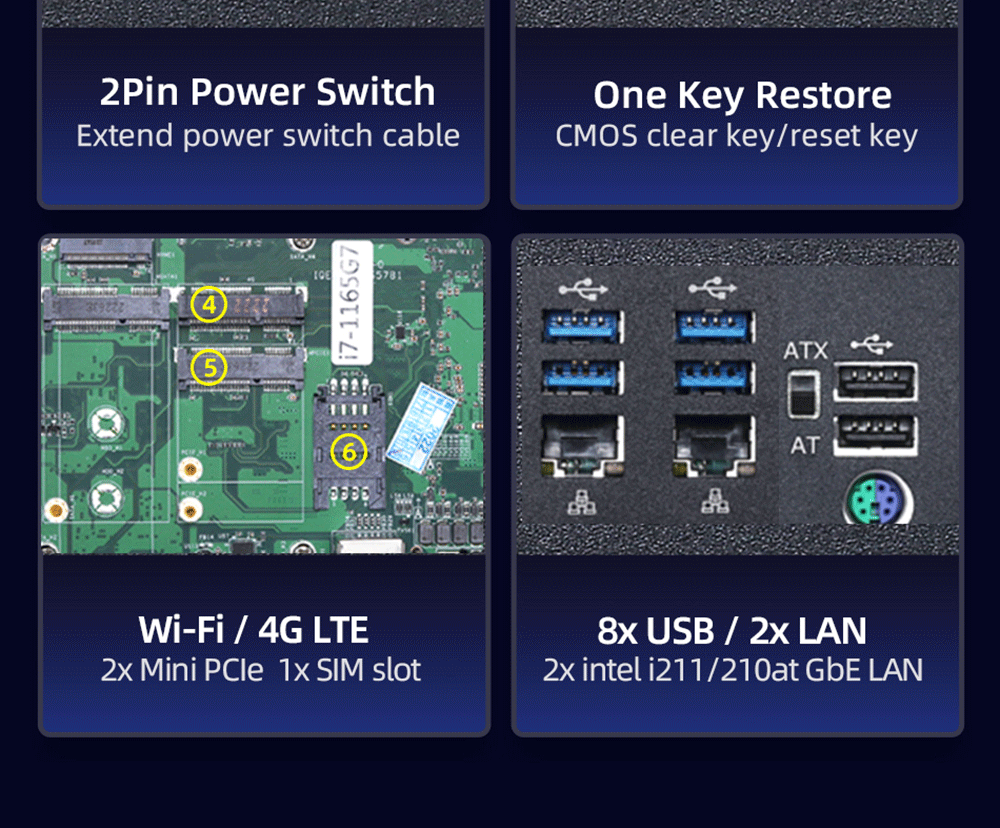

Extension: 1* Half-height Mini PCIe, support WIFI or WiFi & BT.

                    1* Full-height Mini PCIe(with SIM card slot) , support WIFI, WiFi & BT,or 3G/4G.

                    1* I/O (LPC/USB/PCIE) can be extended on the motherboard.

Power: Input: AC 100-240V 50-60Hz, Output: DC 19V 4.7A/ 89.3W (AC to DC, 100~ 240V)
OS Supported: windows 11, windows 10, Linux, Ubuntu, Openelec, etc.
Features: Support Watchdog Timer Hardware& Software(Customized), Wake UP on LAN, S5 RTC Wake Settings(Power on at a set time), PXE Boot, Restore on AC power loss(Auto Power on).

Cooling System: Fanless passive cooling with heat sink
Chassis Material: Aluminum Alloy
Operating Temperature: -20~60℃
Storage Temperature: -30~70℃(15℃-35℃  Recommended)
Relative Humidity: 10%~90% (without condensation)
Dimensions: 264*150*65mm

Equipped with Intel Core i5 , i7, 2x 2.5GbE RJ45,6x COM ports(2 RS232 +4*RS232 /RS422/ RS485), this mini industrial PC offers

an ideal solution for industrial automation.

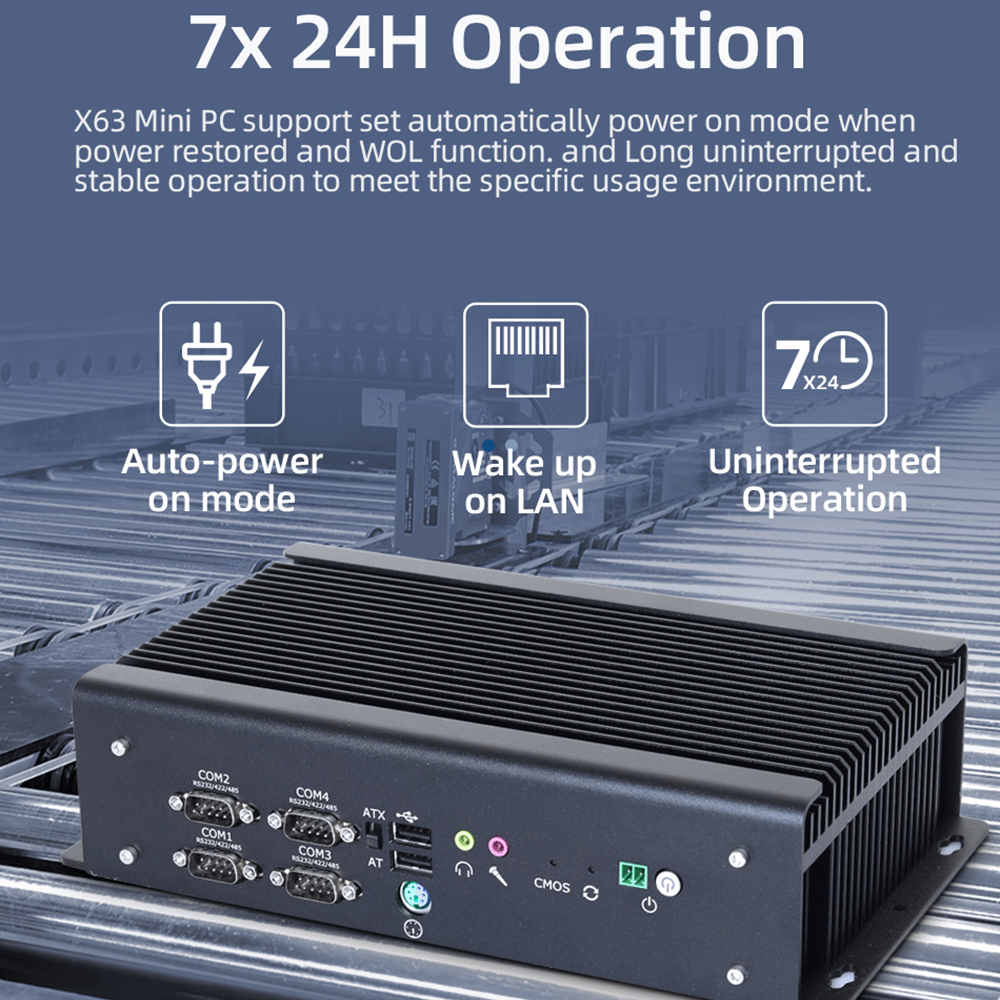

This mini industrial computer supports auto power-on mode when power is restored and wake-up-on-LAN.
It supports 7x 24 hours of uninterrupted and stable operation to meet specific industrial needs.

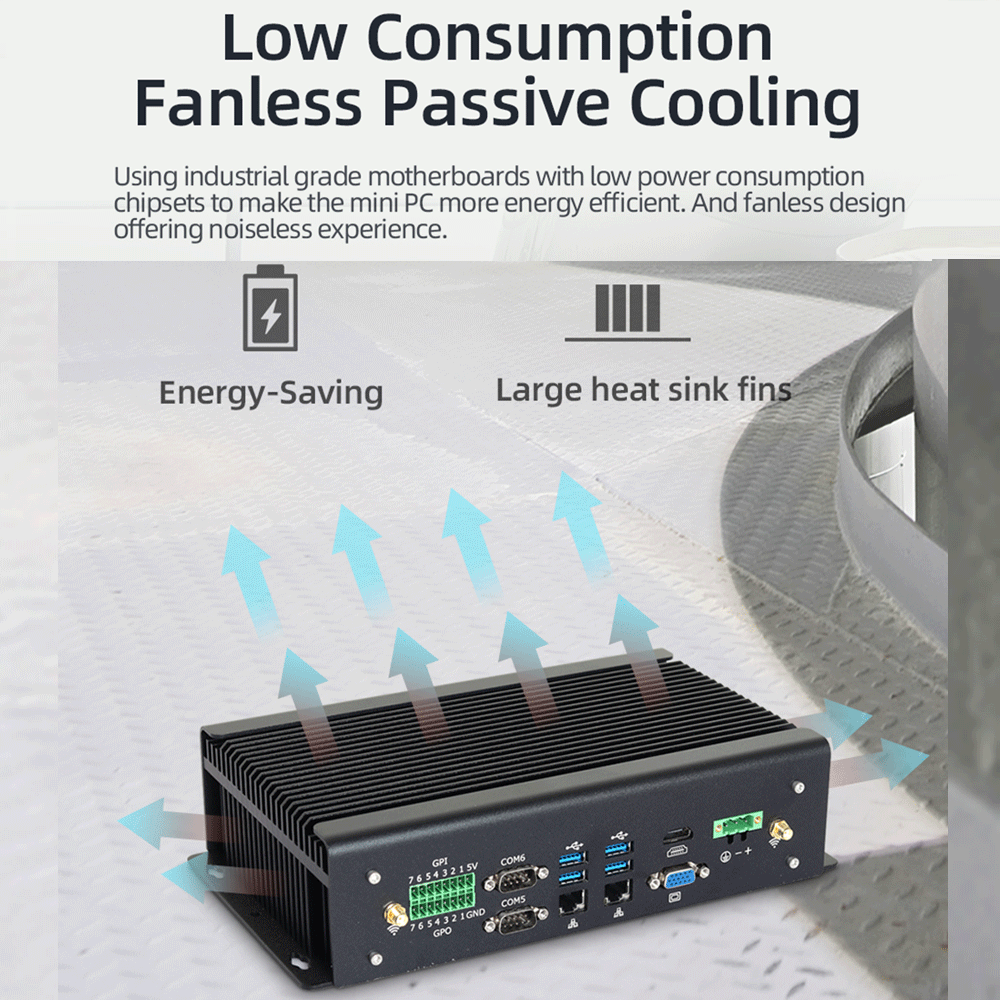

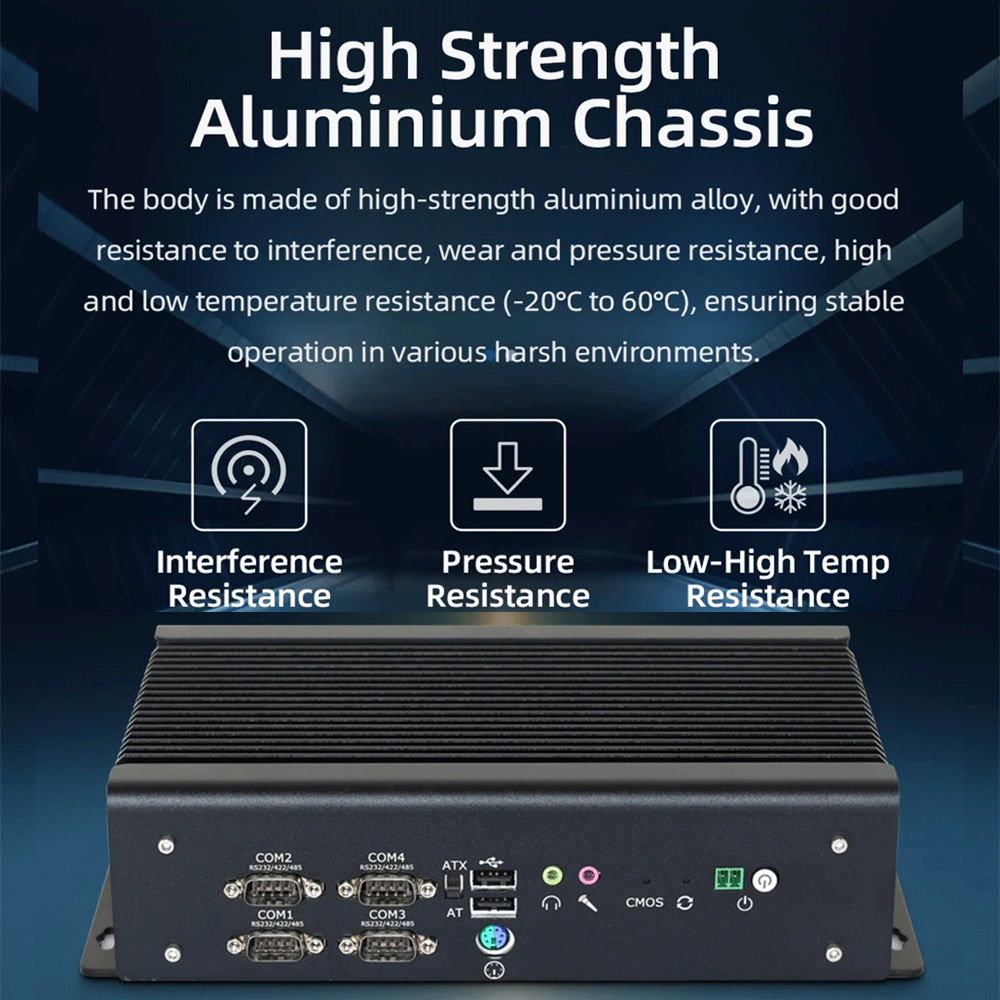

The rugged and durable aluminum alloy shell permits heat dissipation to keep the inside motherboard cool.
The fanless design avoids the accumulation of dust inside and makes the industrial PC work silently.

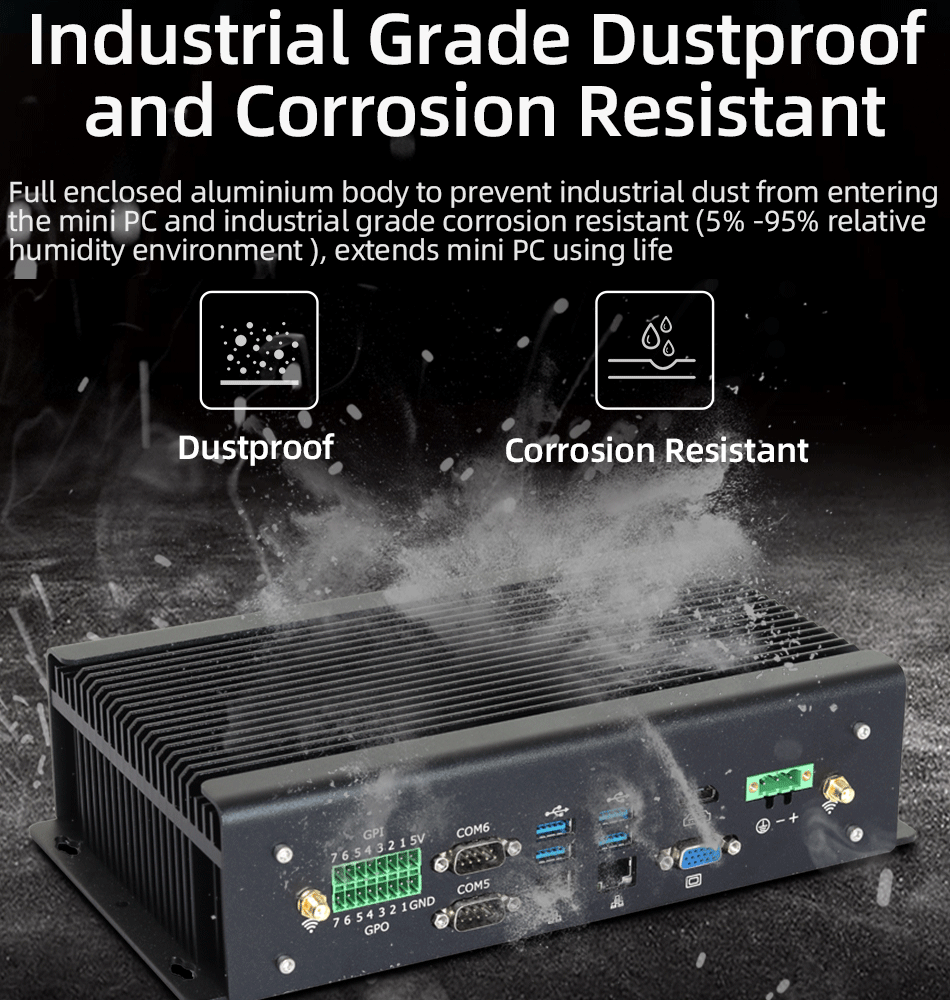

A fully enclosed aluminum body prevents industrial dust from entering the mini Pc. The material has industrial-grade corrosion resistance properties,
enabling it to work in a 5% -95% relative humidity environment to expand its lifespan.
