GL-15322 tensioner for curtainsider

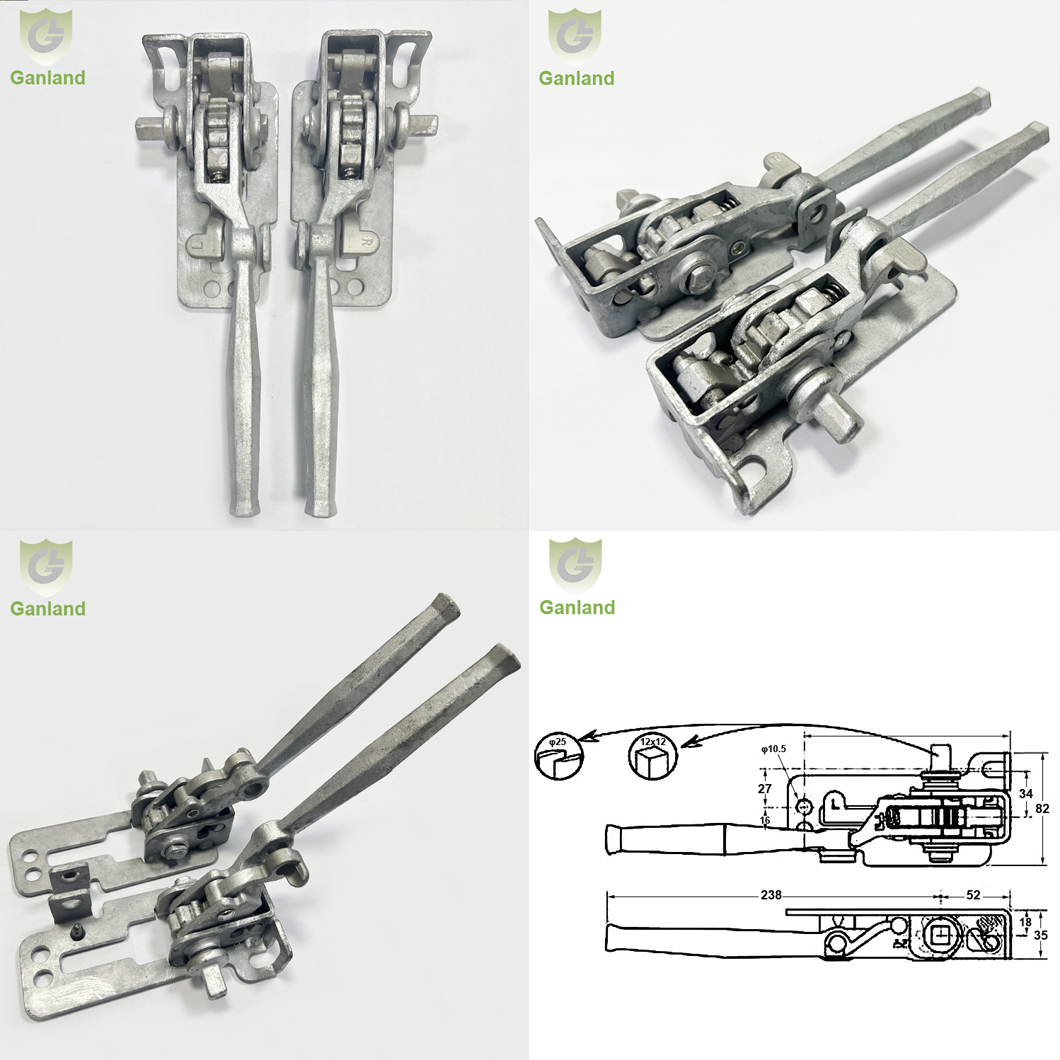

Premium Heavy-Duty Curtainside Trailer Curtain Tensioner GL-15322

The GL-15322 is an industrial-grade gear-driven curtainside tensioner kit, specifically engineered for commercial vehicles, tautliner trailers, and curtainside trucks. This dual-sided tensioning mechanism (supplied as a left-hand and right-hand pair) provides the mechanical force required to pull vehicle curtains incredibly tight, ensuring load stability and aerodynamic efficiency during transit. For commercial vehicle body builders, logistics operators, and trailer repair centers, this robust hardware system represents the industry standard in structural durability and ease of operation.

Mechanical Advantage: Precision Gear-Driven System

The primary functional benefit of this heavy-duty tautliner tensioner is its high-torque integrated gear and pawl mechanism. Unlike simple manual straps that are difficult to tighten uniformly, this curtain side gear tensioner utilizes a heavy-duty cast cog and safety release pawl. When the extra-long leverage handle is rotated, the internal gears wind the curtain tube smoothly, multiplying human physical input into massive physical tension.

The spring-loaded safety locking pawl instantly engages with the gear teeth after each rotation, completely eliminating the risk of accidental slippage or de-tensioning on rough roads. When unloading, releasing the pawl enables a fast, effortless unwind, maximizing efficiency at busy delivery bays.

Rugged Manufacturing & Weather Protection

Operating on the exterior side walls of commercial transport trailers exposes hardware to constant mechanical strain and destructive weather. The GL-1322CD is built to withstand these demands effortlessly:

• Forged Steel Chassis: Constructed from high-density forged structural steel, preventing housing distortion, frame bending, or gear teeth stripping under immense tension.

• Thick Zinc Plating: Treated with a comprehensive hot-dip or heavy-gauge zinc finish. This chemical barrier shields the core steel from oxidation, rain, melting ice, and destructive highway de-icing salts, guaranteeing long-lasting mechanical performance.

• Square Bar Drive Compatibility: Features standard machined square driving sockets designed to fit seamlessly over existing curtain side winding rollers and vertical poles.

Key Technical Features and Structural Specifications:

• Complete Left & Right Hand Kit: Delivered as a matching pair to handle the distinct winding directions required for the forward and rear tensioning points of the trailer body.

• Ergonomic High-Leverage Handle: The extended, contoured handle assembly provides excellent manual grip, reducing driver fatigue and allowing for optimal torque generation even while wearing heavy work gloves.

• Pre-Drilled Pillar Mount Layout: Designed with precision-aligned top and side mounting holes to facilitate fast, secure bolt-on installation onto standard trailer corner posts or structural side pillars.

• Low Profile Engineering: Maintains a tight, compact installation depth against the truck frame, preventing side panel overhang and minimizing wind resistance.
