Aloe vera Extract Spray Dryer,Hawthorn Leaf Extract Spray Dryer,Ginkgo Leaf Extract Spray Dryer,Ginkgo Biloba Extract Spray Dryer,Poria Cocos Powder Spray Dryer,Radix Isatidis Extract Spray Drying Machine,Artemisiae Annuae Extract Spray Dryer,Lysimachiae Herba Extract Spray Dryer,Herba Leonuri Extract Spray Dryer,Motherwort Extract Spray Dryer,Menthae Haplocalycis Herba Extract Spray Dryer,Radix Isatidis Extraction Spray Dryer,Banlangen powder spraying tower,Radix Isatidis Spray Drier,Banlangen spray granulation
Working Steps
1. Atomizing: Atomize raw material into uniform fog drop through atomizer
2. Contact between fog drop and hot air: The hot air enters to the drying station to contact with fog drop through air distributor, and make a certain movement in drying station. (the movement can be co-current flow, adverse current or mixed flow)
3. Drying Process: Fog drop has big surface area, and appears obvious grades to hot air both in temperature and humidity, thus strengthn the transmission process of plastid caloric, moisture of fog drop is evaporated very quickly (within seconds to tens of seconds.

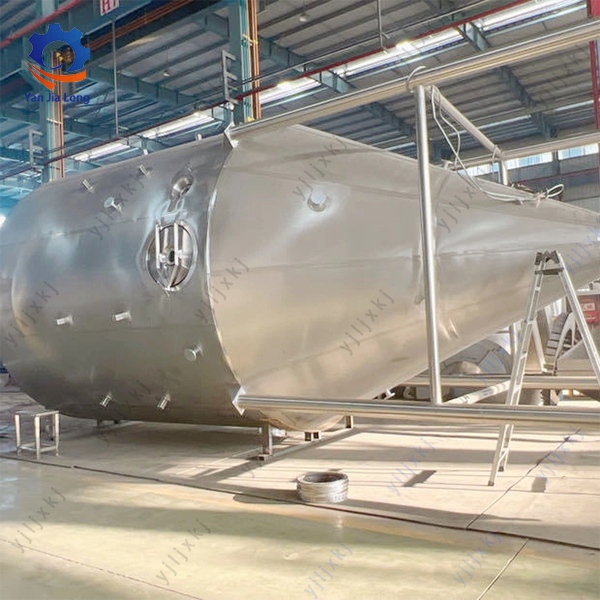

ZPG Salvia Miltiorrhiza Extraction Spray Drying Machine utilizes high-speed centrifugal atomizer to disperse the materials into tiny droplets, and fully contact with the hot air in order to complete constant dry and obtain the powder products. This centrifugal spray drying equipment is suitable for drying Chinese medicines and plant extracts with low melting point and high sugar content. It can prevent the materials from coking, caking or sticking to the wall. Our Salvia Miltiorrhiza Extraction Spray Drying Machine meets the GMP standards.
Technical parameter of Salvia Miltiorrhiza Extraction Spray Drying Machine
|
Model |
ZPG-5 |
ZPG-10 |
ZPG-25 |
ZPG-50 |
ZPG-80 |
ZPG-100 |
ZPG-150 |
ZPG-200 |
ZPG-300 |
|||
|
Water Evaporation (kg/h) |
5 |
10 |
25 |
50 |
80 |
100 |
150 |
200 |
300 |
|||
|
Handling Capacity (kg/h) |
6 to 7 |
12 to14 |
25 to 34 |
50 to 68 |
80 to 108 |
100 to 135 |
150 to 203 |
200 to 270 |
300 to 406 |
|||
|
Solid Content of Wet Material (%) |
18 to 25 |
|||||||||||
|
Finished Product Quantity (kg/h) |
1 to 2 |
2 to 4 |
4.8 to 7.2 |
9.2 to 14 |
14.8 to 22.4 |
18.4 to 28 |
24 to 42 |
36.8 to 56.4 |
55 to 85 |
|||
|
Moisture Content of Finished Product (%) |
3 to 5 |
|||||||||||
|
Electric Power (kw) |
36 |
45 |
63 |
99 |
132 |
153 |
204 |
246 |
330 |
|||
|
Heating Source |
Steam + electricity |
|||||||||||
|
Product Recovery Method and Efficiency |
Two-stage cyclone dust collector or one-stage cyclone dust collector and wet dust collector 95% |
|||||||||||
|
Automatic Instrument |
Exhaust temperature indicator, self-adjusting controller |
|||||||||||
|
Inlet Air Temperature (℃) |
150 to 200 |
|||||||||||
|
Outlet Air Temperature (℃) |
80 to 100 |
|||||||||||
|
Dimensions (mm) |
L |
500 |
5500 |
7000 |
8000 |
9800 |
11000 |
12200 |
14000 |
15000 |
||
|
W |
300 |
3500 |
4000 |
5000 |
5700 |
6200 |
7000 |
7800 |
9000 |
|||
|
H |
4500 |
4600 |
5000 |
6500 |
7600 |
8100 |
9000 |
9850 |
11100 |
|||
