Piston Seals OEP

2 year ago

21 0 

DG Zhongxingshun Sealing Products Factory

4 year

Product details

Product Description:

This is a rotary seal for holes.It consists of a wear-resistant low-friction ring and an O-ring.It is suitable for applications where the pressure alternates from one side of the seal to the other.Modified PTEF bronze and high-performance NBR material with 70 degrees of hardness are selected.

Technical parameters: Working pressure:≤30MPa Working temperature:-30℃~120℃ (The temperature is higher than 120℃ and needs to adjust the O-ring fluorine rubber) Reciprocating speed:≤ 1m/s

Medium: General purpose petroleum-based hydraulic oil, water glycol hydraulic oil-water emulsified hydraulic oil.

Installation: To avoid damage to the sealing lip, measures should be taken to avoid sharp edges during installation. Materials: Modified PTEF bronze, high-performance NBR with a hardness of 70 degrees.

Product physical map:

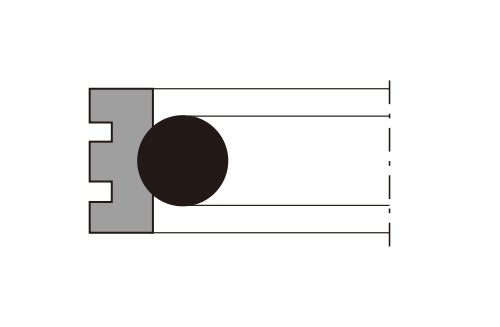

Section:

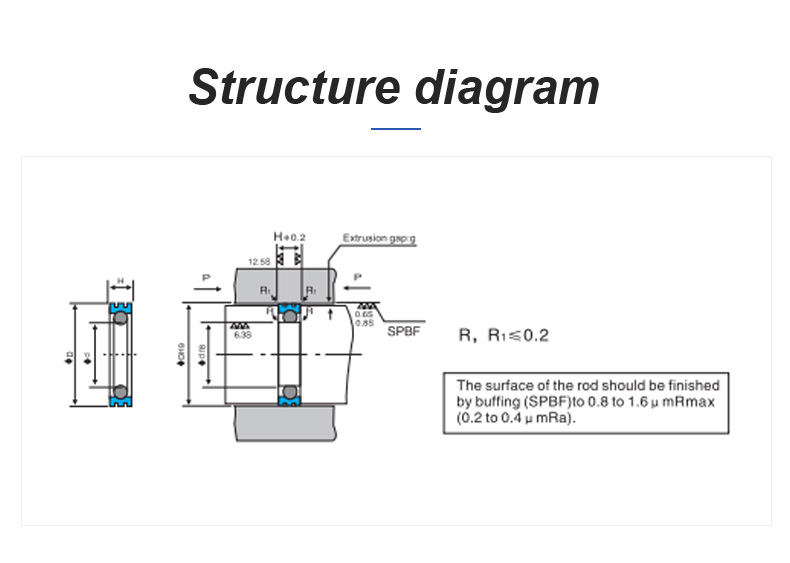

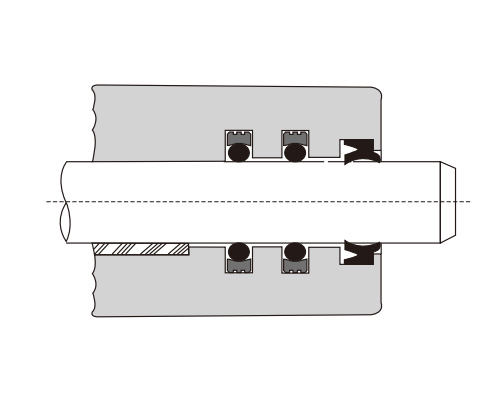

Assembly diagram:
