X26A-I5-4300U 4LAN 6COM

9 month ago

26 0 

Shenzhen Innovative Cloud Computer Co., Ltd.

3 year

Product details

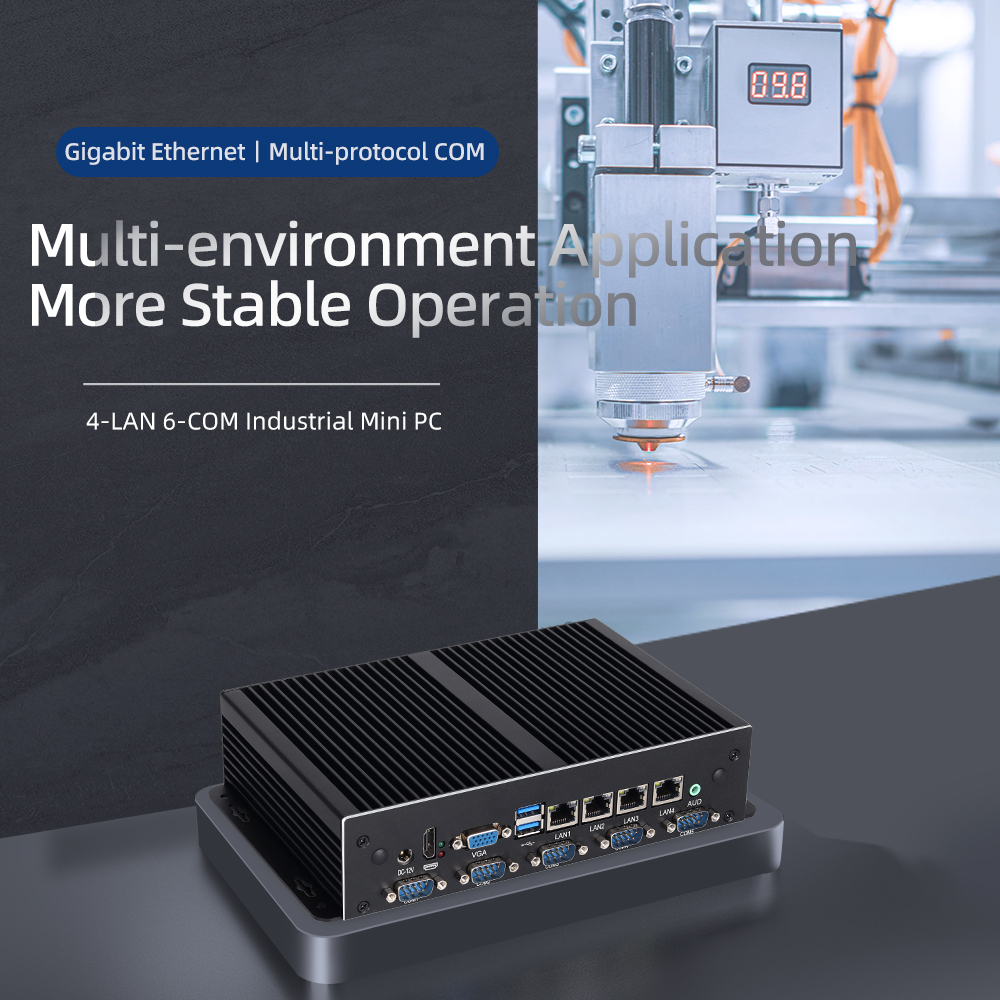

This is a fanless embedded Industrial Mini PC, equipped with Intel Core i3-5005U/i5-4300U/i7-4600U, and Celeron 3855U processor. There are abundant interfaces such as 4 Gigabit ethernet and 6 COM ports, which make this model suitable for a wide range of working environments.

A Mini Computer host is a powerful portable computer with excellent processing power and efficient cooling system. It is equipped with two high-performance hard disks and DDR3/DDR3L large capacity memory, making it easy to handle multitasking operations and the operation of large software.

As a fanless Mini PC, it supports multiple operating systems and is equipped with rich applications and functions to meet various usage needs.

Product Details

CPU: Intel Core i3-5005U/i5-4300U/i7-4600U, Inter Celeron 3855U

GPU: Intel Core i3-5005U: Intel HD Graphics 5500; Intel Core i5-4300U/i7-4600U: Intel HD Graphics 4400; Intel Celeron 3855U: Intel HD Graphics 510

Memory: 1*DDR3 SODIMM, Max up to 8GB; Inter Celeron 3855U: DDR3L-1333/1600, Max up to 8GB

Hard Disk: 1*SATA/HDD/SSD, 1*MSATA SSD

Expansion slot: 1*Mini-PCIe slot, support WIFI/4G modual (SIM Slot); 1*8-way GPIO Internalpin (Customizable Phoenix Terminal GPIO)

Ethernet: 4*RTL8111H Gigabit LAN (Optionally support 2-3 LANs), support wake-on-LAN and PXE boot.

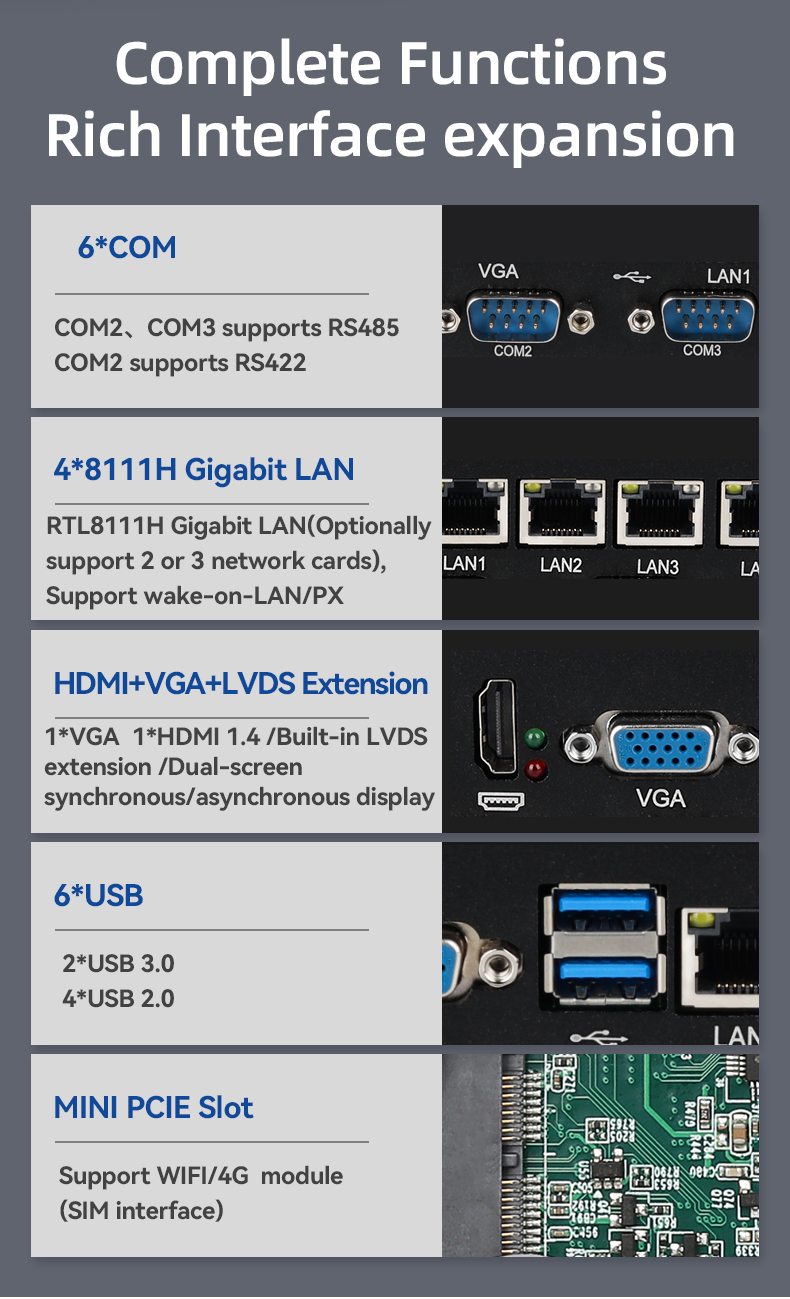

I/O Interfaces: 2*USB3.0, 4*USB2.0; 1*HDMI1.4; 1*VGA(Built-in LVDS); 6*COM(COM2-3 can supports RS485, COM2 can supports RS422); 1*Audio(2-in-1); 1*Power hard disk indicator; 1*DC-12V

Operating System: Windows7, Windows10, Windows11, LINUX

Suitable Temperature: Storage Temp:-30℃ to +70℃, Operating Temp:-10℃ to +60℃, Relative Humidity 5%~95% (non-condensing)

Power: 1*DC 12V5A

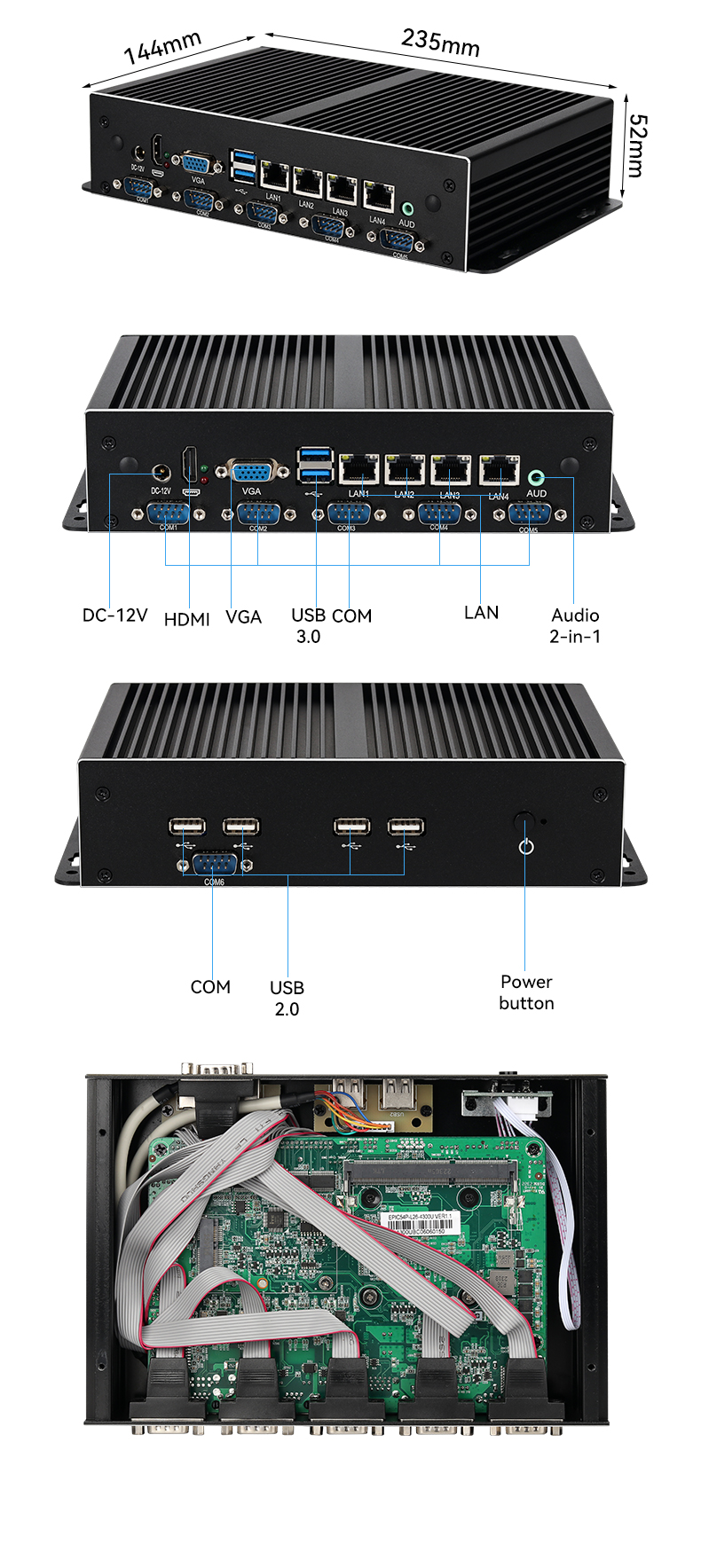

Dimensions: 235mm*144mm*52mm; Weight: 1.4kg

This embedded industrial mini-PC equipped with a variety of Intel Core and Celeron CPU processors, has the ultra-high performance to meet the diverse needs of industrial equipment.

As a Mini Computer, it has a rich COM interface, which greatly meets the needs of various industrial equipment, and is also equipped with 4 Gigabit Ethernet, 6 USB ports, etc., which can be used in a wide range of applications.

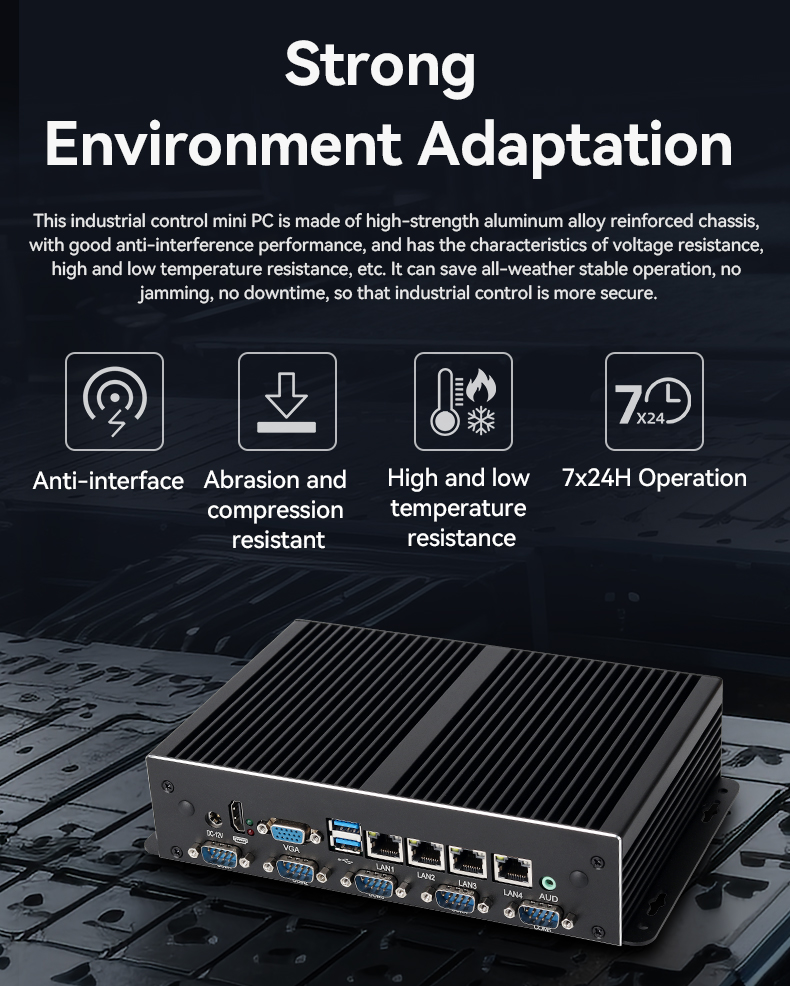

This industrial control mini PC is made of high-strength aluminum alloy reinforced chassis, with good anti-interference performance, and has the characteristics of voltage resistance, high and low temperature resistance, etc. It can save all-weather stable operation, no jamming, no downtime, so that industrial control is more secure.

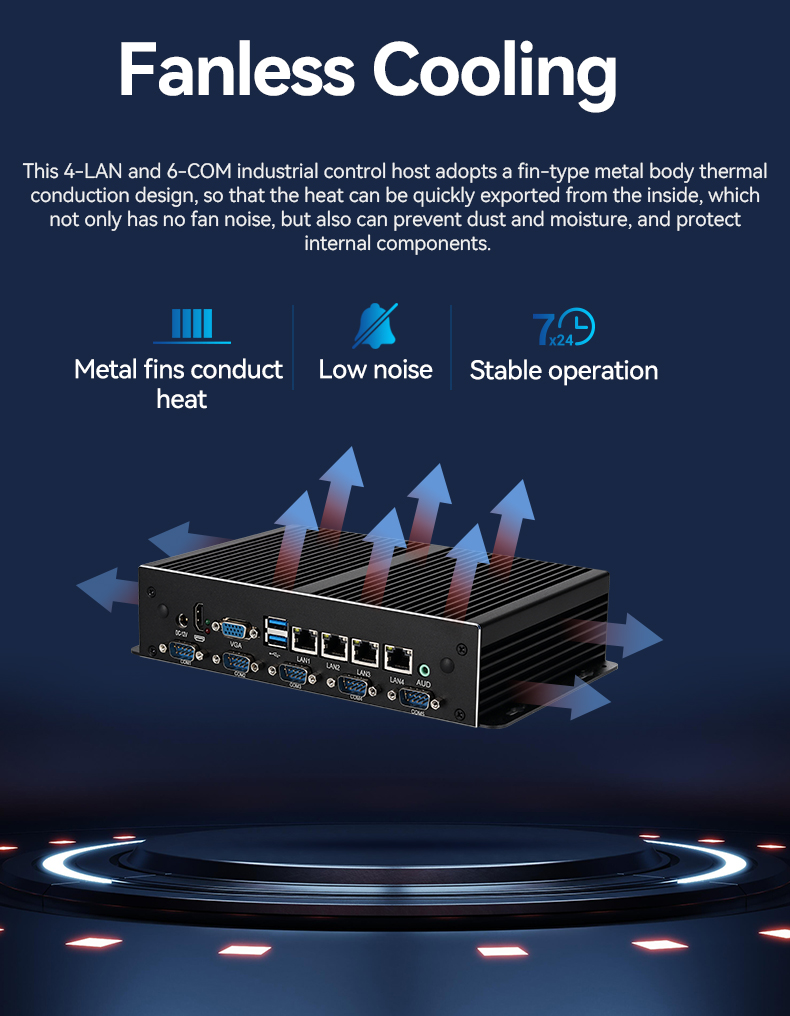

This 4-LAN and 6-COM industrial control host adopts a fin-type metal body thermal conduction design, so that the heat can be quickly exported from the inside, which not only has no fan noise, but also can prevent dust and moisture, and protect

internal components.

This industrial mini PC can better meet the needs of modern industries requirements, which can be applied to scenarios such as visual inspection, edge computing, intelligent robots, and industrial automation, which can bring great help to our lives.
