PD series Automatic Folder Gluer Stitcher Machine

11 month ago

32 0 

Guangdong Dingxin Intelligent Technology Co.,Ltd

12 month

Product details

High-speed Intelligent Folder Gluer Stitcher Inline Machine

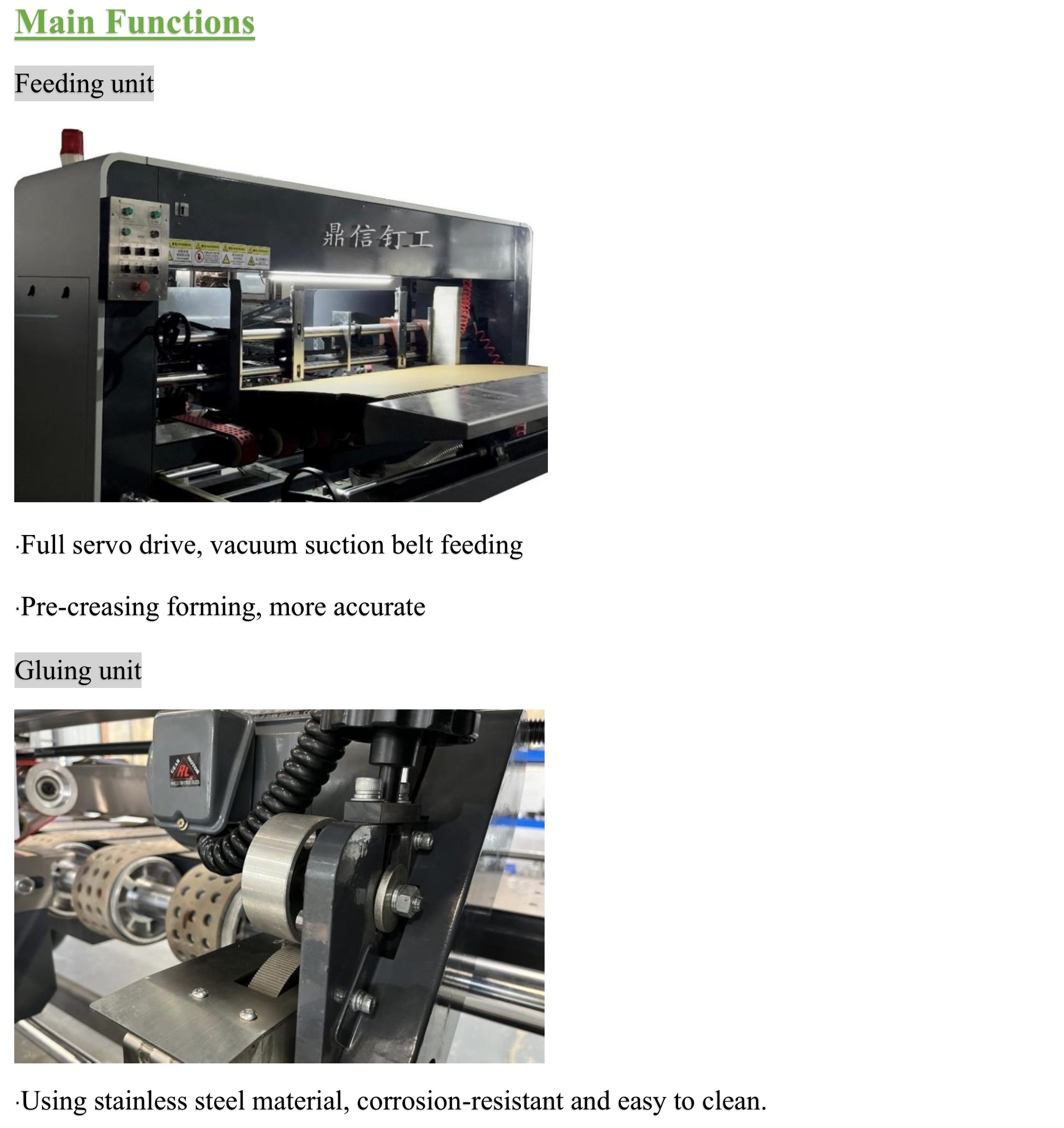

30-50 seconds order change by scan the code or touch screen/Chain hook feeding/full servo control

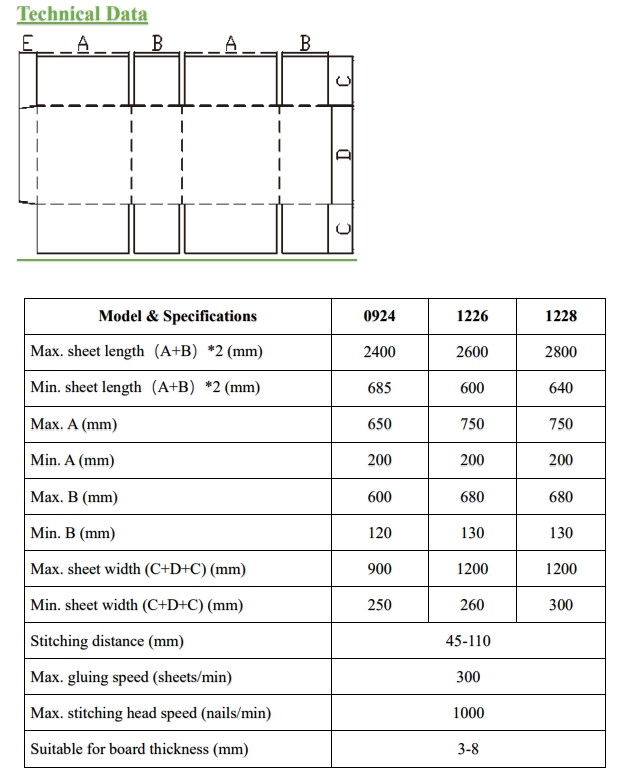

Specifications:

Model	PD-1228
Max.sheet length(A+B)*2	2800mm
Min.sheet length(A+B)*2	640mm
Max.Panel A	750mm
Min.Panel A	200mm
Max.Panel B	680mm
Min.Panel B	130mm
Max.height (C+C+D)	1200mm
Min.height (C+C+D)	300mm
Max.C	280mm
Max.height D	680mm
Min.height D	130mm
Suitable cardboard thickness	3-10
Stitching distance	45-110
Stitching quantity	2-20
Max.stithing head speed	1000

Remarks:

*Max. A≧B

*7-9mm cardboard need to choose #38stitching head, stitching wires length 38mm.

*The size of AB and the hardness of the cardboard determine whether it can be produced on machine.

*The size of D, hardness and width of cardboard determine whether it can produce on the machine
