Product details

48 Core Underground Normal Duct Fiber Optic Cable GYFTY

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath

Feature

1.Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
5.The following measures are taken to ensure the cable watertight

A. Single Fiber Reinforced Plastic as the central strength member

B. Loose tube filling compound

C. 100% cable core filling

Performance

1. Max attenuation : 0.35dB @ 1310nm and 0.21dB/Km @1550nm
2. Fiber : G652D
3. Installation : Suitable for aerial or duct
4. Application : Apply to Long distance communication system, Local area network system and Subscriber network system
5. Lifetime : above 30 years
6. Operating temperature : -40°C~+70°C
7. Permisson bent radius Static : 10 times O.D.
8. Dynamic : 20 times O.D.

Packaging:

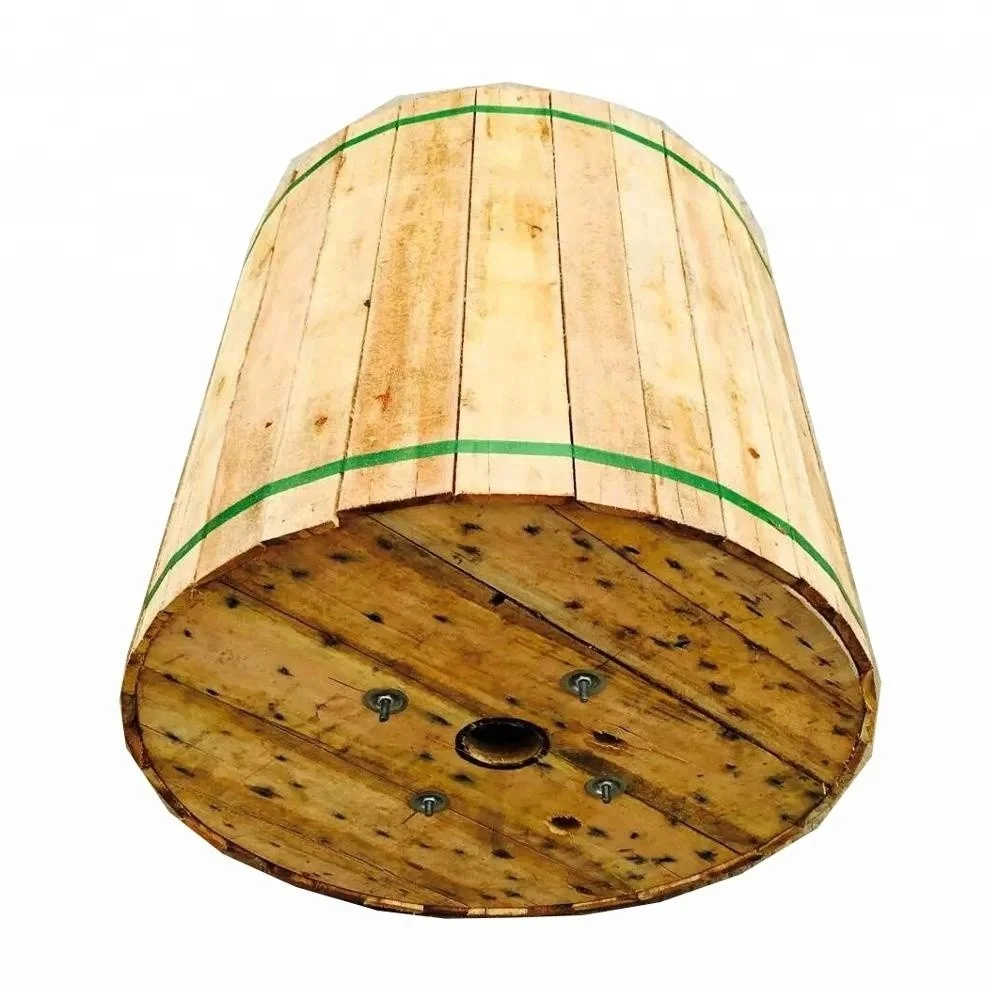

Roll / Wooden drum (fumigated or not)

Delivery:

Ocean transport / Highway transport/ Railway transport,etc.

Sea Port:

Guangzhou Huangpu /Nansha or Shenzhen Shekou

Fiber Optic Cable Application
