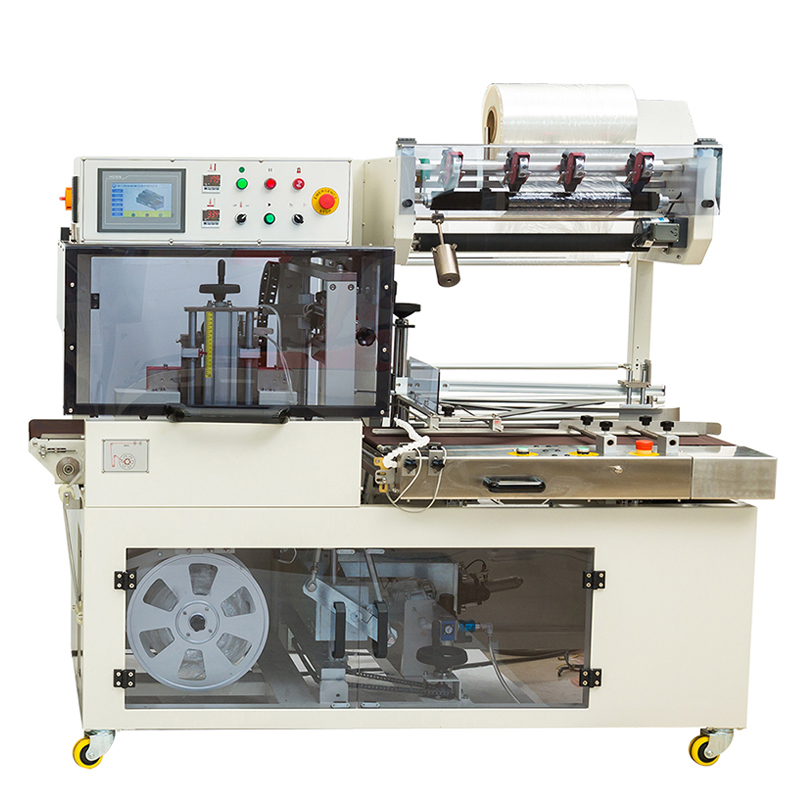

High speed automatic side sealer sealing packaging machine
The DQL4518S operates similarly as the DQL5545G above.The difference being that on this machine the boxes/product can be of random lengths.The side seal mechanism is continuous whereas the QL5545 has an L-sealer.This machine is ideal to pack photo frames,aluminum plates,plastic piping,corning,skirting boards,wood products etc.The ideal shrink tunnel for the DQL4518S is the DSC4525L which uses an advanced hot air circulation system for superior shrinking results and the speed of the conveyor can be set to the appropriate speed for the line.
|
Model
|
DQL4518S
|
|
Max packing size(㎜)
|
L ∞, W+H<380, H<180
|
|
Max sealing size(㎜)
|
W450
|
|
Power(KW)
|
2.50
|
|
Capacity
|
0-35 pcs/min
|
|
Voltage
|
220V 50/60HZ
|
|
Sealing temperature
|
Horizontal sealing bar: 140℃-180℃, Side sealing bar: 180℃-250℃
|
|
Thickness of film(mm)
|
0.015-0.10
|
|
Air pressure(Kg/cm2) )
|
5
|
|
Packing material
|
POF PVC
|
|
Machine weight(㎏)
|
350
|
|
Machine size(㎜)
|
L1800×W950×H1580
|
Main Features
1.DQL4518S is the automatic side sealing machine which developed by ourselves, it is used to high capacity packing production line, feeding, conveying, entering bag, sealing can be finished at a time, it has high working efficiency.
2.Vertical sealing adopts high quality supporting structure and two sides linear guideway to make sealing pressure balanced, frame won't be damaged easily. . The sealing knife adopts copper alloy sprayed with teflong, it won't stick film, sealing fastness, without smoke, non-pollution
3.Side sealing adopts constant temperature sealing knife, sealing part is straight and strong, there is no limited about packing object length. Film feeding belt adopts widen and thicken belt, its using life is long and easily to be replaced.
4.Machine adopt "Omrom" PLC controller,
5.it is equiped with "Panasonic" photo sensor to reach high speed and automatic working.
6."Omron" temperature controller ensure sealing temperature error and "Omron" delay control sealing time accurate
7.International advanced perforating device design ensure stable working
8."Airtach" air filter to ensure enough air source for machine
9.It equiped with touch screen is easier to change the size
10.it has protection function to avoid sealing product wrong and ensure the safety of operator
11.Nice design of the cylinder which will adjust the open distance of the two sealing bar.
Dongguan Chanfer Intelligent Packing Technology Co., Ltd.
was founded in 2009 ,located in Dongguan City ,Guangdong province , We dedicate ourselves to production of servo Horizontal Packing Machine, automatic bagging machine, Automatic Card Friction Feeder machine, Heat Shrink Machine, Carton Sealer, Banding Machine and Packing Processing service for over 10 years. We certificated with C E is for the high end to basic needs with high quality service and continuously innovation as for be the leading brand of Packaging Machinery !
