Product details

16 Port EPON OLT

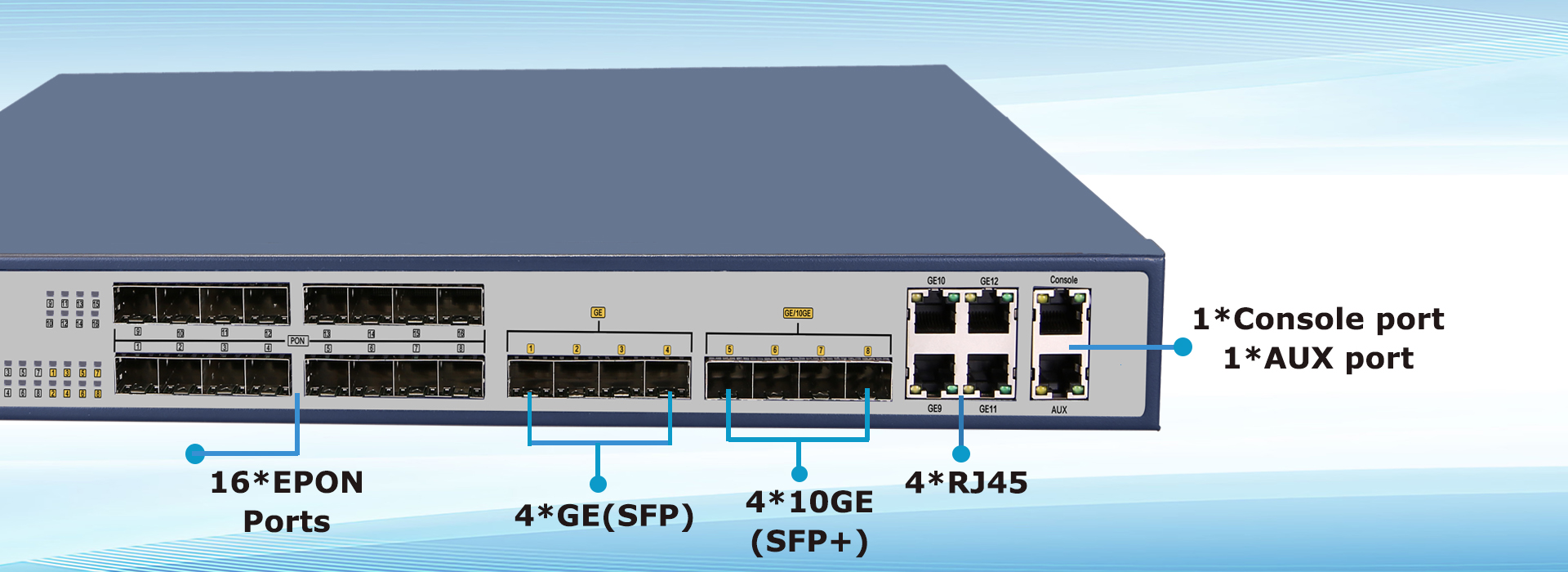

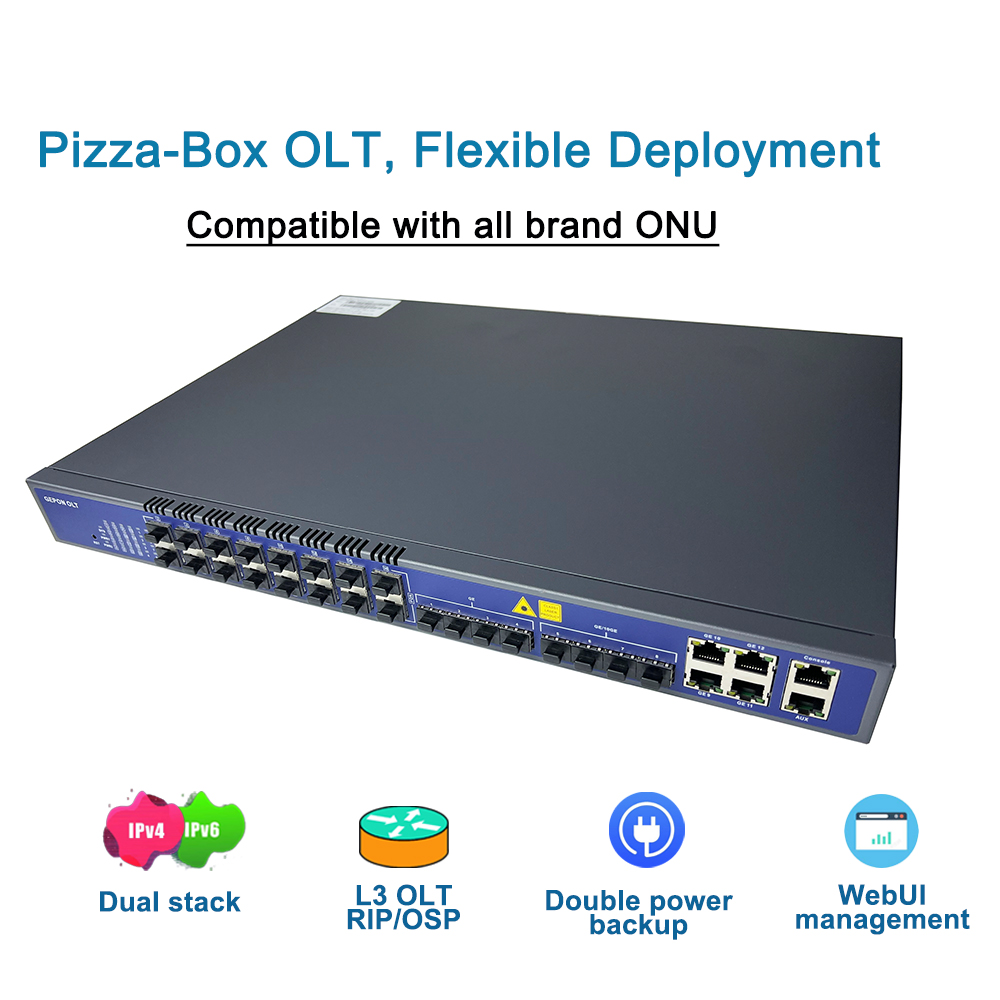

RTE16 is the hot-selling EPON OLT product (16*EPON+4*RJ45+4*SFP+4*SFP+), which are 1U height 19 inch rack mount products.The features of the 16 port EPON OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to be deployed in compact room environment. This OLT Series can be used for “Triple-Play” , VPN, IP Camera, Enterprise LAN and ICT applications. It meets IEEE802.3ah standards.

EPON OLT Highlights:

Open to any brand of GPON EPON ONU
CLI command style similar to mainstream manufacturers
APP management is available
Support IPv6 Function, Support DN, IPv6 Ping, IPv6 Telnet
Support ACL based on source IPv6 address, destination IPv6 address, L4 port, protocol type, etc.
Support MLD v1/v2 snooping IP route
Support static route,
Support Dynamic route RIP

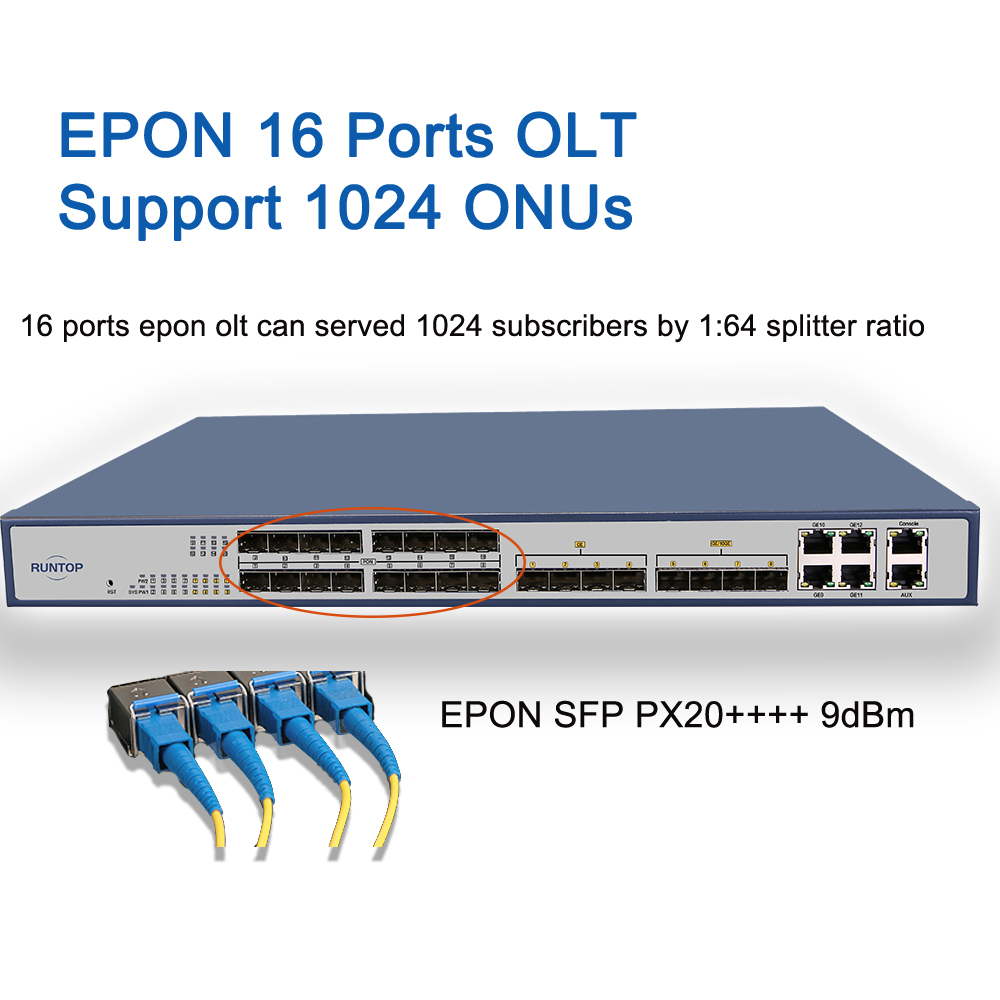

It can support 1024 G/Epon ONU under 1:64 splitter ratio. 16ports epon olt

Easy to manage the EPON OLT

Friendly EMS/SNMP/Web/Telnet/CLI/SSH management

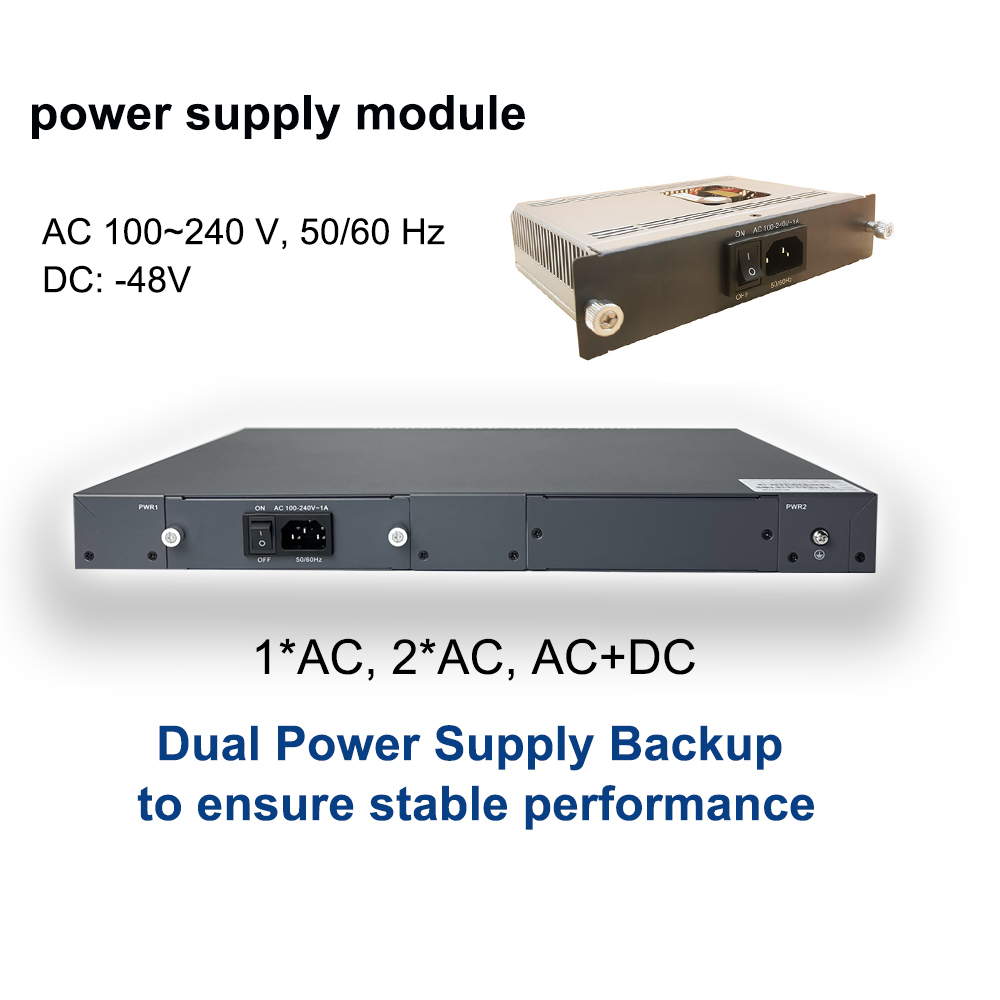

EPON 16 Port OLT supports dual power supply

AC 100~240 V, 50/60 Hz
DC: -48V
Single AC Power
Dual AC Power
AC powe + DC Power

16-Port EPON OLT Specification

Uplink Port	Copper	4*10/100/1000M auto-negotiable
	SFP(1GE)	4
	SFP+(10GE)	4
EPON Port	QTY	16
	Physical Interface	SFP Slots
	Max splitting ratio	1:64
	Supported PON module level	PX20, PX20+, PX20++, PX20+++,PX20++++
Backplane Bandwidth (Gbps)		128
Port Forwarding Rate(Mpps)		95.232
Power Supply		AC 100~240 V, 50/60 Hz
DC Power Supply		DC: -48V
Power Consumption		95W
