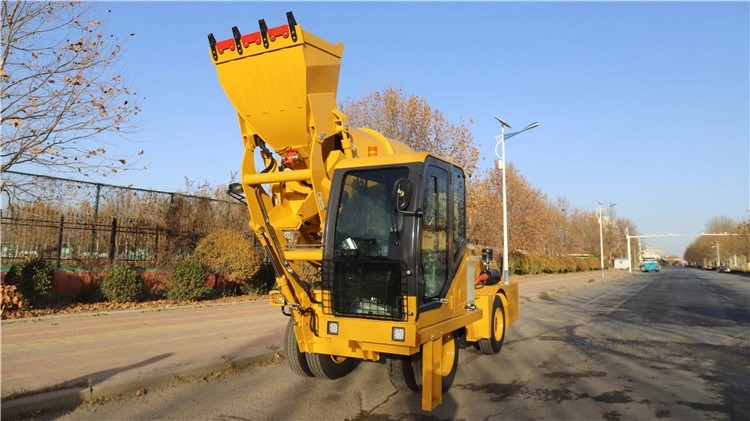

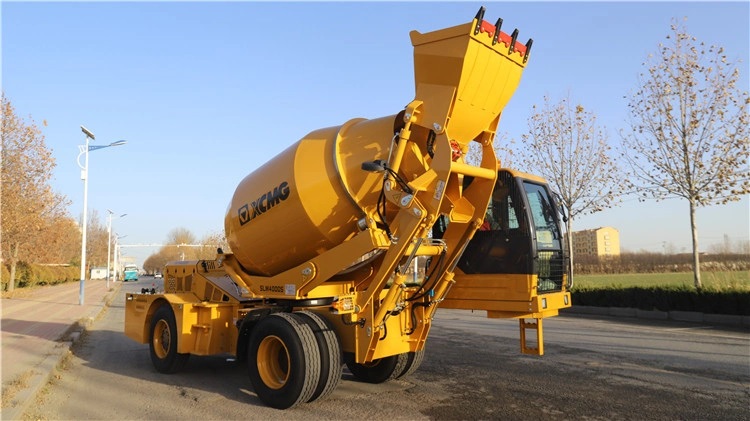

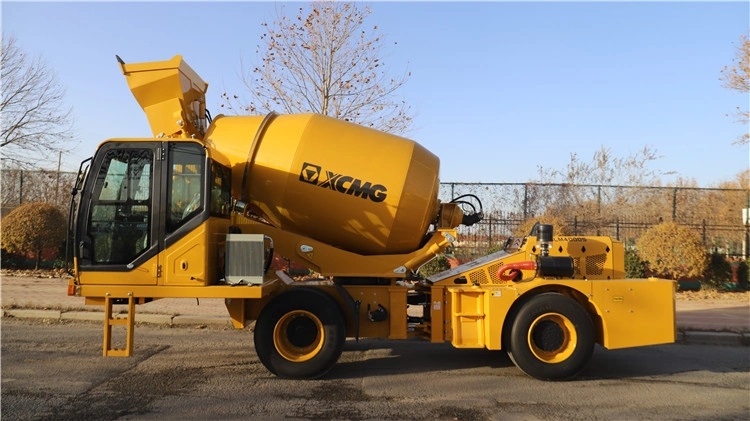

SLM4000S self loading concrete mixer is a new 4-cube concrete mixer, with a maximum driving speed of 50km/h and a production efficiency of about 20m3/ h. All bucket action through the pilot handle to achieve.

* Output per lot: 4.0 cubic metres

* Drum rotation: discharge port height 2.2 meters, tank horizontal rotation 270 tank can be raised and lowered


* ENGINE: Yuchai power ycd4p22t 125, diesel, water-cooled, 4 cylinders, 2400 RPM, rated power 91KW


* Drive mode: The engine is directly connected to the 315 torque converter through the drive shaft to the transmission with dual high and low speed through the drive shaft to the front and rear axles to achieve 4-wheel drive


* Driver's seat: Widen the luxurious cab of the excavator, front window can be opened, anti-roll, anti-falling object type, double armrest cushion seat


* Hydraulic System: closed oil, axial piston motor, three gear pump to participate in the work, tank adjustable speed


* JOYSTICK: Two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank


* Clay Groove: equipped with one 150CM Removable Chute to increase the length of discharge


* Water Supply System: self-priming driven pump, 24V self-timing Centrifugal pump, hydraulic high-pressure car washing machine


* BRAKES: internal hub brakes and emergency brakes on 4 wheels, activated by a small Servo pump on a separate two-loop, negative-pressure parking brake, front and rear axles equipped with internal wheels


* Steering: assisted by a hydraulic power steering system on two steering wheels
