slotting machine
10 month ago

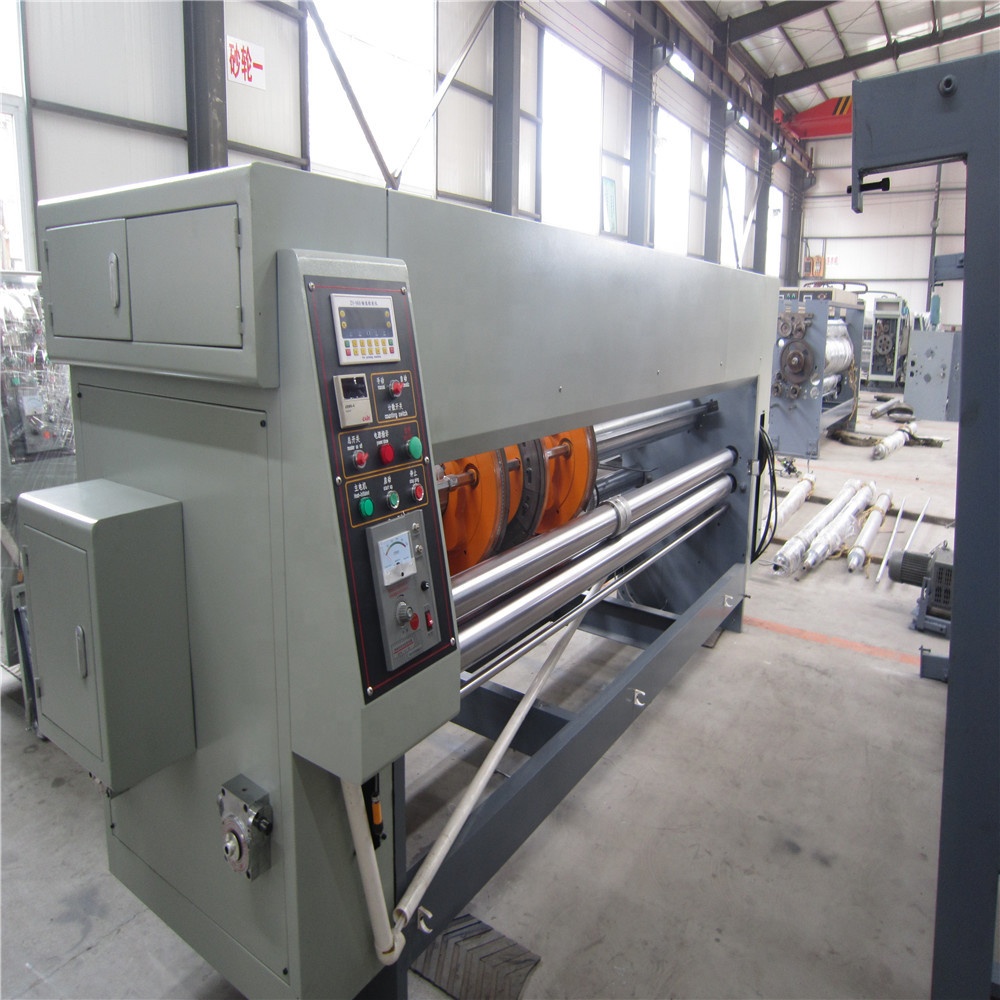

Semiautomatic rotary slotting machine
It adopts chain-paper feeding.
adopting QT Ductile Iron Gear driving.auto cycling ink-feed system, roller lifted pneumatic and separate rotating.
all the axes of roller must be chrome-plating in order to increase the hardness.
printing and grooving electric phase adjusting mechanism adopt planet type gear structure. (It can be adjusted 360 degree while reviling and stopping.)
electrically separation and pneumatic locking.
adopting the mold place designing. The muti-color printing machine can be combined and linked in any way.
auto count device to show right production volume.
|
Item name
|
Unit
|
2200 type
|
2400 type
|
|
Max paper coverage area
|
mm
|
980*2100
|
980*2300
|
|
Effective printing area
|
mm
|
980*1900
|
980*2100
|
|
Min finish size
|
mm
|
250*450
|
250*450
|
|
Thickness of printing plank
|
mm
|
6
|
6
|
|
Cardboard thickness
|
layers
|
3, 5, 7
|
3, 5, 7
|
|
Topping precision
|
mm
|
±0.75
|
±0.75
|
|
Slotting precision
|
mm
|
±1.0
|
±1.0
|
|
Economy speed
|
Pcs/min
|
30-50
|
30-50
|
|
Power of motor
|
kw
|
1.5-7.5
|
1.5-7.5
|
|
Max speed
|
Pcs/min
|
60
|
60
|
