Tilt Hydraulic Cylinder 524-7636

8 month ago

2 0 

Xuzhou MMT Machinery Co., Ltd.

11 month

Product details

Xuzhou MMT Machinery Co., Ltd.

Tel: +8615862255953(WhatsApp) Cassie Zhu

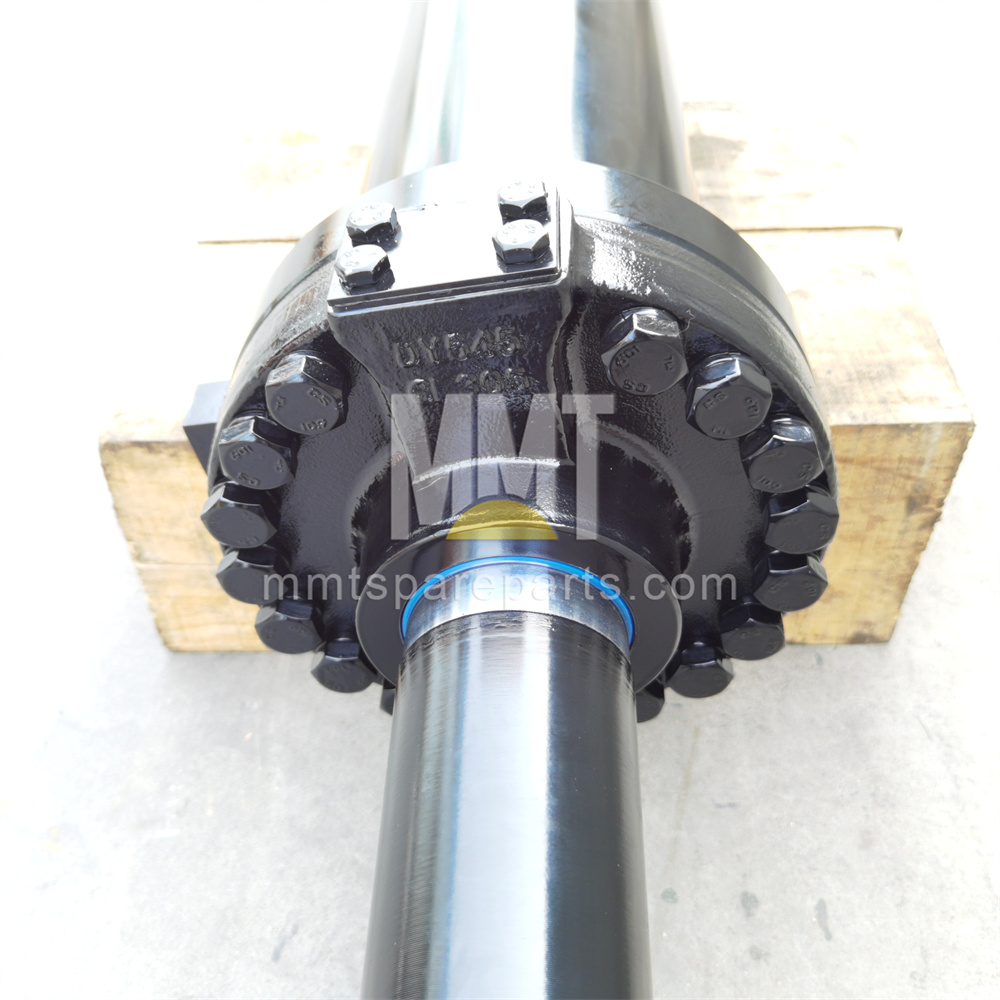

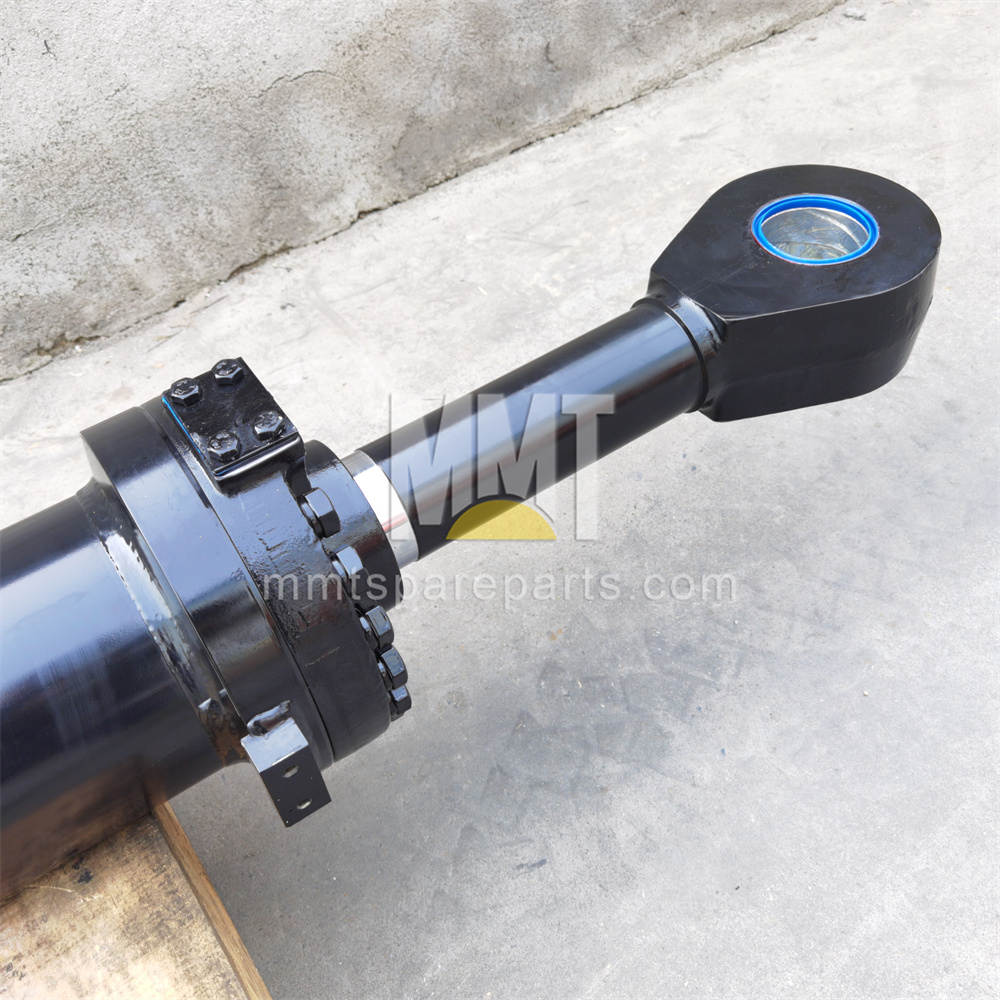

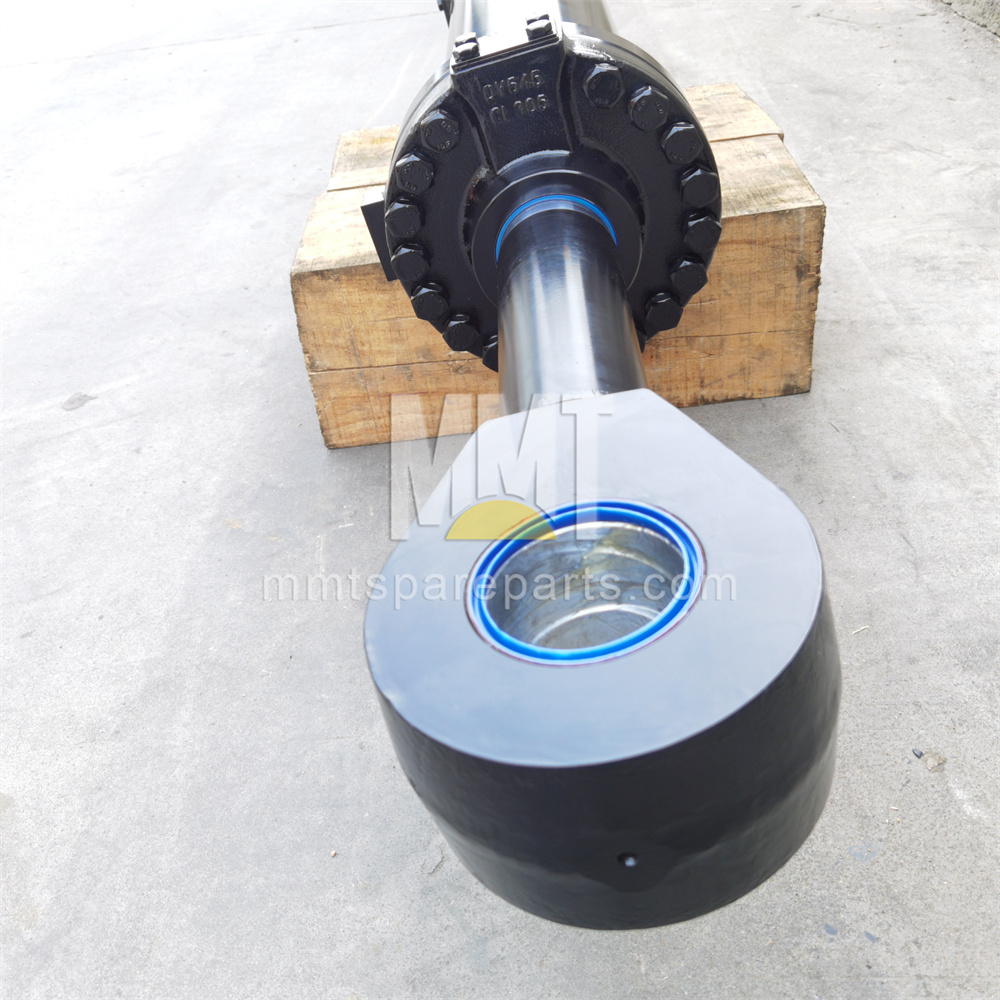

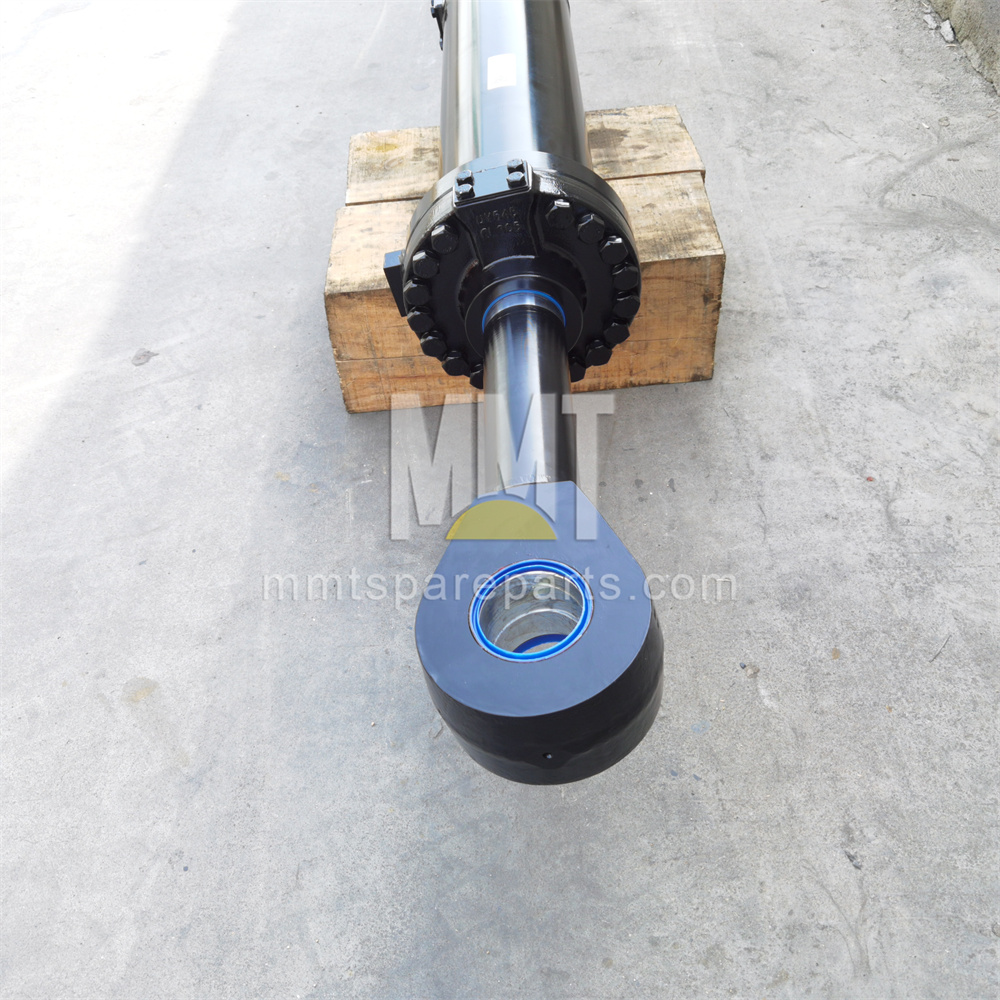

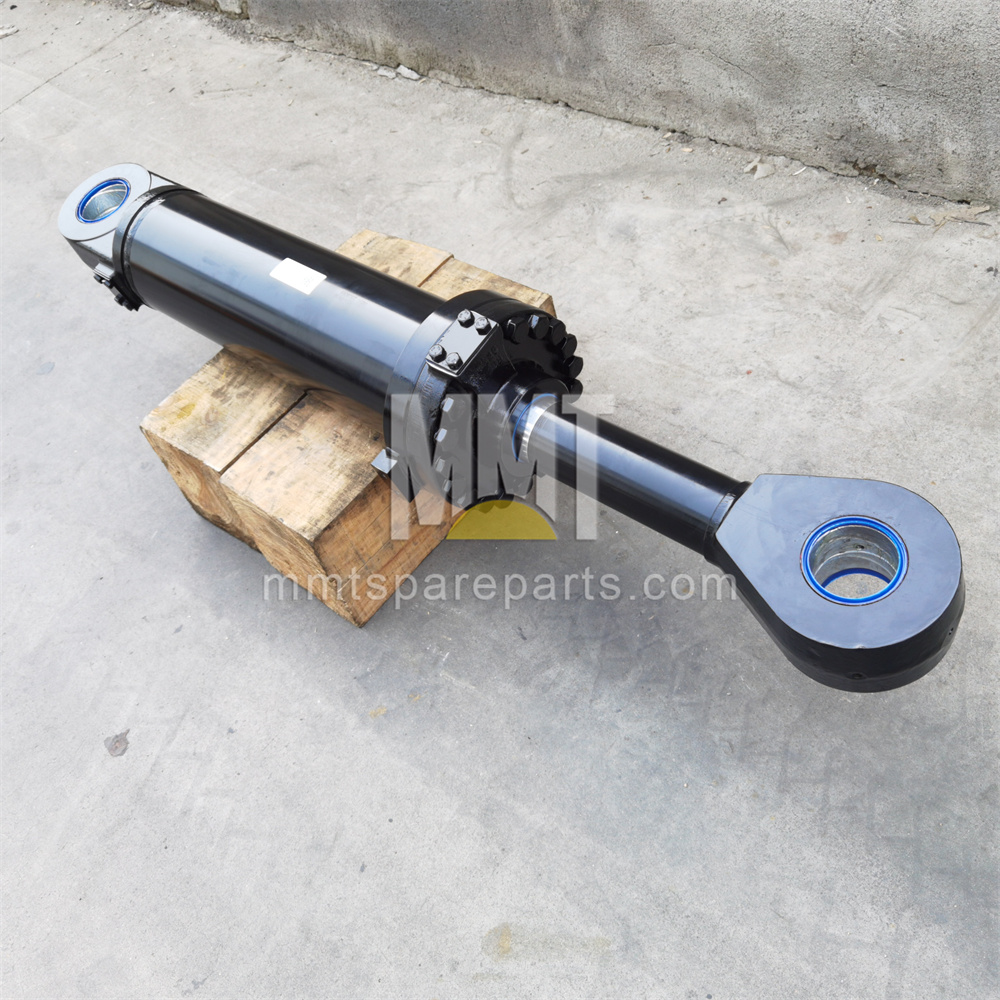

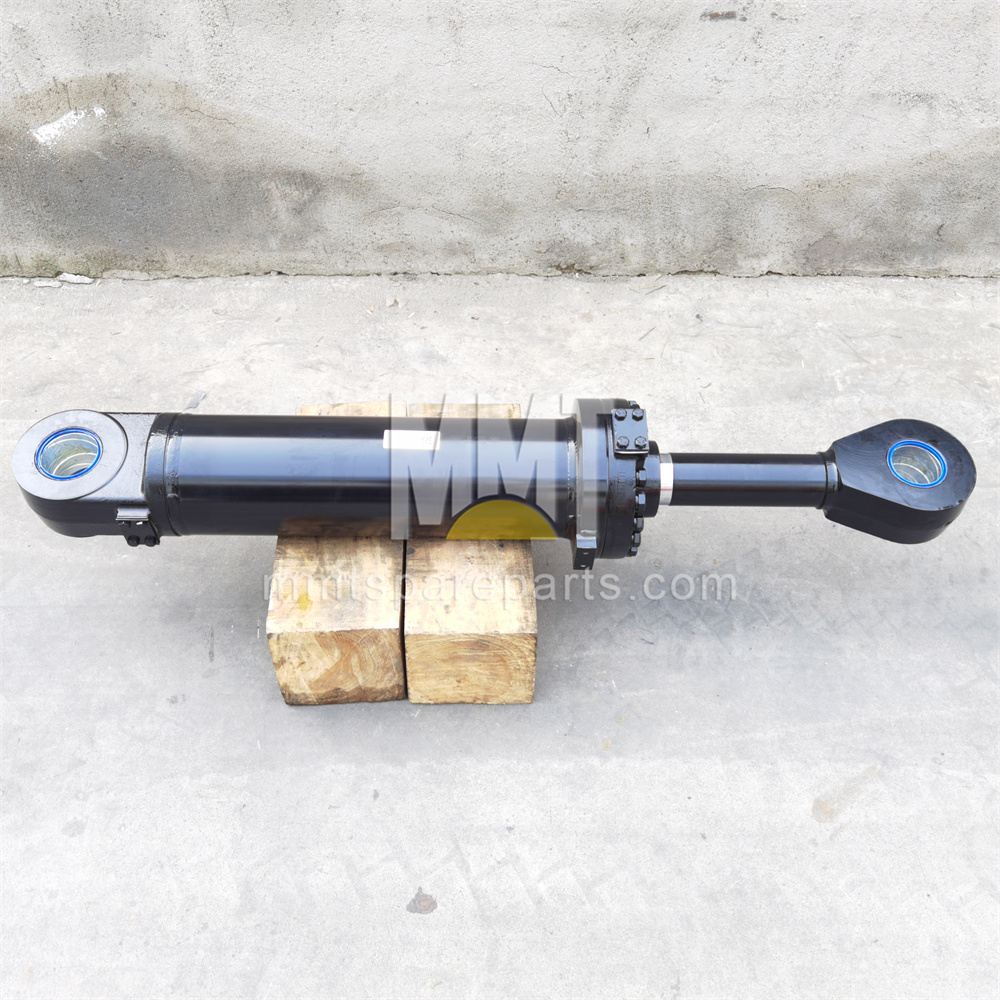

950GC Tilt Cylinder 524-7636

Description:
Complete MMT hydraulic cylinder arrangements actuate numerous machine components ranging from steering controls to refined movement of blades, buckets or other attachments.

WHEEL LOADER

950GC

Hydraulic Cylinder Working Principle

Basic Principle

A hydraulic cylinder is the core actuator in a hydraulic transmission system, operating based on Pascal's Law (pressure transmission in a confined fluid). It converts mechanical energy into hydraulic pressure through a hydraulic pump, driving the linear movement of the piston within the cylinder, ultimately transforming hydraulic energy into mechanical energy output.

Working Process

Pressurization Stage: The hydraulic pump injects high-pressure oil into one side of the cylinder (e.g., the rod-less chamber), pushing the piston towards the other side.

Working Stage: The piston rod extends or retracts, driving mechanical components (such as excavator booms or loader buckets) to complete lifting, pushing, or pulling actions.

Oil Return Stage: Low-pressure oil from the other chamber returns to the oil tank, and the cycle repeats.

4. Rod Corrosion or Bent Rods

Causes: Exposure to moisture, chemicals, or excessive side loads.

Maintenance:

Apply protective coatings to rods and clean them after exposure to harsh environments.

Inspect rods for bending; replace if deformed to prevent seal failure.

Use rod guards or boots in corrosive or debris-heavy environments.

5. Seal Failure

Causes: High temperatures, chemical degradation, improper installation, or age.

Maintenance:

Use Caterpillar-approved seals resistant to temperature and chemical exposure.

Follow precise installation procedures to avoid pinching or misalignment.

Replace seals during scheduled maintenance, even if they appear intact.

8W-2010

8W-2066

8W-2146

8W-2215

8W-2242

8W-2244

8W-2272

8W-2383

8W-2398

8W-2400

8W2010

8W2066

8W2146

8W2215

8W2242

8W2244

8W2272

8W2383

8W2398

8W2400
