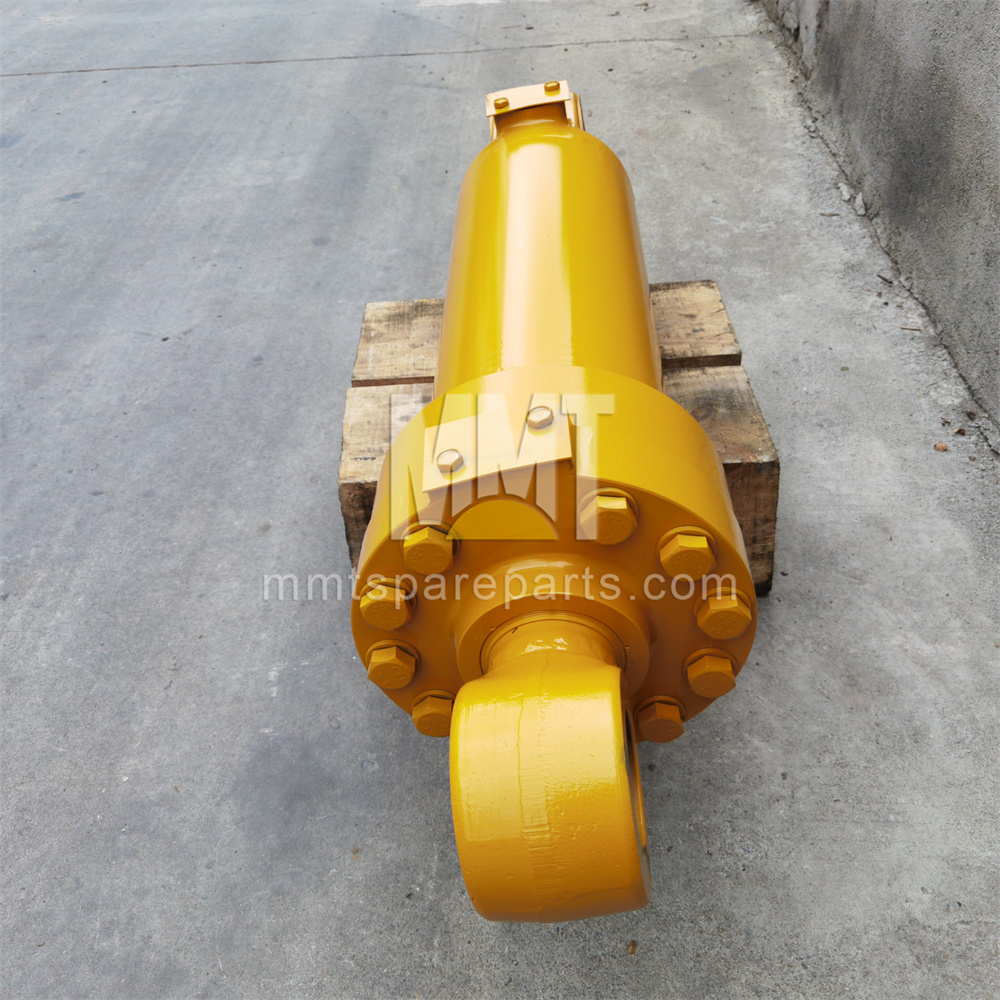

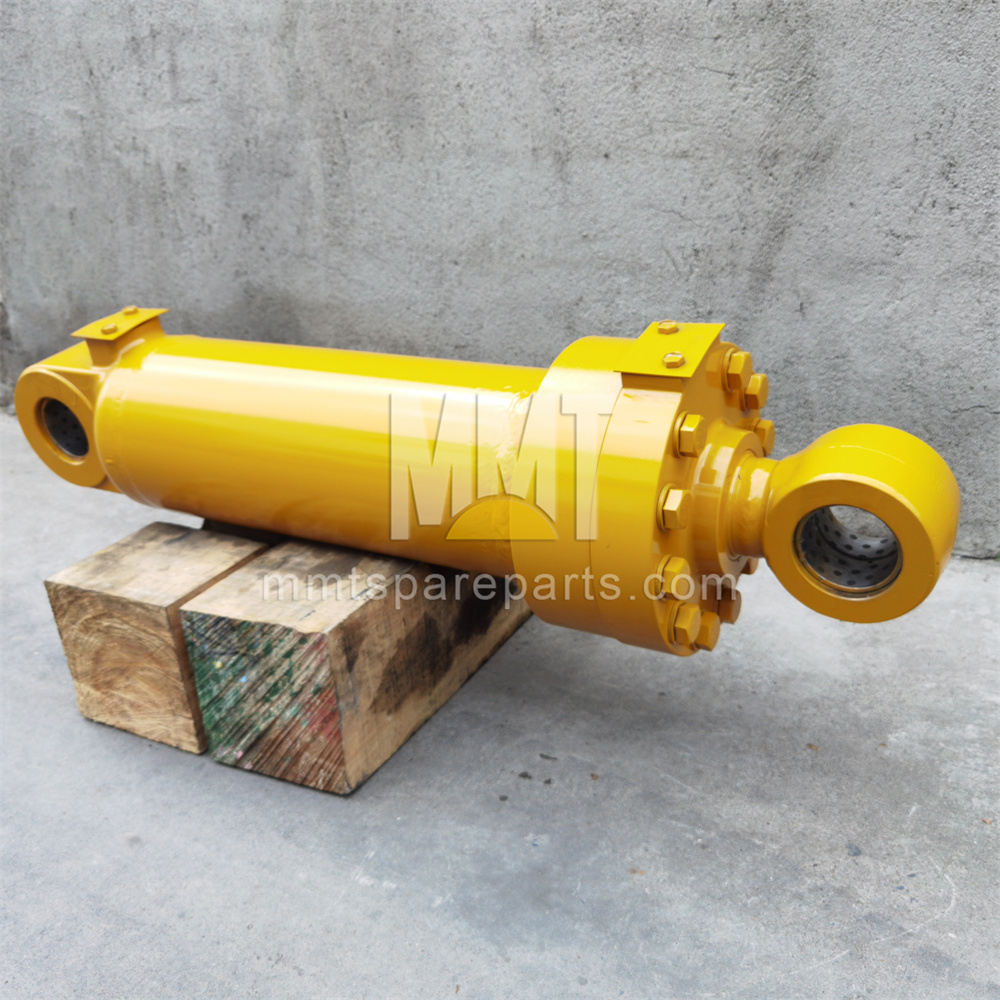

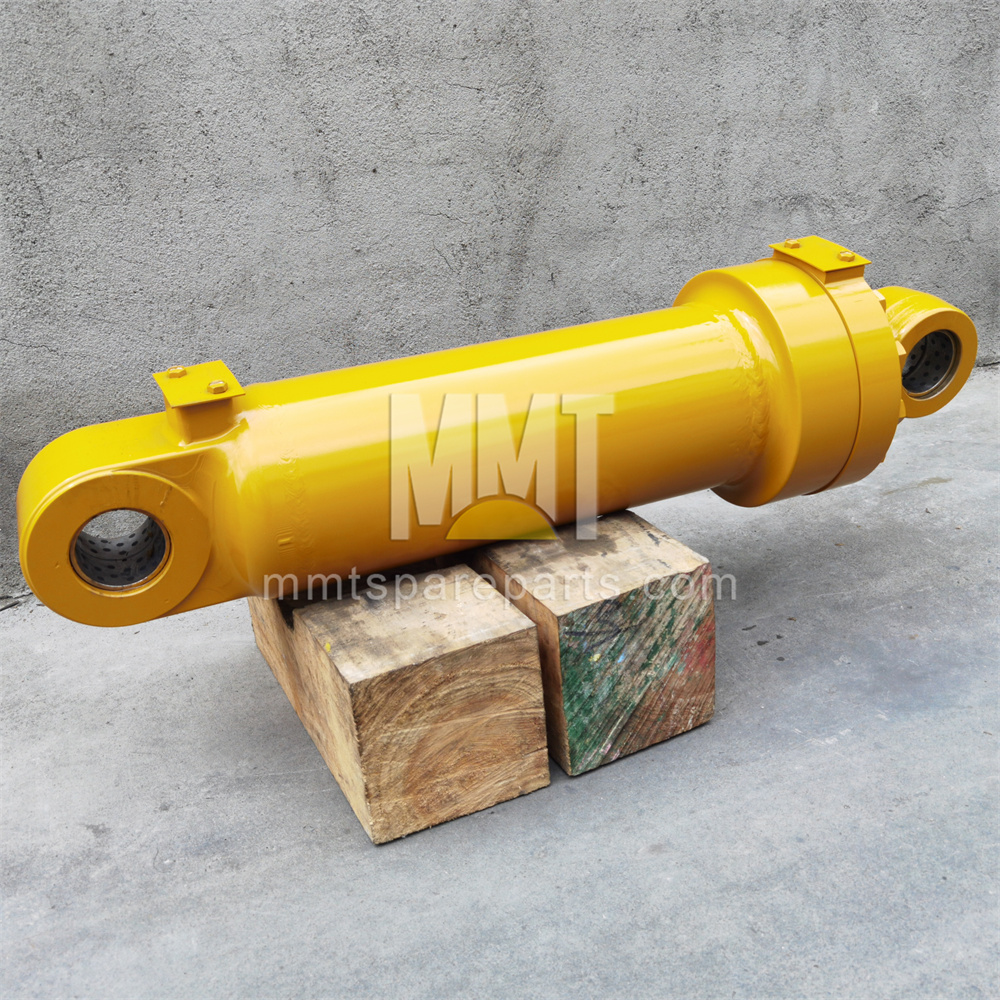

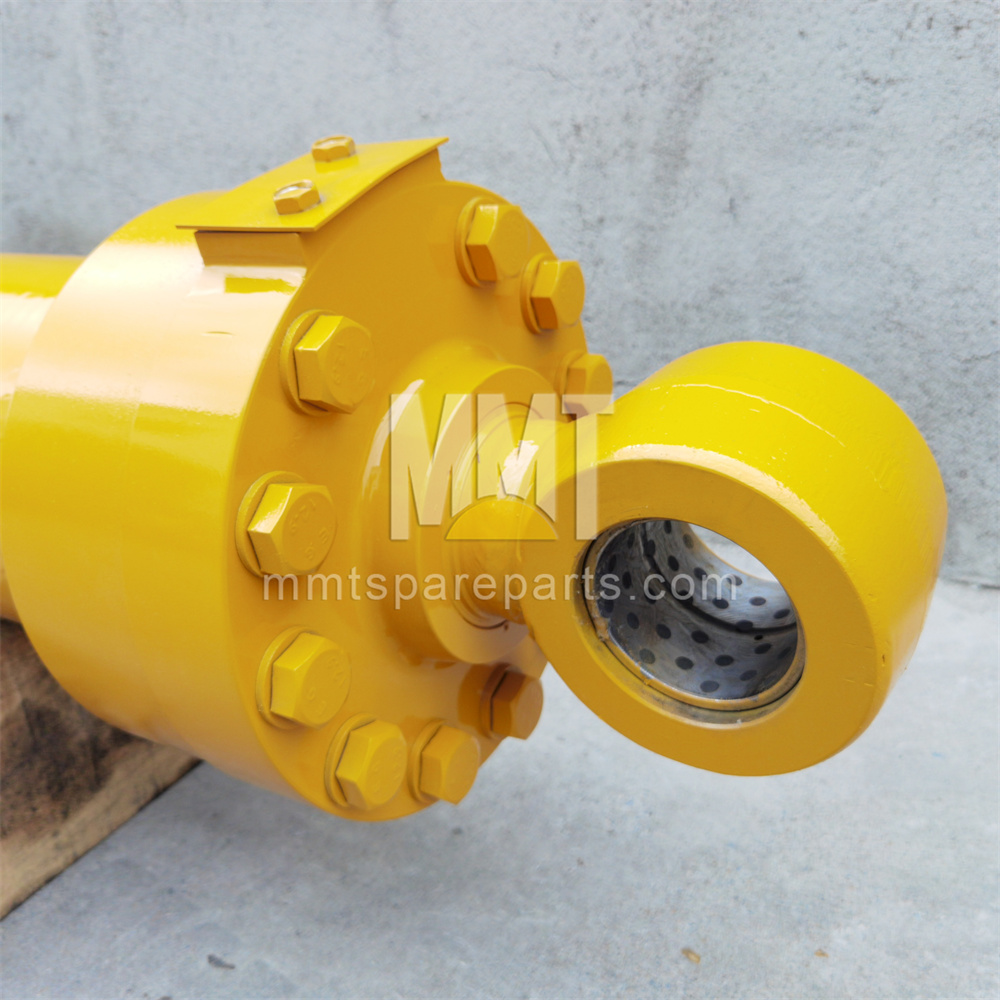

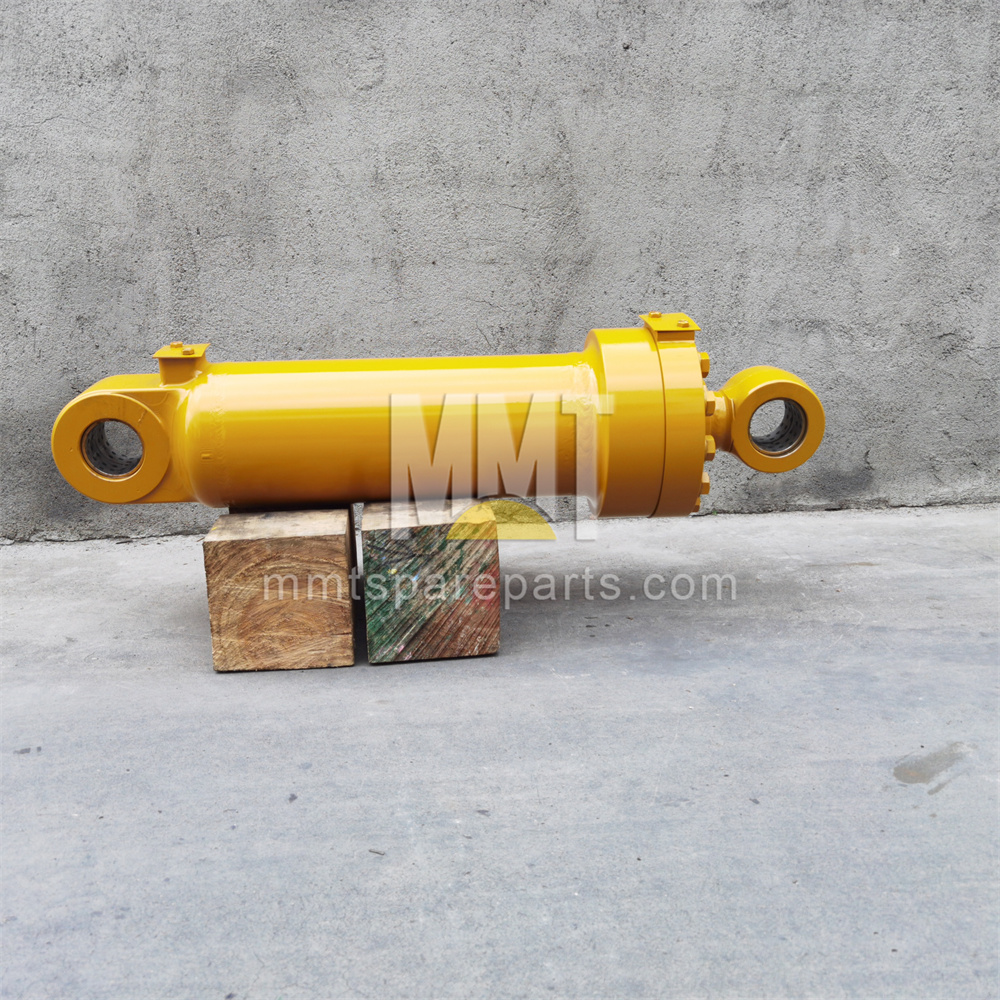

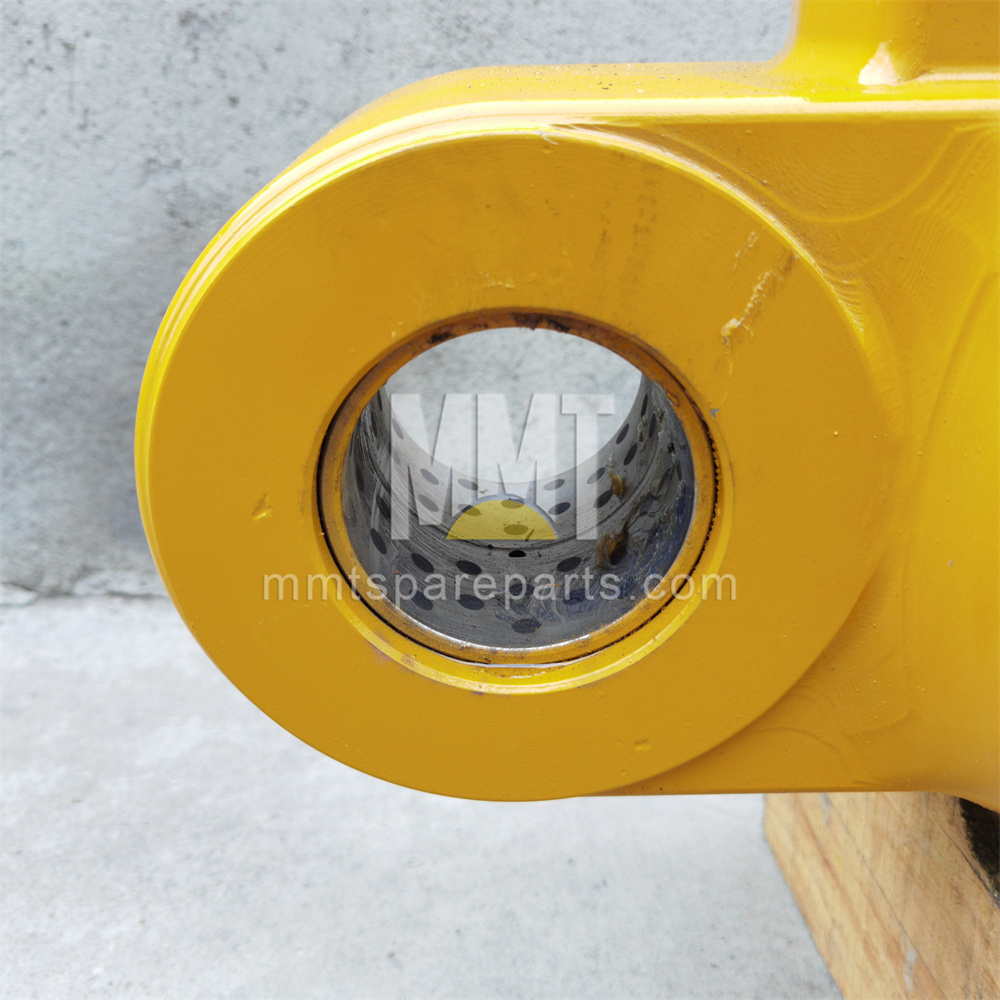

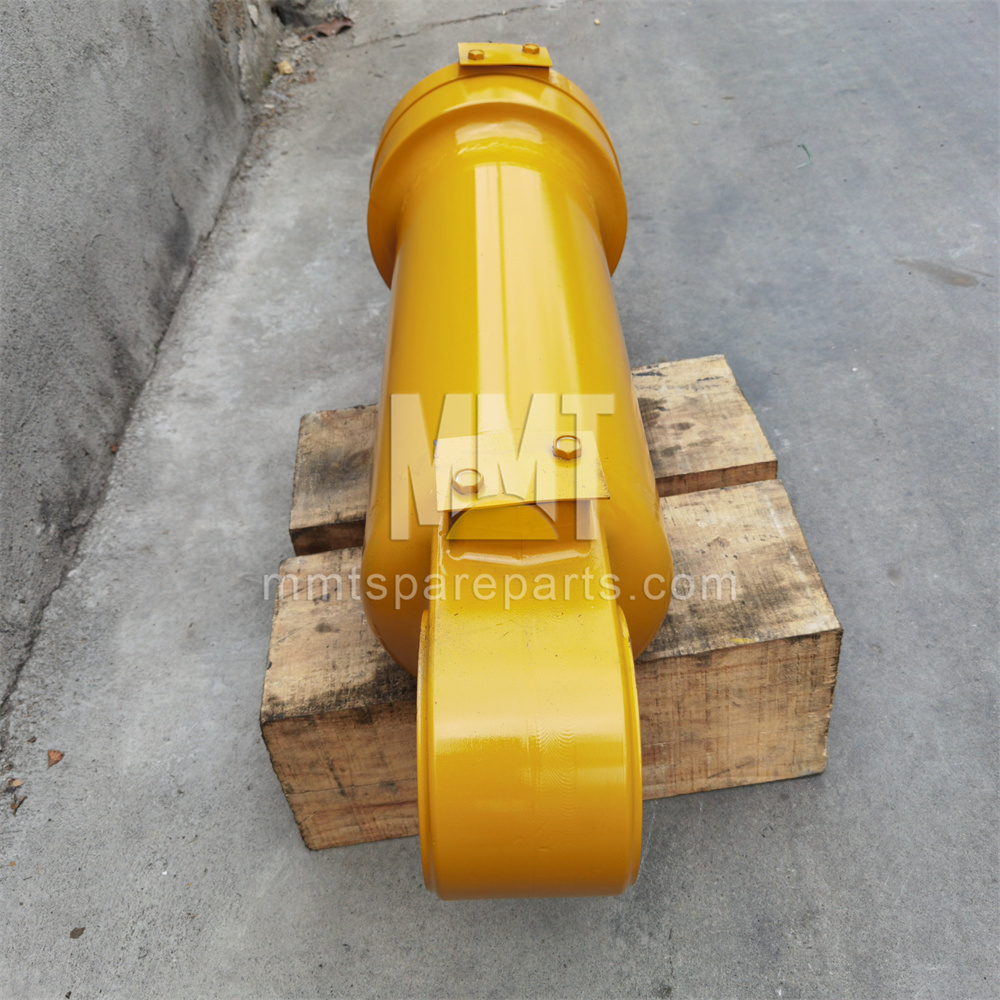

972M Tilt Cylinder 359-6693

A Tilt Cylinder is designed to provide controlled tilting or angling movements of heavy equipment. It typically consists of a cylindrical body, piston, piston rod, seals, Cylinder Head, and cap. When pressurized Hydraulic fluid is supplied to one side of the Cylinder, it exerts a force on the piston, causing it to move in a linear direction. This force is transmitted through the piston rod, which is attached to the object being tilted. As the piston rod extends or retracts, it imparts a rotational movement to the object, enabling it to Tilt.

WHEEL LOADER

972M 972 972L 966XE 972XE 972M XE 966M XE 966L 966 966M

Hydraulic Cylinder Working Principle

Basic Principle

A hydraulic cylinder is the core actuator in a hydraulic transmission system, operating based on Pascal's Law (pressure transmission in a confined fluid). It converts mechanical energy into hydraulic pressure through a hydraulic pump, driving the linear movement of the piston within the cylinder, ultimately transforming hydraulic energy into mechanical energy output.

Key Components

Cylinder Barrel: A sealed container filled with hydraulic oil.

Piston: Divides the cylinder into two chambers (rod-side chamber/rod-less chamber), moving under pressure differences.

Piston Rod: Connects the piston to external loads, transmitting thrust or pull force.

Sealing System (Seals): Prevents hydraulic oil leakage and maintains system pressure.

6. Overheating

Causes: Excessive load, high ambient temperatures, or restricted cooling.

Maintenance:

Ensure adequate cooling systems (e.g., radiators, heat exchangers) are functional.

Avoid overloading the hydraulic system beyond its rated capacity.

Monitor fluid temperature and address leaks or inefficiencies promptly.

7. Slow or Erratic Movement

Causes: Air in the system (aeration), low fluid levels, or worn internal components.

Maintenance:

Bleed air from the system by cycling the cylinder fully multiple times.

Maintain proper fluid levels and check for suction leaks.
