Steering Hydraulic Cylinder 6E-5024

11 month ago

4 0 

Xuzhou MMT Machinery Co., Ltd.

2 year

Product details

Xuzhou MMT Machinery Co., Ltd.

Tel: +8615862255953(WhatsApp) Cassie Zhu

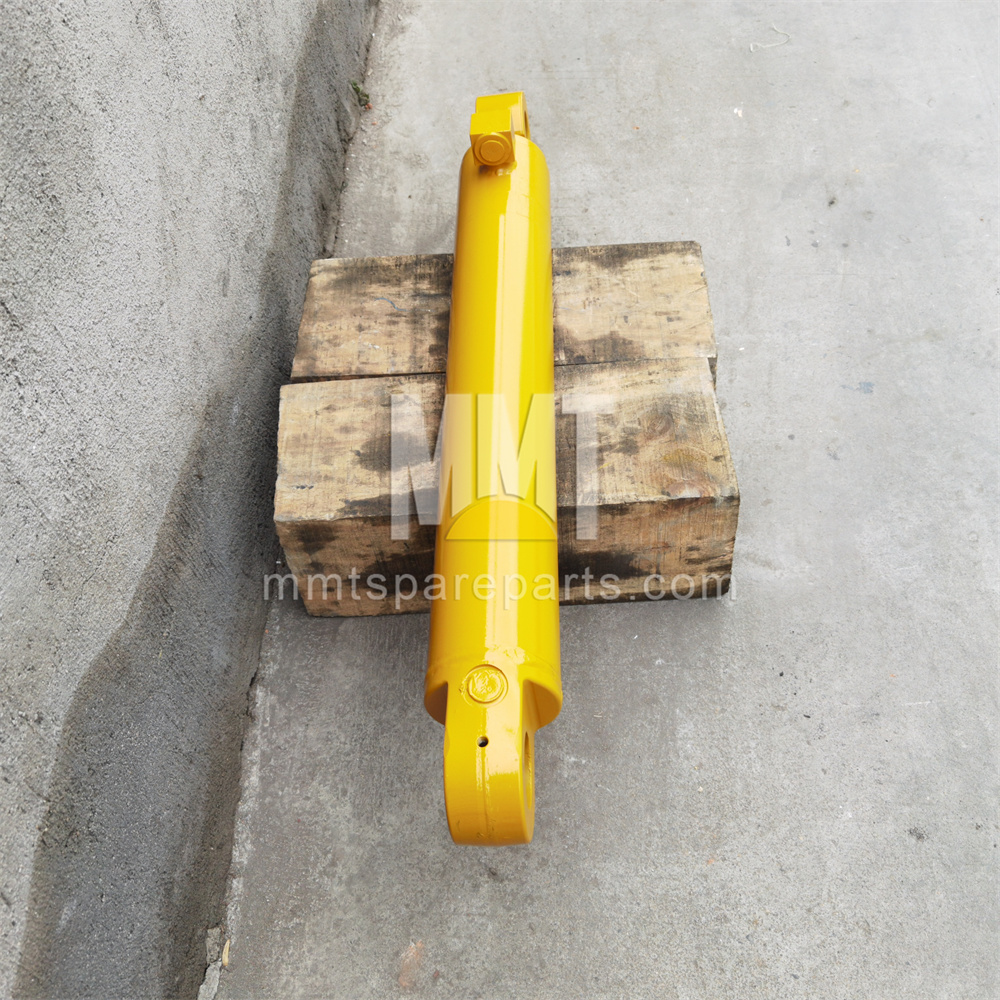

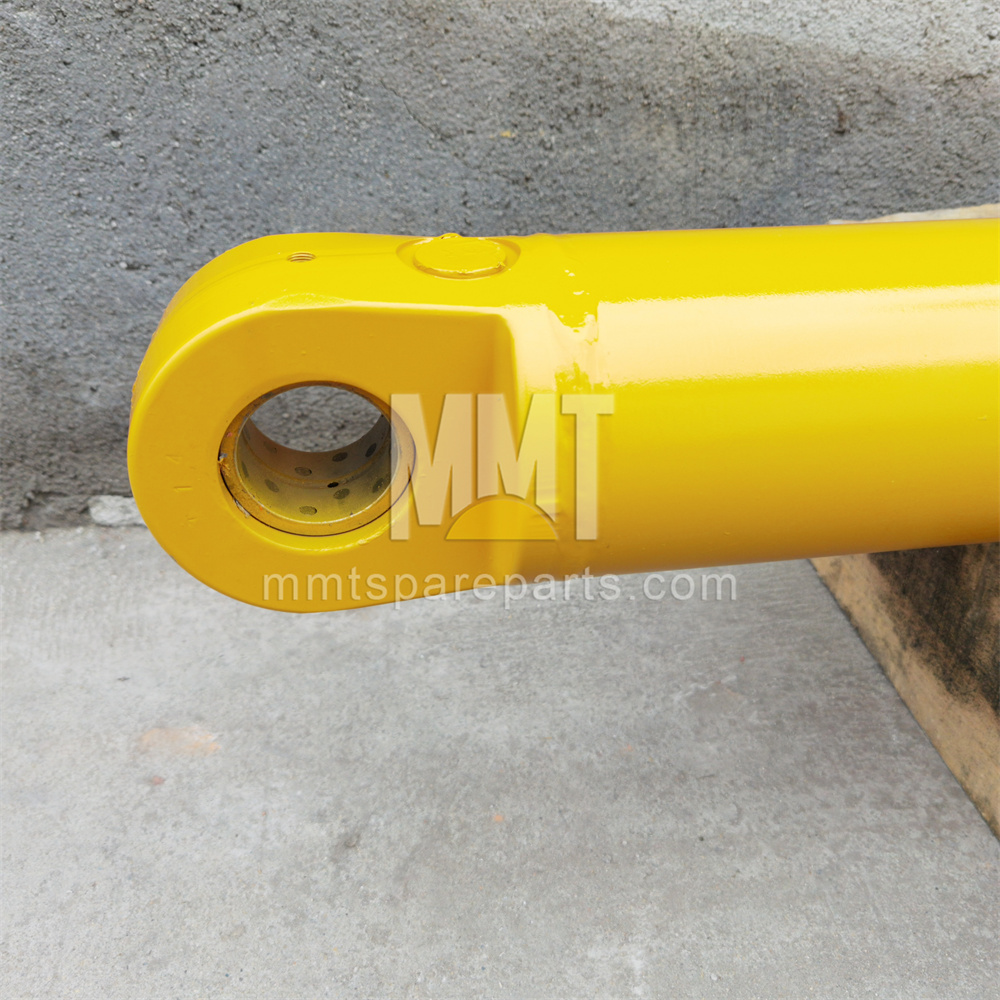

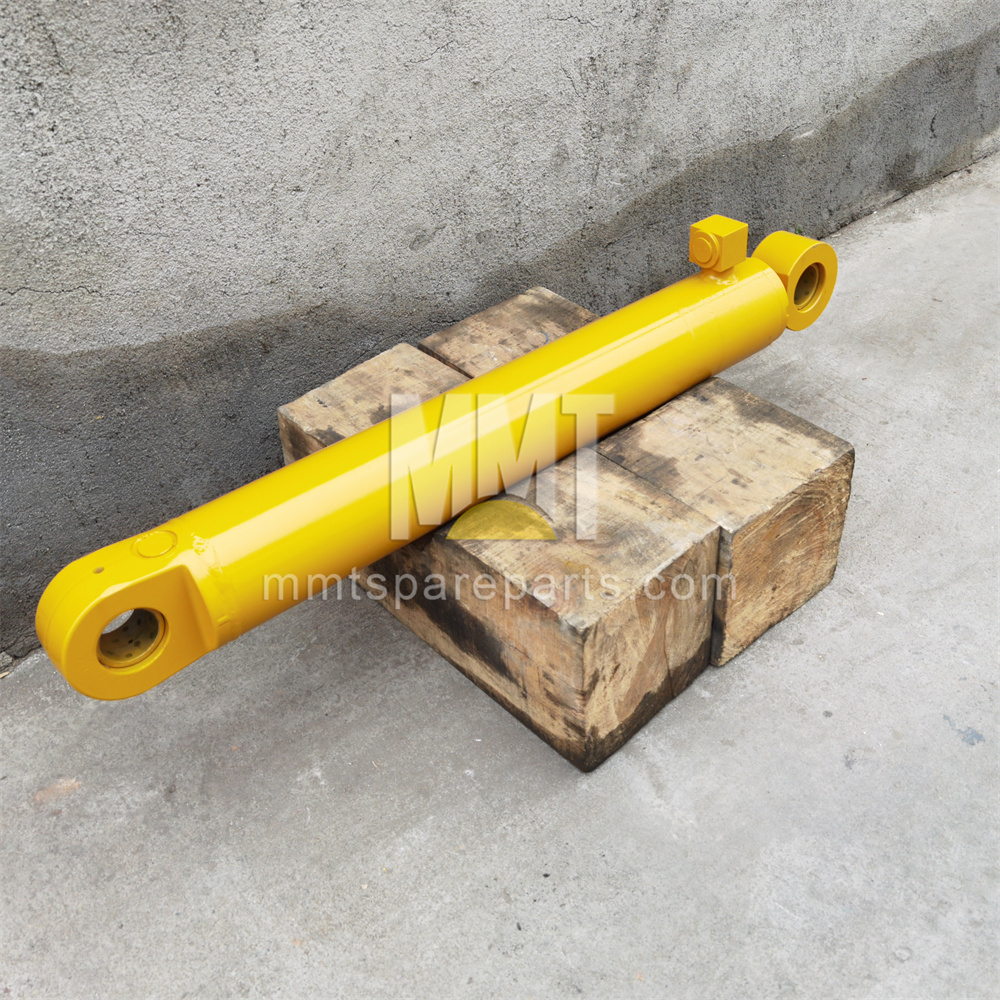

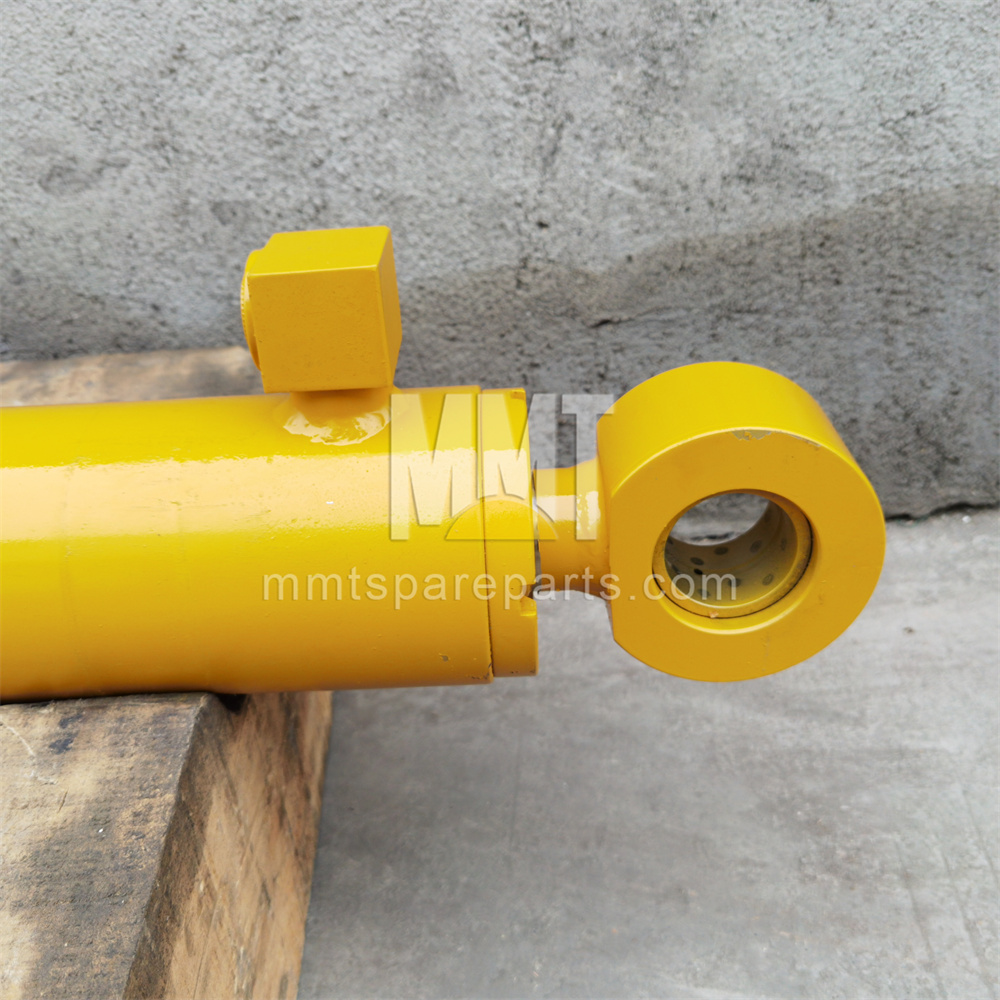

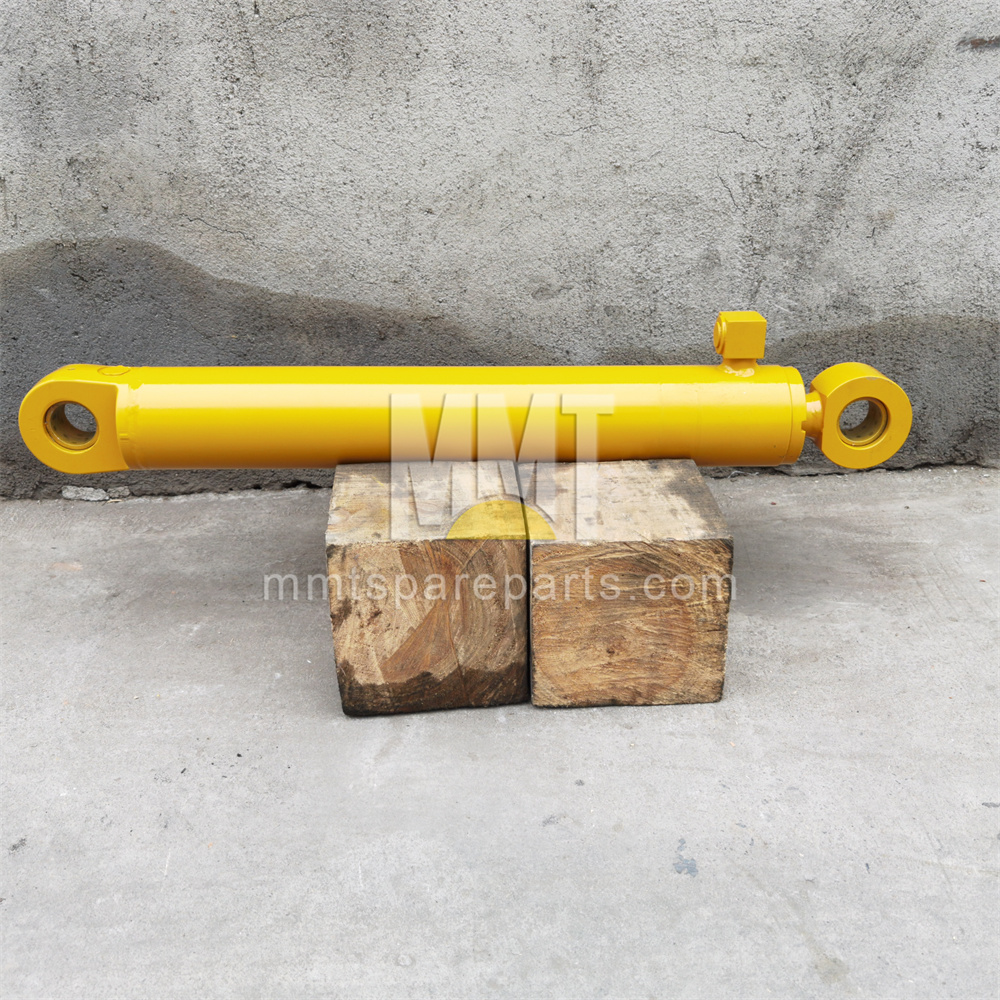

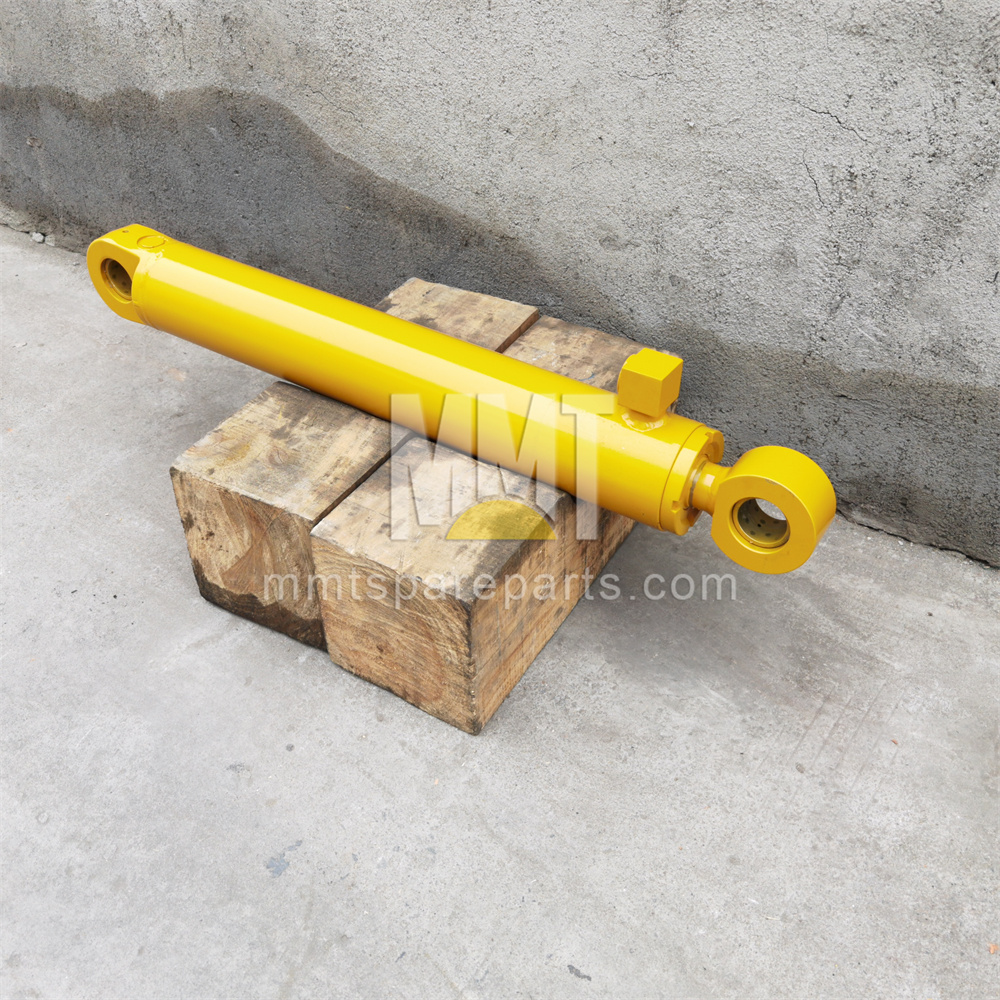

966D Steering Cylinder 6E-5024

Description:
Complete MMT hydraulic cylinder arrangements actuate numerous machine components ranging from steering controls to refined movement of blades, buckets or other attachments.

Cylinder Barrel: A sealed container filled with hydraulic oil.

Piston: Divides the cylinder into two chambers (rod-side chamber/rod-less chamber), moving under pressure differences.

Piston Rod: Connects the piston to external loads, transmitting thrust or pull force.

Sealing System (Seals): Prevents hydraulic oil leakage and maintains system pressure.

Working Process

Pressurization Stage: The hydraulic pump injects high-pressure oil into one side of the cylinder (e.g., the rod-less chamber), pushing the piston towards the other side.

Working Stage: The piston rod extends or retracts, driving mechanical components (such as excavator booms or loader buckets) to complete lifting, pushing, or pulling actions.

Oil Return Stage: Low-pressure oil from the other chamber returns to the oil tank, and the cycle repeats.

Application Advantages in Construction Machinery

High Power Density: Generates significant thrust from a small volume (e.g., excavators can output tens of tons of pressure).

Precise Control: Achieves accurate speed and position control by adjusting flow rate and pressure.

Reliability and Durability: Designed to withstand extreme loads and harsh working conditions (e.g., mines, construction sites)

Double-Acting Hydraulic Cylinders

Function: Provide controlled force in both extension and retraction via hydraulic pressure on both sides of the piston.

Applications: Used for precise bidirectional movement in excavator arms, bulldozer blades, and loader buckets, enabling complex operations like digging, lifting, and tilting.

156-0160

156-0664

156-0674

156-0679

156-0694

156-0697

156-0737

156-0848

154-6938

156-5512

1560160

1560664

1560674

1560679

1560694

1560697

1560737

1560848

1546938

1565512
