HML Series 12 -72kVA Modular UPS(208V)

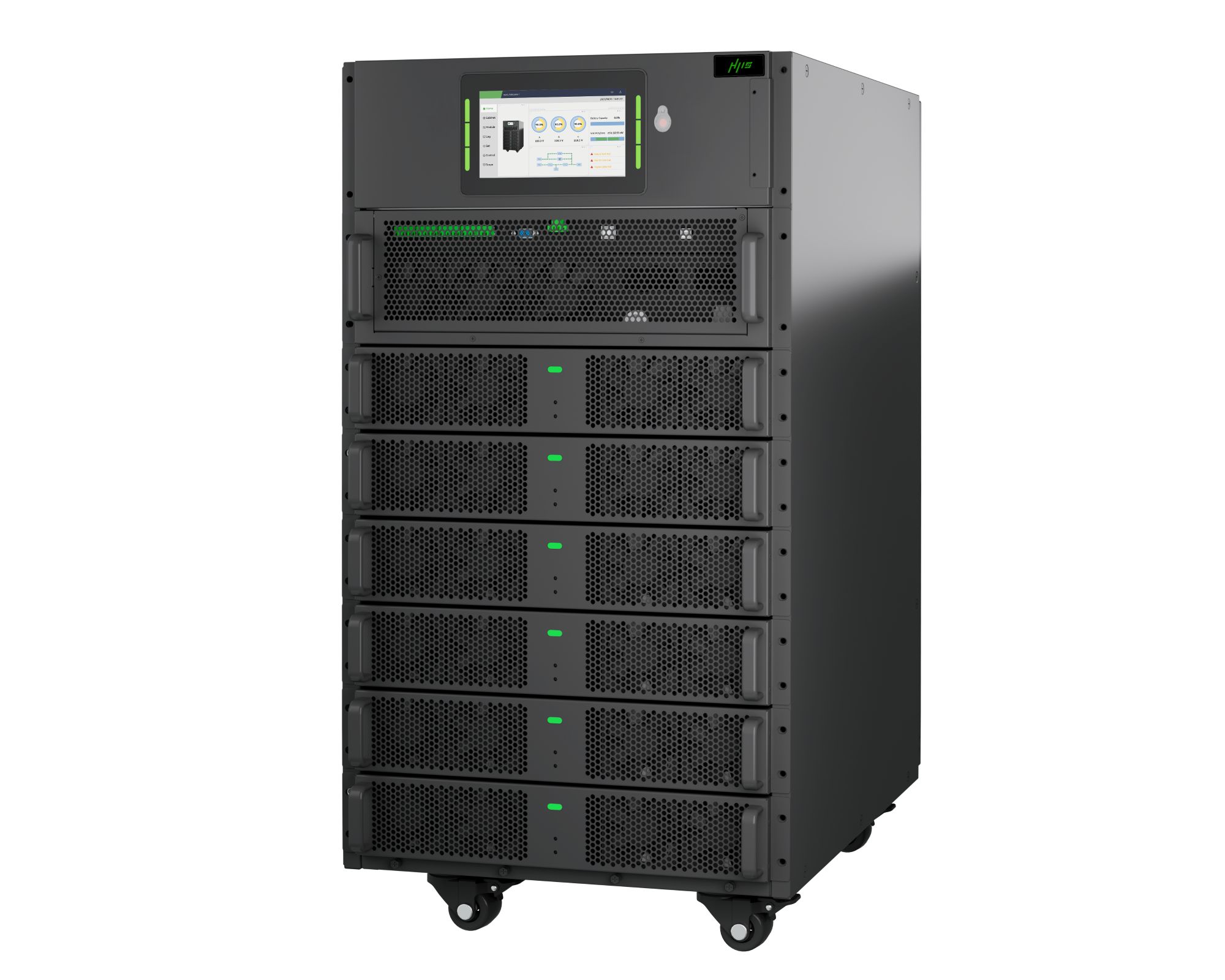

HM Series:10~120kVA Modular UPS

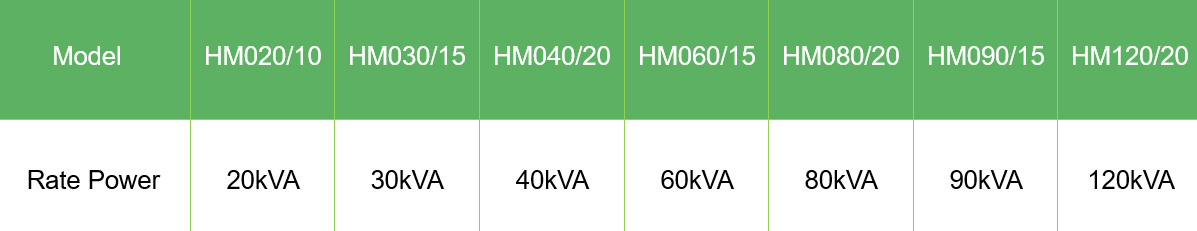

Power range:10~120KVA

Operation:3P/3P,3P/1P,1P/1P, Online double conversion

Characteristics

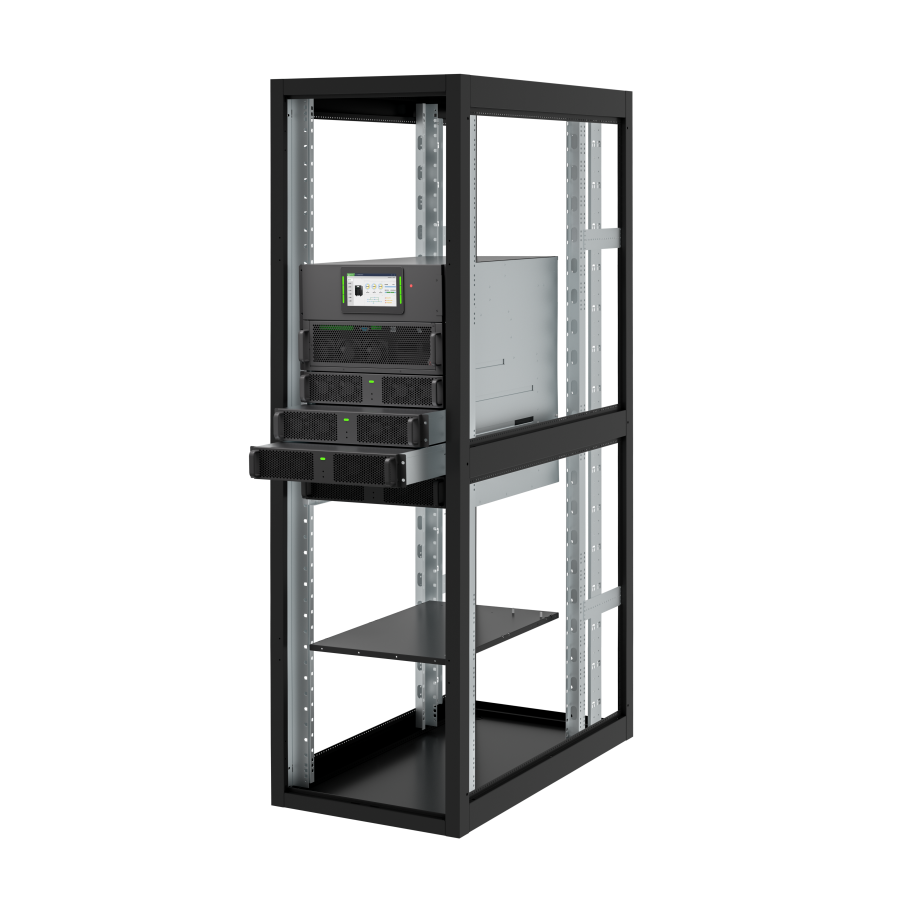

1.Mounted in 19-inch rack, or stand alone.

2.7-inch touch LCD, with IoT functions.

3.High reliability and environment adaptability, with protection of components level.

4.Extreme high power density, 20kW in 2U, friendly for space and maintenance.

5.Option of 30A charger module for long backup

 applications

Main Input

• Input: 3P5W (3P+N+PE)
• Rate Voltage: 380/400/415VAC(L-L); 220/230/240VAC(L-N)
• Rate Freq.: 50/60Hz
• Input PF: >0.99
• Current Distortion: THDi < 3% (100% Linear load)
• Voltage Range: 304～478VAC (L-L) full load; 304～228VAC (L-L) power derate from 100% to 75%
• Freq. Range: 40-70Hz

Battery

• Rate Voltage: ±240VDC (32-44 batteries settable)
• Charging Capacity: 20%*Pout
• Charging Accuracy: ±1%

Bypass

• Rate Voltage: 380/400/415VAC (L-L); 220/230/240VAC (L-N)
• Voltage Range: -40% - +25%, Settable (default -20%～+15%)
• Overload: 110%, long time operation; 110%<load<125%, 5 mins; 125%<load<150%, 1 min; >150%, 1 second

Inverter

• Rate Voltage: 380/400/415VAC (L-L); 220/230/240VAC (L-N)
• Rate Freq.: 50/60Hz
• Output PF: 1
• Voltage Accuracy: ±1.0%
• Load Response: <5% (20% - 80% -20% step load)
• Recovery Time: <20ms (0% - 100% -0% step load)
• Output THDu: <1% (linear load), <5% (non-linear load according to IEC 62040-3)
• Overload: 110%, 1 hour; 125%, 10 mins; 150%, 1 min; >150%, 200ms
• Frequency Accuracy: 0.1%
• Synchronize Window: Settable, ±0.5Hz-±5Hz, default ±3Hz
• Slew Rate: Settable, 0.5Hz/S-3Hz/S, default 0.5Hz/S
• Phase Accuracy: 120°±0.5°

System

• Efficiency: Normal Mode ≥ 96%; Battery Mode ≥ 96%
• Display: LED + 7 inch touch LCD
• Certification - Safety: IEC62040-1, IEC60950-1
• Certification - EMS: IEC62040-2; IEC61000-4-2 (ESD); IEC61000-4-3 (RS); IEC61000-4-4 (EFT); IEC61000-4-5 (Surge)
• IP Degree: IP20
• Configuration: USB, RS232, RS485, Dry contact, Cold start
• Option: SNMP card, AS400 card, Parallel kit, LBS, Air filter
• Environment:
  • Operation: 0-40℃
  • Storage: -25℃~70℃
  • Humidity: 0-95% (non-condensing)
• Noise (dB at 1 meter):
  • 65dB @ 100% load
  • 62dB @ 45% load
  •

Dimensions (WDH) mm

• Cabinet:
  • HM020/10: 482*700*396 (9U, wheels not included)
  • HM030/15: 482*700*662 (15U, wheels not included)
  • HM040/20: 482*700*840 (19U, wheels not included)
• Module: 440*555*85 (2U)

Note: The products will continue to be innovative and optimized, which may lead to asynchronized updates of the actual product and promotional materials. Therefore, this document is for reference only and does not constitute any offer or commitment.
