Product details

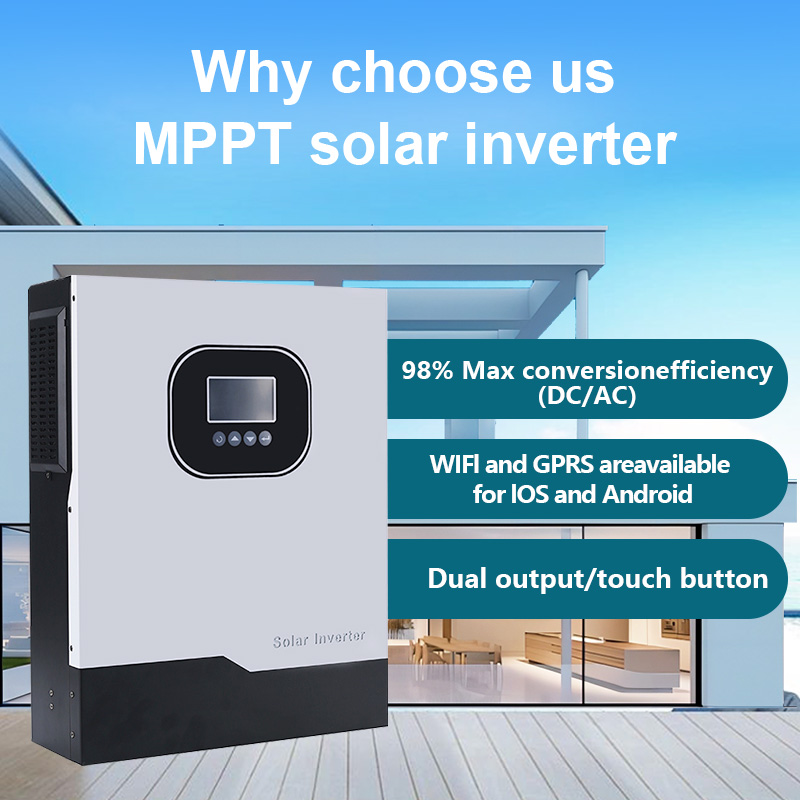

First, unique highlights of the 6.2K on off grid solar inverter for the solar energy system

Strong power options:

With two power modes available, the 6.2kW version is sufficient to handle diverse needs, from household appliances to large industrial equipment, so you can have plenty of power support in any scenario.

Emergency backup support:

Whether it is a sudden natural disaster or power failure, this inverter can act as a solid backing for you to ensure that critical equipment is constantly powered in an emergency, so that you can enjoy a worry-free life.

Top speed switching technology:

When the main power supply fails, the inverter can quickly switch to battery-powered mode in an amazing 0.02 seconds, minimizing the impact of power outages on the device.

Wide compatibility:

Our inverters support a wide range of load equipment, such as oxygen generators, fish tanks, lifts, air conditioners, lighting and refrigerators, so you can get a stable and reliable power supply whether you need to power medical equipment or home appliances.

Perfect integration with photovoltaic panels:

The inverter is combined with the photovoltaic panel to form a set of efficient solar power generation system. When the sun is full, photovoltaic panels convert solar energy into electricity, providing a continuous stream of green energy for the home. At the same time, the excess electricity will be stored in the battery for emergencies, both reducing the dependence on the grid and saving you electricity bills.

Second, the Pv Solar Inverter For Home Use significant advantages

Solar power inverter High efficiency:

Hybrid inverters for the solar system can smoothly switch between a variety of energy sources, such as solar generators, batteries, and municipal power supplies, thus significantly improving the efficiency of energy conversion. This efficient energy conversion mechanism helps reduce energy waste and improve the overall system energy efficiency.

Flexibility:

This type of inverter allows the use of a variety of energy inputs, such as solar energy, municipal power supplies, batteries, etc., and can flexibly choose different energy sources for power supply according to actual needs. This flexibility enables hybrid inverters to adapt to a variety of complex application scenarios and meet the diverse needs of different users.

Control:

Hybrid inverters of Solar On And Off Grid Inverter are usually equipped with an independent control system and monitoring function to monitor key parameters such as energy flow, energy output and battery status in real time. Based on this real-time data, the inverter can automatically adjust the output and distribution of energy, ensuring stable operation and efficient performance of the system.

Model	KLW-MAX-6.2KW
Phase	1-phase
Rated output power	6200W
Maximum solar charging current	120A
GRID-TIED OPERATION
PV input (DC)
Nominal DC voltage/Maximum DC voltage	360VDC/500VDC
Start-up voltage/Initial feeding voltage	90VDC/120VDC
MPPT voltage range	90VDC~450VDC
Num. Of MPPT trackers/Max. Input current	1/27A
GRID OUTPUT (AC)
Nominal output voltage	220/230/240VAC
Output voltage range	195~253VAC
Nominal output current	26.2A
Power factor	>0.99
Feed-in grid frequency range	49~51±1Hz
EFFICIENCY
Maximum conversion efficiency (DC/AC)	98%
TWO LOAD OUTPUT POWER
Full load	6200W
Maximum main load	6200W
Main load cut off voltage	44VDC
Main load return off voltage	48VDC
OFF-GRID OPERATION
AC INPUT
AC start-up voltage/auto restart voltage	120-140VAC/180VAC
Acceptable input voltage range	90-280VAC or 170-280VAC
Maximum AC input current	30A
Nominal operating frequency	50/60Hz
Surge power	12400W
PV INPUT(DC)
Maximum DC voltage	500VDC
MPPT voltage range	90VDC~450VDC
Num. Of MPPT trackers/Max. Input current	1/27A
BATTERY MODE OUTPUT(AC)
Nominal output voltage	220VAC
Output waveform	Pure sine wave
Efficiency (DC to AC)	94%
BATTERY & CHARGER
Nominal DC voltage	48VDC
Maximum solar charging current	120A
Maximum AC charging current	80A
GENERAL
PHYSICAL
Dimension, DWH (mm)	430330110
Cartoon Dimension, DWH (mm)	485385180
Net weight (kgs)	9.3KG
Gross weight (kgs)	10.5KG
INTERFACE
Communication port	RS232/WIFI/REMOVE LCD/GPRS
ENVIRONMENT
Operating temperature	-10~50℃

Solar Home Inverter Wholesale Price with the charging of solar panel
