Product details

Unmanned Driving Auto Steering Motor for Smart Agriculture

Product Performance

The development of automated autopilot steering motor for driverless tractor was mainly targeted at precision agricultural machinery. It can complete agricultural machinery operations, achieve precise positioning, improve agricultural productivity, effectively use agricultural resources, and protect the ecological environment.

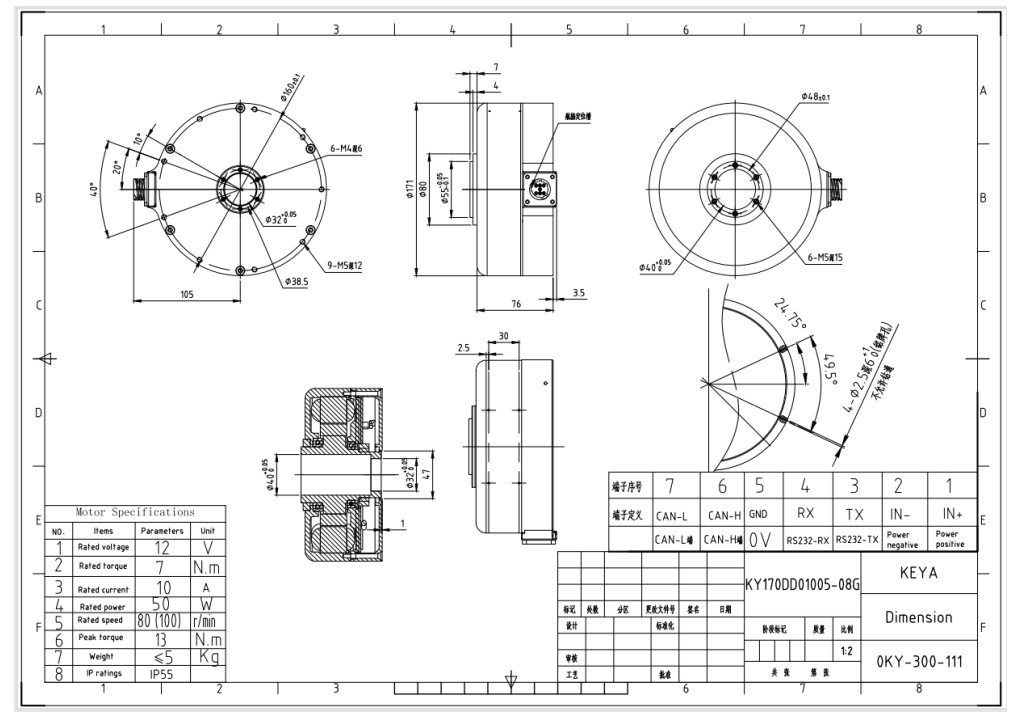

Product Drawing

Working Mode Configuration Table

Operating mode	Control signal	Feedback part
Speed mode	RS232	CAN	Linear encoder
Position mode	CAN	Linear encoder

Technical Parameters

Parameter	Label	Parameter value	Unit
Voltage	U	9-30	VDC
Max continuous current	Ic	10	A
Max peak current	Imax	20	A
PWM switching frequency	fpwm	10	kHz
Output encoder power supply	+5Vout	5	VDC
	Icc	100	mA
Under voltage protection	Vu	7 (adjustable)	V
Over voltage protection	Vo	32(adjustable)	V
Operating temperature	Industrial grade (standard product)	-25 ~ +55	℃
	Military grade	-40 ~ +65	℃
Storage temperature	Industrial grade (standard product)	-35 ~ +65	℃
	Low temperature grade	-55 ~ +85	℃

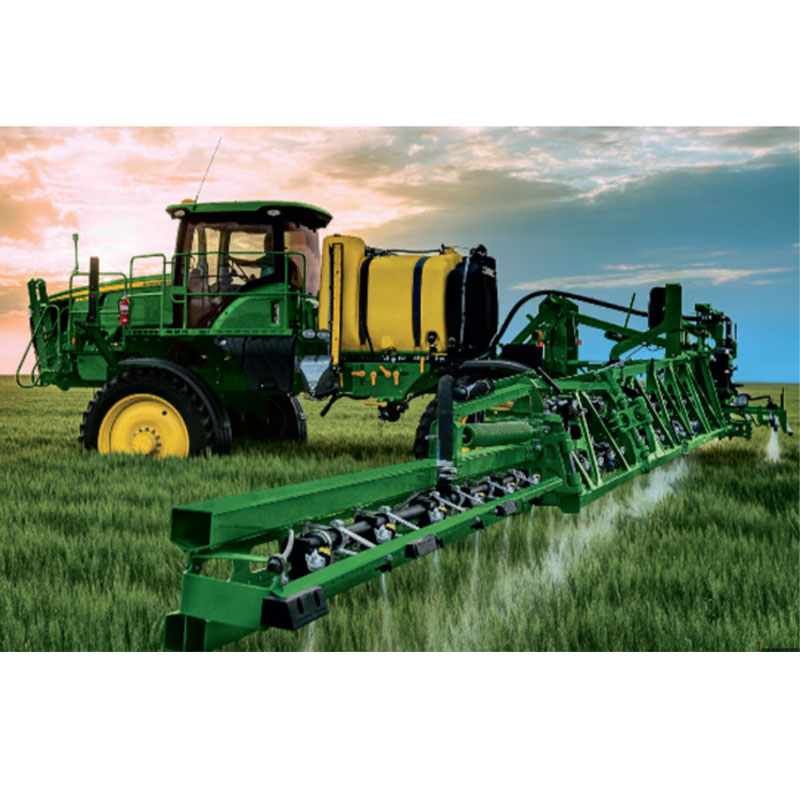

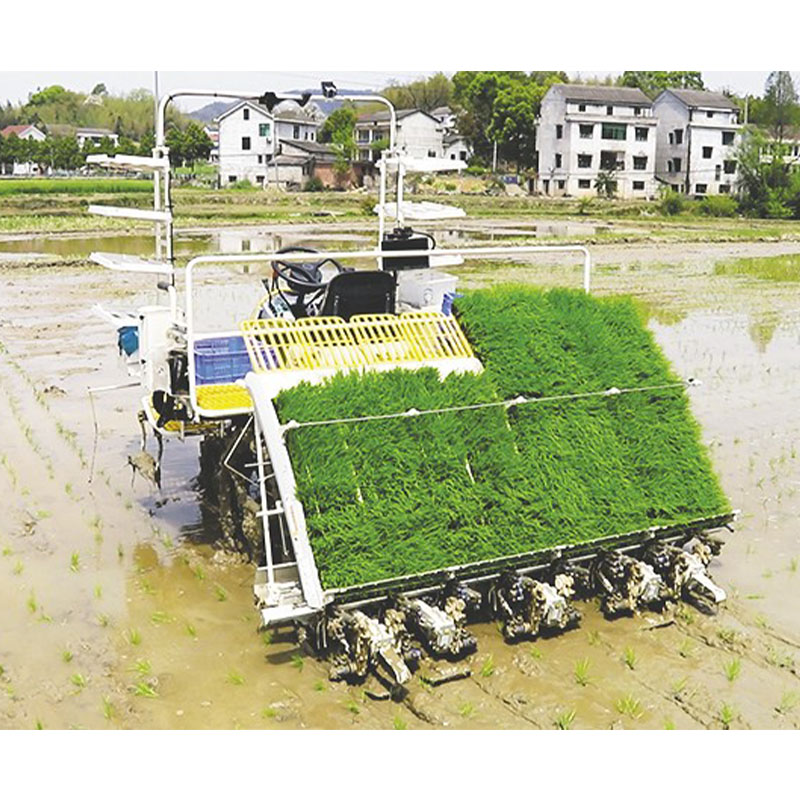

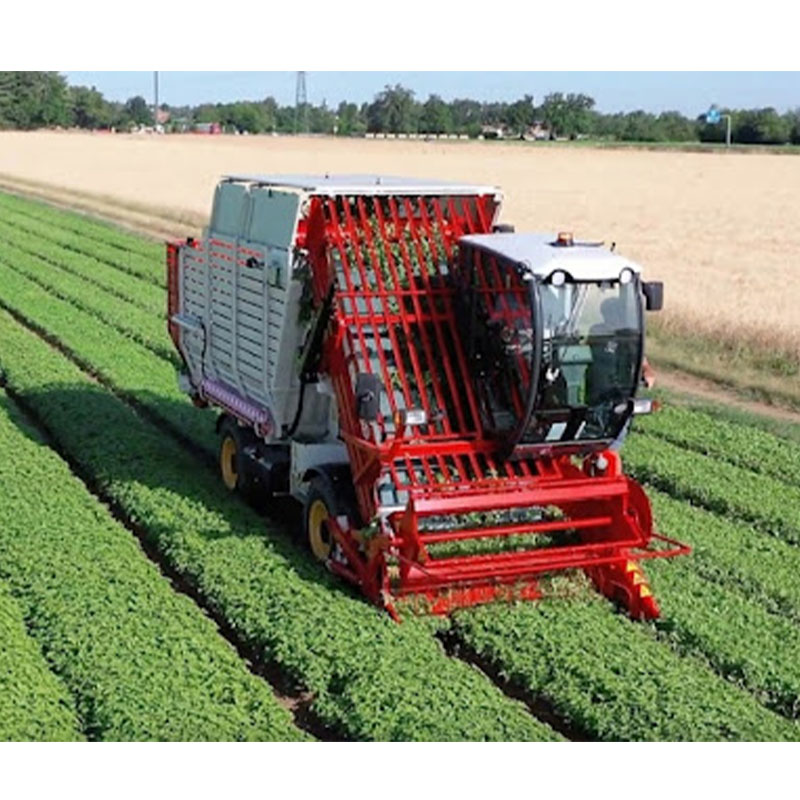

Adapt for Various Tractors

Applications
