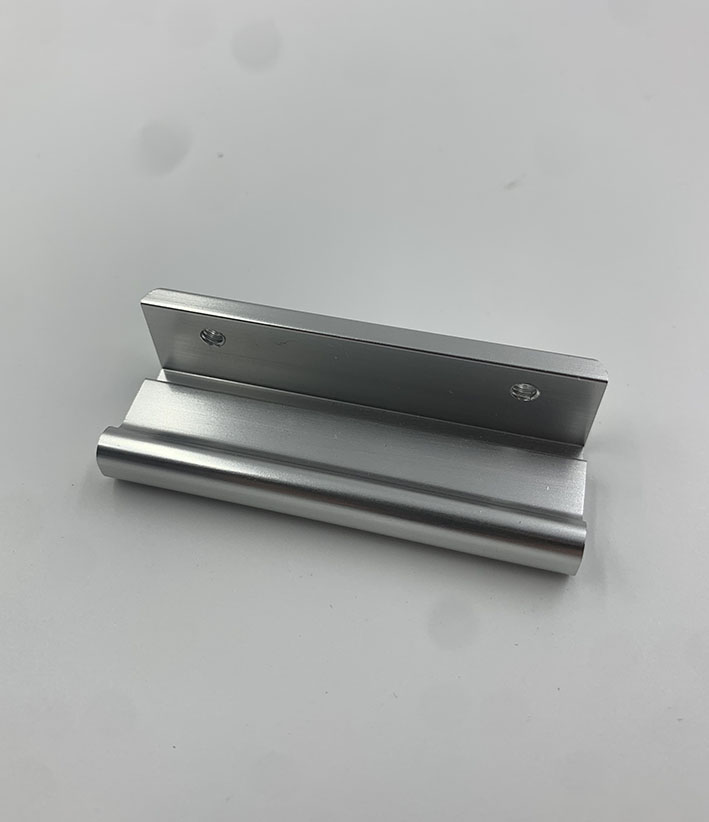

Precision Aluminum Alloy Support and Guide Profile for Industrial Equipment

ENGINEERED FOR STABILITY & ACCURACY

Introduction

This precision-engineered custom aluminum extrusions profile is crafted from 6061-T6 aluminum alloy through extrusion, forging, heat treatment, and precision machining. The profile integrates mounting and fixing structures with arc-shaped guide surfaces, offering high strength, dimensional accuracy, and excellent adaptability for various industrial applications. As a core support or guide component, it provides reliable structural support and precise linear guidance for automated equipment, testing instruments, and more. It is an essential accessory to ensure the stable and accurate operation of components in industrial environments.

Daily Functions

This profile, made from high-quality aluminum extrusion, is primarily used in the support and guide systems of industrial automation equipment. It serves as a positioning support for assembly line components, a guide structure for probes in testing instruments, or a rail for sliding parts in small equipment. It ensures stable component support and precise motion control for various industrial tasks.

Application Scenarios

Automated Production Lines

Used as part positioning brackets in electronic product assembly lines, this profile ensures precise part placement and assembly accuracy.

Testing Equipment

Applied as probe guide structures for PCB board testing instruments, it assists probes in moving accurately, thus enhancing detection accuracy.

Small Industrial Equipment

Used in small industrial devices such as laboratory analytical instruments, this profile serves as slider rails, enabling linear motion and ensuring equipment functionality and accuracy.

Processing Technology

Extrusion Molding

Durable Aluminium 6061 aluminum alloy ingots are selected, heated, and melted, then extruded through custom molds to create profile blanks with basic structural features.Forging Strengthening

Forging is applied to key stress-bearing parts of the blanks to enhance local structural strength and improve compactness.

Heat Treatment

Through solution + aging heat treatment processes (such as T6 treatment), the internal structure of the aluminum alloy is optimized, significantly improving the strength and hardness of the profile.

Precision Machining

CNC milling and drilling processes are used to precisely machine mounting holes and arc-shaped guide surfaces, ensuring dimensional accuracy and structural adaptability for different setups.

Surface Treatment

After degreasing and passivation, an anodizing process is applied to form a silver-gray matte finish, improving corrosion resistance and wear resistance.

Material: 6061-T6 Aluminum Alloy

Surface Finish: Anodized Silver Matte

Length: Customizable

Width / Thickness: 30 - 60mm / 5 - 10mm

Processing Precision: Hole Position Precision ±0.05mm, Straightness ≤0.1mm/m

Load-Bearing Capacity: ≥20kg per component
