2 year agoWaterproof Design: The most prominent feature is their ability to withstand exposure to water. This makes them suitable for use in wet environments or applications where there is a risk of water ingress. The waterproofing can be achieved through various means such as sealed enclosures, gaskets, and special coatings.
Precise Movement: Electric cylinder linear actuators offer precise control over movement. They can be programmed to move at specific speeds and to stop at exact positions, ensuring accurate and repeatable operations.
High Load Capacity: These actuators are capable of handling significant loads, making them suitable for a wide range of applications. The load capacity can vary depending on the model and specifications.
Energy Efficiency: Electric actuators are generally more energy-efficient than hydraulic or pneumatic systems. They consume less power and generate less heat, resulting in lower operating costs and a reduced environmental impact.
Compact Design: Despite their power and capabilities, waterproof electric cylinder linear actuators often have a compact design. This makes them easy to install and integrate into existing systems, saving space.
Durability and Reliability: Built to withstand harsh conditions, these actuators are designed for long-term reliability. They are made from high-quality materials and are engineered to be durable and robust.
|
Product Name
|

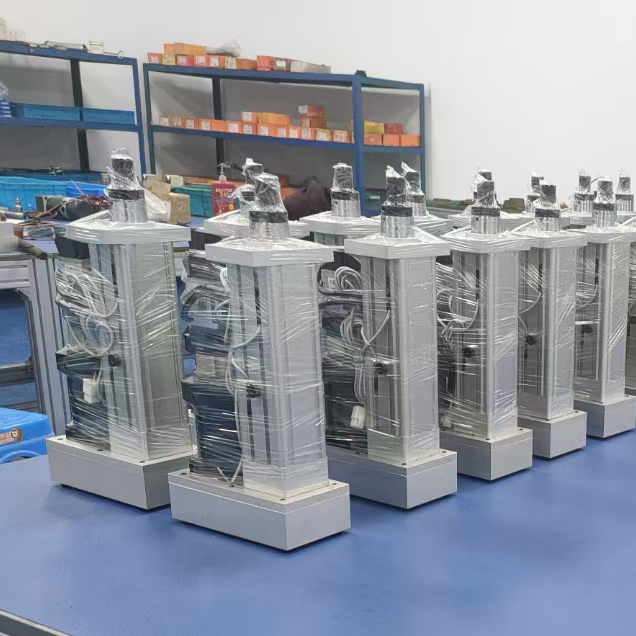

Waterproof Electric Cylinder Linear Actuators 800MM Stroke Electric Servo Cylinders
|
|||
|
Screw lead / pitch (mm)
|
5--10
|
|||
|
Max. Power of Motor (W)
|
400W----750W
|
|||
|
Max. Rated Thrust
|
500KG/1102.31lb
|
|||
|
Max. Speed
|
250---500MM/S
|
|||
|
Max. stroke
|
800MM
|
|||
|
Rated Driving Torque (N.m)
|
1.27---2.39NM
|
|||
|
Max. Ball Screw Diameter (mm)
|
16
|
|||
|
Rated Dynamic Load of Ball Screw (kgf)
|
1270---1350
|
|||
|
Axial Backlash (mm)
|
0.02-0.04
|
|||
|
Lead Error Every 300mm (mm)
|
0.023
|
|||
|
Repeatability Accuracy (mm)
|
0.02
|
|||
|
Repeatability Accuracy (mm)
|
60/80
|
|||
|
Flange Size of Optional Stepper Motor Series (mm)
|
57/60/86
|
|||
|
Flange Size of Optional Gear Box Series (mm)
|
60/80/90
|
|||


high-quality products. Please contact us, then we can send the speficiations to you
