Monblock valve

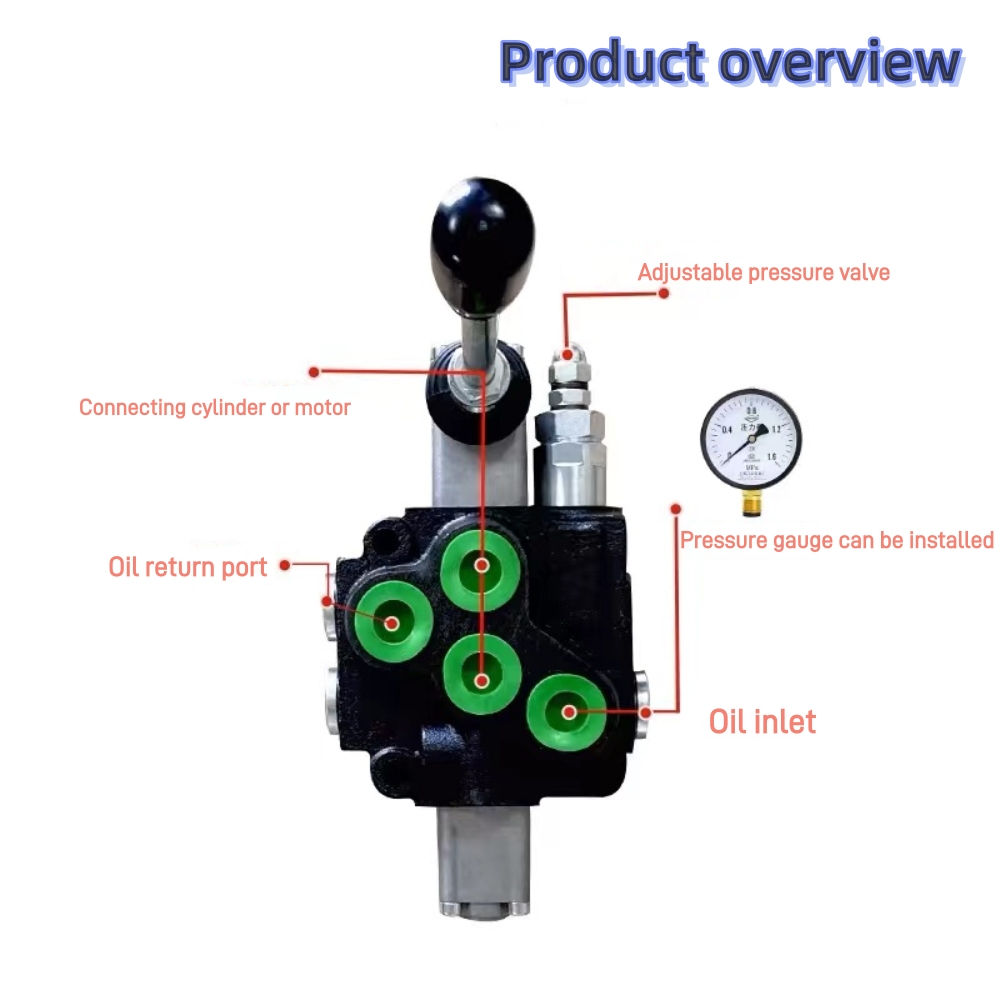

ZT-L12 series multi-way valve is a medium and high pressure integral reversing valve. The valve is equipped with a relief valve and a check valve. The relief valve pressure is adjustable. The check valve prevents oil backflow. The reversing valve slide valve functions are A, 0, Y, etc., which can be combined arbitrarily. The reversing handle has two installation forms to facilitate operation in different directions. The valve adopts a parallel oil circuit and is equipped with two return oil ports. It can be connected or separated through a 1/4 plug hole. The 1/4 hole is blocked to make the middle return oil port a pressure output port, which is connected to other hydraulic components to provide a power source. The specially designed sealing method makes the valve have excellent sealing performance. It is used for hydraulic control of various actuators. The control methods are manual, pneumatic (electromagnetic valve), and electric (micro switch) can be used with power units. WZT-112 is with micro switch. SQZT-L12 is with pneumatic. We support customization. If you need it, please contact us.

Our company also produces Balanced Valve, Synchronous Motor, High Pressure Valve, etc.
