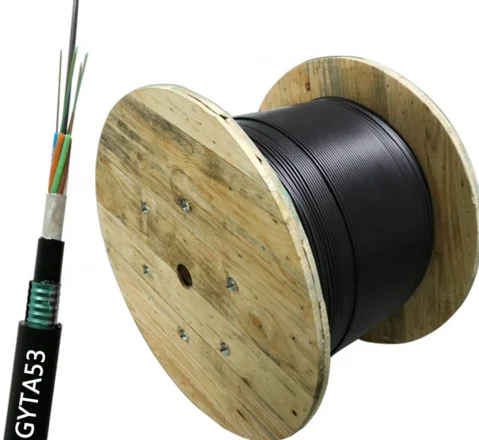

double jackets singlemode GYTA53 fiber optic cable

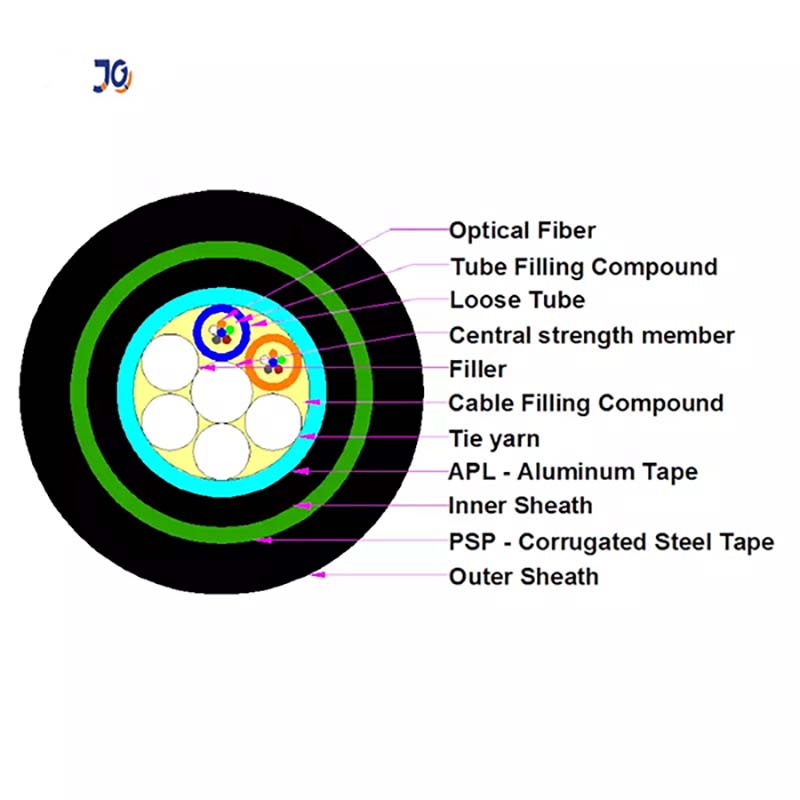

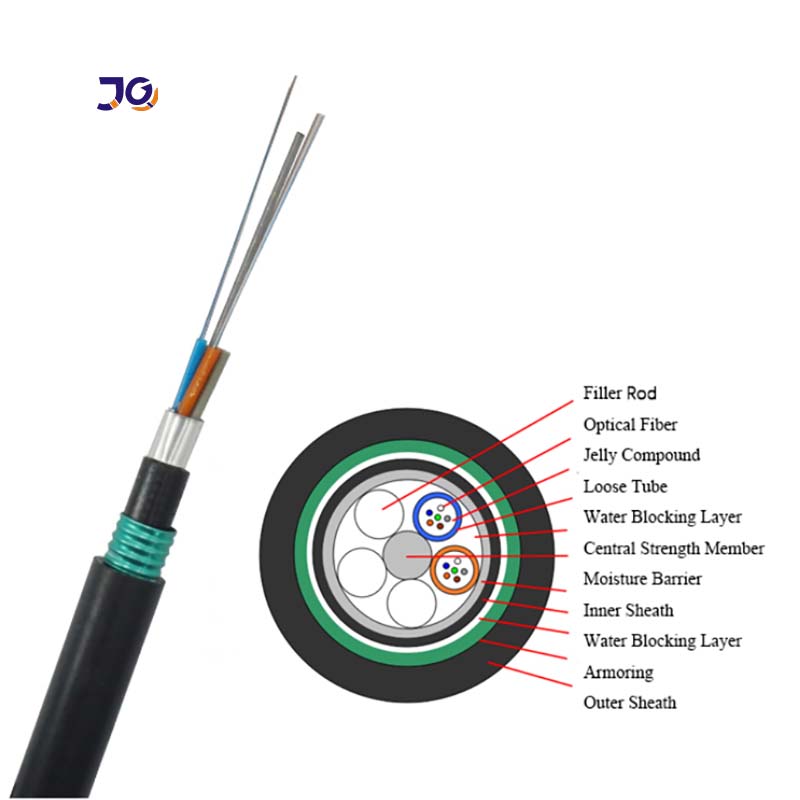

GYTA53 Outdoor Optical Cable is a steel belt armored outdoor direct burial fiber cable. Burial fiber optic cable The center of the cable core is a metal-reinforced core. The loose tube (and filling rope) is twisted around the central reinforcing core, coated with a plastic aluminum strip (APL) longitudinally, and extruded with a layer of polyethylene inner sheath, and the double-sided plastic coated steel strip (PSP) is longitudinally wrapped to form a cable with polyethylene sheath. Our GYTA53 fiber optic cable is designed for long-distance and local area network (LAN) communication.

direct burial fiber optic

Item	GYTA53 singlemode 24 cores directly burial fiber optic cable
Attenuation Coefficient 1310nm dB/km	≤0.35
Attenuation Coefficient 1550nm dB/km	≤0.22
Number of loose tube (PBT)	2 loose tubes , each tube contains 12 fibers
Central strength member	steel wire
inner jacket material	PE
outer jacket material	PE or LSZH or frame retardant
Tension (long term )	1500N
Tension (short term )	3000N
Crush (long term )	1000N
Crush (short term )	3000N
cable diameter	12.0MM

The PE sheath protects the cable from ultraviolet radiation, while the steel wire serves as the central strength member. The loose tube filling compound and 100% cable core filling ensure reliable transmission. APL and PSP layers enhance moisture-proof performance, providing added protection against the elements.

Our direct burial fiber optic cable features excellent mechanical and temperature performance. The loose tube is made of high-strength, hydrolysis-resistant material for added durability. A special tube-filling compound provides critical protection for the fiber. The cable exhibits crush resistance and flexibility, making it suitable for demanding applications.
