Product details

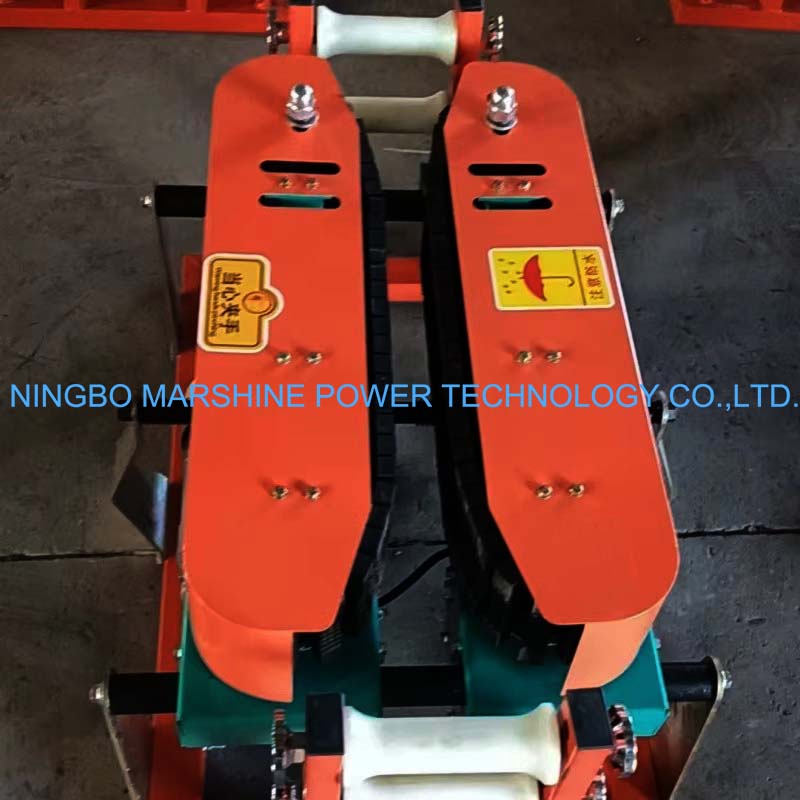

DLJ180 Electric Powered Dual-axis Drive Cable Belt Conveyor

Our MARSHINE was a Chinese manufacturer specializing in producing the electric power equipment and tools like the hydraulic cable pullers or the cable winch pullers for more than 10 years. And this MARSHINE DLJ180 Electric Powered Dual-axis Drive Cable Belt Conveyor as a cable pulling machine with robust frame and outstanding performance is a reliable equipment for your teams to deal with the cable installation tasks. As a universal machine, we offer this conveyor in competitive prices. With the international certifications, this machine can guarantee your safety and the efficiency well.

This MARSHINE DLJ180 Electric Powered Dual-axis Drive Cable Belt Conveyor is a powerful cable pulling machine which was designed for the efficient and continuous cable installation performance while ensuring the operator's personal safety. Been equipped with a dual-axis drive system, it is able to provide the outstanding traction force and the stable operation, so that to reduce the manual labor while improving the productivity during the cable laying projects. With its robust electric motor and the reliable belt transmission, this conveyor can ensures the smooth, reliable cable feeding for the long-distance heavy-duty power line constructions.

Equipped with the dual-axis drive system, this MARSHINE DLJ180 Electric Powered Dual-axis Drive Cable Belt Conveyor can provides the strong pulling force and the stable cable feeding performance while reducing the slippage. Been applicable with the cables from 30mm to 150mm in diameter, this machine owns the higher efficiency that capable of handling the heavy cables continuously, so that to evidently improve the installation speed. With the powerful electric motor to offer the power, this machine is able to ensure the eco-friendly yet energy-saving performance while offering the more quiet operations during the city constructions. Due to its durable belt conveying design, this equipment can reduce the cable damage and extend its service life. With the adjustable cable radial clamping force, this machine can fit for various of the cable sizes and the laying conditions well, and so that to offers the flexible operation in the cable installation tasks. Meanwhile, its safety protection that built with the safety guards and the overload protection can also ensures the operator security, so that to reduce the labor costs and improve your team's construction efficiency well.

This MARSHINE DLJ180 Electric Powered Dual-axis Drive Cable Belt Conveyor is ideal for the power transmission and the distribution line projects, and can be used in the underground cable laying operations, or for the telecoms and the fiber optic cable installations as well. Further more, this machine is also suitable for the utility construction and the infrastructure projects, or the long-distance cable feeding operations in the tunnels, ducts, or the conduits.

Technical Parameters

Model	DSJ-180
Diameter of cables(mm)	φ30-φ150
Rated output force(KN)	5
Output speed(m/min)	6
Cable radial clamping force	Can be adjusted by itself,the maximum clamping force ≤5N.m
Motor power(kw)	0.55x2
Weight(kg)	155
Size(mm)	920X500X370
