Product details

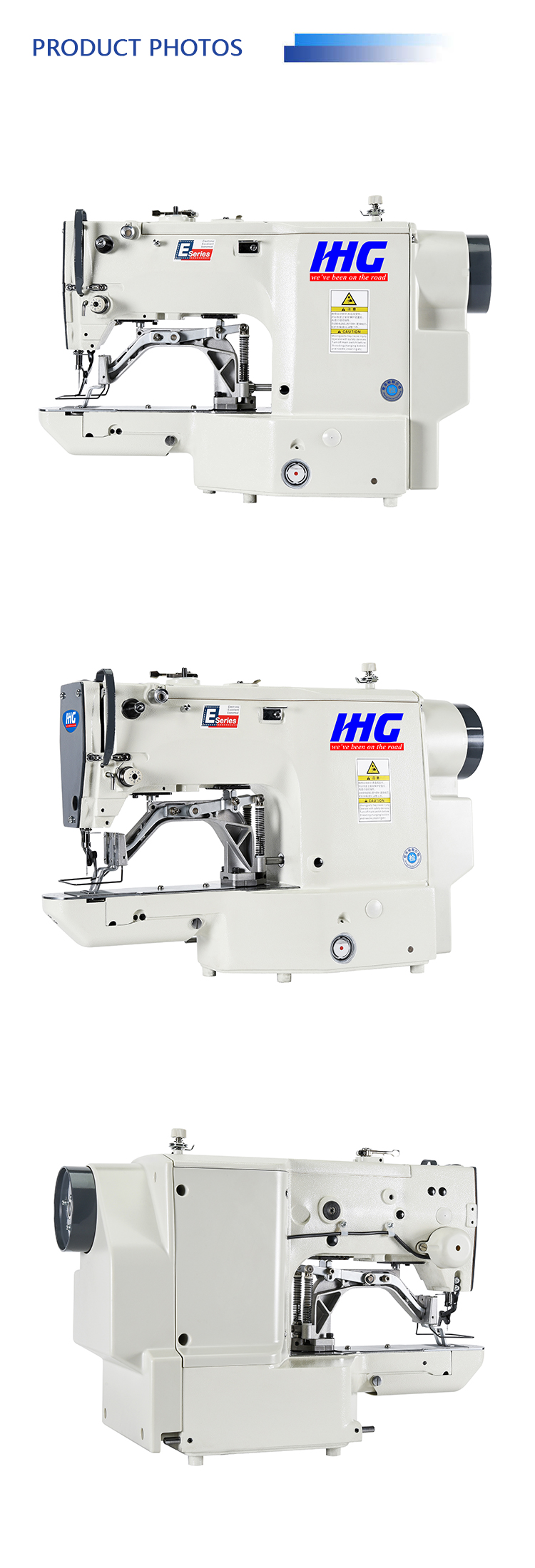

IH-430D bar tacking sewing machine is a kind of sewing machine used for reinforced stitching. It’s a kind of industrial sewing machine sewing the stressed parts of garments, quite suitable for garment, knitting, sweater, suit, jeans and other manufacturers.

Product features of bar tack sewing machine:

1. Suitable for bar-tack sewing process of pocket and labels;

2. Direct drive servo motor: save 35% electric charge than usual energy-saving motor, stable speed, precise stitching and silent operation;

3. High bar tack sewing efficiency: auto cutting, speed adjustable;

4. Multiple applications: with different accessories IH-430D can sew different types of stitching effect such as usual reinforced stitch, semi-circle, eyelet stitch, and circle bar-tack.

Product configuration bar tack stitch machine IH-430D:

Item

IH-430D

Sewing area

40*30mm

Stitching type

Single needle flat bed lock stitch

Max speed

3200rpm

Button sewing size

Outer diameter of button 3-8mm(*1)

Stitch length

0.05~12.7mm

Max needles

210,000

Pattern memory

Inner memory unit (89 sewing pattern reserved)

Needle

DPx17

Hook type

Semi-rotation standard rotary hook

Presser foot type

Impulse motor drive (17mm max)

Presser foot/button presser lifting

13mm max

Presser foot adjustment range

4-10mm

Sewing motor

Direct drive motor 550W

Power input

AC220V 50~60HZ

Grounding wire protection

Product size

1200*660*1130mm

Packing size

1360*730*1330mm wooden box

Weight

150kg

To reinforced sewing particular part on fabric with industrial bar tacking sewing machine can automatically operate this process, shorten the working time, improve the production efficiency, reduce the production intensity of workers, and save manpower.

The highest speed of electronic bar tack stitch sewing machine is 3200rpm, which can start or stop quickly; In the sewing range of 30mm in the longitudinal direction and 40mm in the transverse direction, it can correspond to a variety of stitching shapes; Flexible tension is adopted. The tension of the thread can be set to correspond to various sewing conditions by operating the control panel. This data can be stored and reused; It solves the problem of oil contamination in sewing products.


430D

430D1



bar



111





Brand IHG
Model IH-430D
Max.Sewing Speed 3200rmp/min
Stitch Pattern Single-needle flat seam
Motor AC servo motor (550W)
Feeding Mode

Y-$ interval fabric feeding

(impulse motor driven mode)

Power 550W 220V±10% 10A
Product Advantage High-Speed Sewing;
Sewing Area 40*30mm
Low Noise And Low Vibration;
Low Power Consumption;
It realizes excellent sewing quality and high production efficiency;
--
