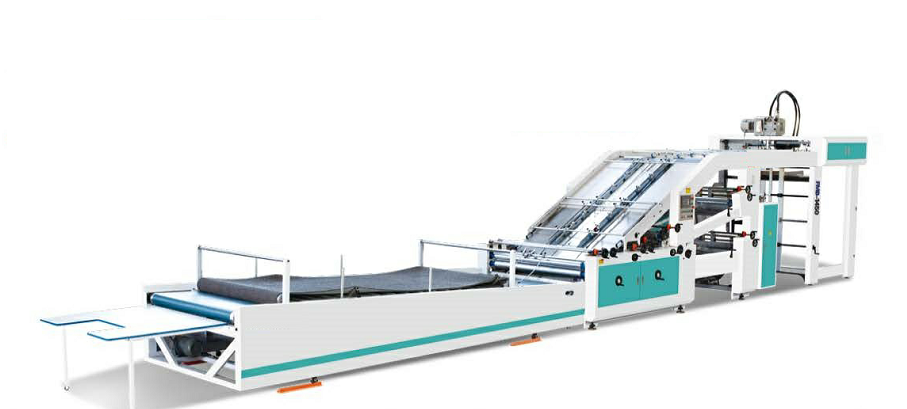

5 ply laminator
9 month ago
3 5 7 layer corrugated cardboard carton box making machine
|
Project 项目 |
Claim 要求 |
Claim 要求 |
Claim 要求 |
|||
|
Model 型号 |
SJ-Q1300B |
SJ-Q1450B |
SJ-Q1600B |
|||
|
Maximum size (width X length) 最大裱贴尺寸（宽X长） |
1300X1300（mm） |
1450X1300（mm） |
1650X1300(mm) |
|||
|
Minimum sticker size (width X length) 最小裱贴尺寸（宽X长） |
400X400(mm) |
500X500(mm) |
||||
|
Applicable face paper weight 适用面纸克重 |
200-500 g/m2（Standard cardboard） |
|||||
|
Application of bottom paper 适用底纸 |
A、B、C、E、F楞 |
|||||
|
Fit layer 贴合层数 |
Face paper + corrugated paper = 3 layers or face paper + double layer corrugated paper = 5 layers (total thickness is not more than 10mm) 面纸+瓦楞纸=3层或面纸+双层瓦楞纸=5层（总厚度不大于10mm） |
|||||
|
Fit accuracy 贴合精度 |
±1.5(mm)（Depending on the paper） |
|||||
|
Mechanical speed 机械速度 |
120m/min（Theoretical value） |
100m/min（Theoretical value） |
||||
|
Productivity 生产效率 |
0-7200 sheet/hour |
0-6000 sheet/hour |
||||
|
Paper paper height 面纸码纸高度 |
1600mm |
|||||
|
Paper table load bearing 面纸台承重 |
1500kg |
|||||
|
Base paper height 底纸码纸高度 |
400mm |
|||||
|
Total power 总功率 |
13kw |
14kw |
||||
|
Machine voltage 机器电压 |
Three phase(三相)380V |
|||||
|
Pressure machine effective pressing length 压输机有效压合长度 |
3600mm |
|||||
|
Indentation height 压输高度 |
250mm |
|||||
|
Bonding medium 粘合介质 |
Corn starch glue 玉米淀粉胶 |
|||||
|
Machine shape (length x width x height) 机器外形（长X宽X高） |
12000x2200x2500mm(Subject to the actual machine) |
12000x2400x2500mm(Subject to the actual machine) |
13000x2550x2500mm(Subject to the actual machine) |
|||
|
Total weight of the machine 机器总重 |
about 5t (Subject to the actual machine) |
about 5.5t (Subject to the actual machine) |
about 6t (Subject to the actual machine) |
|||
The 3layer, 5 layer,7layer and multi-function corrugated cardboard production line mainly consist of the following equipment:
mill roll stand, pre-conditioner, pre-heater, auto-splicer, single facer, conveying span bridge, multi-ply pre-heater, glue application machine, double facer, slitter scorer, cutoff, conveyer and stacker, glue making system and electric control system etc.
|
5-layers corrugated cardboard production line) |
|
|
Max. machine speed |
150m/min. |
|
Max. production speed |
180m/min. |
|
Paperboard width |
1800mm |
|
Type of corrugating roll |
A, C, B, E, F as per customer’s option |
|
Height of flute |
provided by the buyer and to be proved by the seller. |
|
Pressure of steam |
8~10Bar (actual input steam pressure) |
