Heavy-Duty Aluminum Track for 13.6m Curtainsider Trailers

The Aluminum Track for 13.6m Curtainsiders is a premium, high-capacity structural extrusion specifically engineered for standard international long-haul transport vehicles. A 13.6-meter tautliner semi-trailer demands exceptional rigidity along its upper roof frame to span the expansive cargo bay without bowing or sagging under the massive lateral load of the side curtains. This precision-engineered aluminum rail provides the ultimate dual-function solution: acting as a core structural load-bearing beam while offering an ultra-smooth tracking channel for high-frequency curtain roller operation.

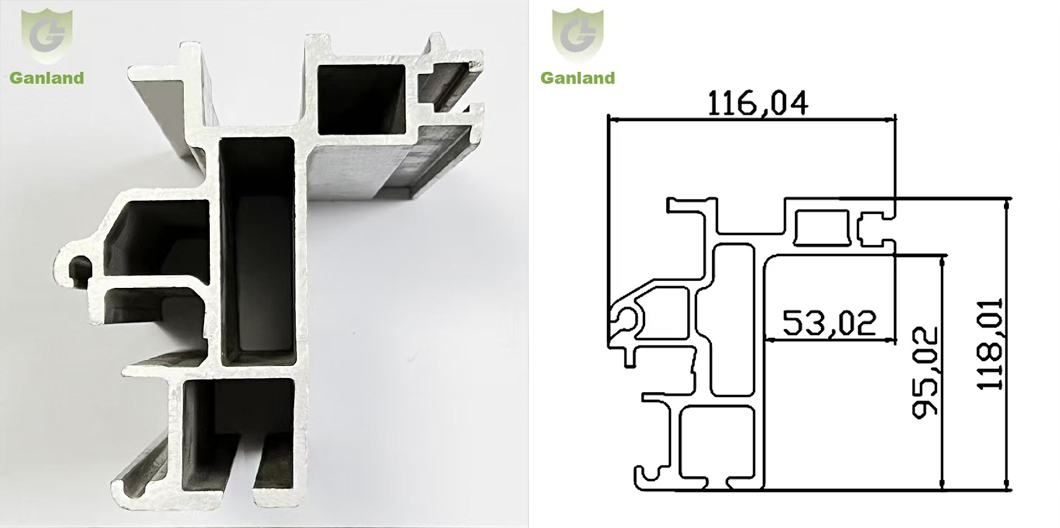

Advanced Geometrical Architecture & Profile Design

Meticulously extruded to meet the high structural tolerances required by commercial trailer body builders, this universal classic profile incorporates several distinct engineering features:

• Reinforced Multi-Chamber Core: The internal structure features an advanced network of multi-hollow vertical and horizontal load-bearing webs. This multi-chambered layout provides maximum torsional rigidity, preventing twisting or warping over a full 13.6-meter stretch when driving across uneven terrain or facing high wind loads.

• Integrated Lower Roller Channels: The bottom flange features a dual, smooth-radius tracking track optimized for heavy-duty quad-wheel or tandem curtain side rollers. The precision-milled tracking ensures minimal friction, fluid sliding mechanics, and complete binding prevention.

• Integrated C-Channel Hinge Rim: The left exterior vertical wall features an integrated, curved C-slot designed to securely hold a rubber weather stripping seal or a flexible upper pelmet. This keeps moisture and road grime out of the cargo hold.

• Architectural Structural Aluminum: Processed from high-tensile 6000-series (typically T5 or T6 tempered) aluminum alloy, the profile yields an incredible strength-to-weight ratio, ensuring long-term structural survivability without adding unnecessary dead weight to the vehicle.

Technical Specifications

Key Operational and Fleet Advantages

Upgrading or manufacturing with this specialized 13.6m Curtainsider Aluminum Track yields crucial operational benefits for long-haul transport operators:

• No Mid-Span Sagging: Engineered specifically to accommodate the expansive span of 13.6m trailer configurations, the reinforced internal webs eliminate center deflection, ensuring the track remains perfectly level for smooth curtain travel.

• Corrosion Resistance in Harsh Environments: Unlike heavy steel tracks, the premium aluminum construction is inherently immune to rust. It maintains its clean rolling surfaces even when exposed to heavy rain, snow, road salt, and harsh fleet chemical washes.

• Increased Payload & Fuel Savings: The lightweight properties of structural aluminum minimize the upper tare weight of the commercial box body. This lowers the vehicle's center of gravity for safer handling while maximizing weight capacity for larger freight payloads.

• Reduced Workplace Strain: The low-friction inner tracking channels allow fleet drivers or logistics workers to easily slide back massive 13.6m curtains with minimal physical effort, accelerating loading dock turnaround times and improving workplace safety.

GL-15935 Aluminum Track is especially for 13.6m Curtainsiders,  Ganland has developed over hundreds curtain side roller, please check our catalog. Ganland provide Truck Door Locks, Toolbox Serie, Truck Door Hinges, Fastener Serie, Cargo Control, Curtainsider Truck Parts, Wing Opening Van Parts, Rubber Bumpers & Buffers, Trailer Mudguard, Truck Door Seal and Other Hardware And Accessories for your choosing, stable quality with competitive price, which is the home to all your truck trailer and car part needs, welcome inquiry~
