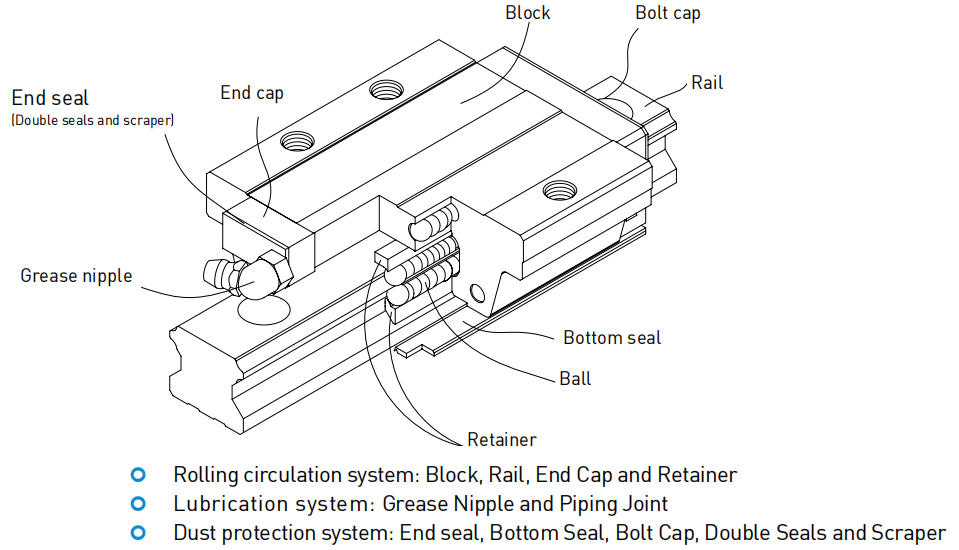

The HG series linear guideways feature a 4-row, arc-contact design with 45° contact angles, providing consistent radial, reverse radial, and lateral load capacities. The front combination of arc grooves offers automatic self-aligning capabilities, compensating for installation errors while maintaining smooth, stable, and high-precision linear motion. Under strict manufacturing precision control, the dimensions remain within stable tolerances, allowing interchangeable linear guides to be assembled with any slider of the same model while preserving consistent smoothness, preload, and accuracy. This makes assembly and maintenance more straightforward.

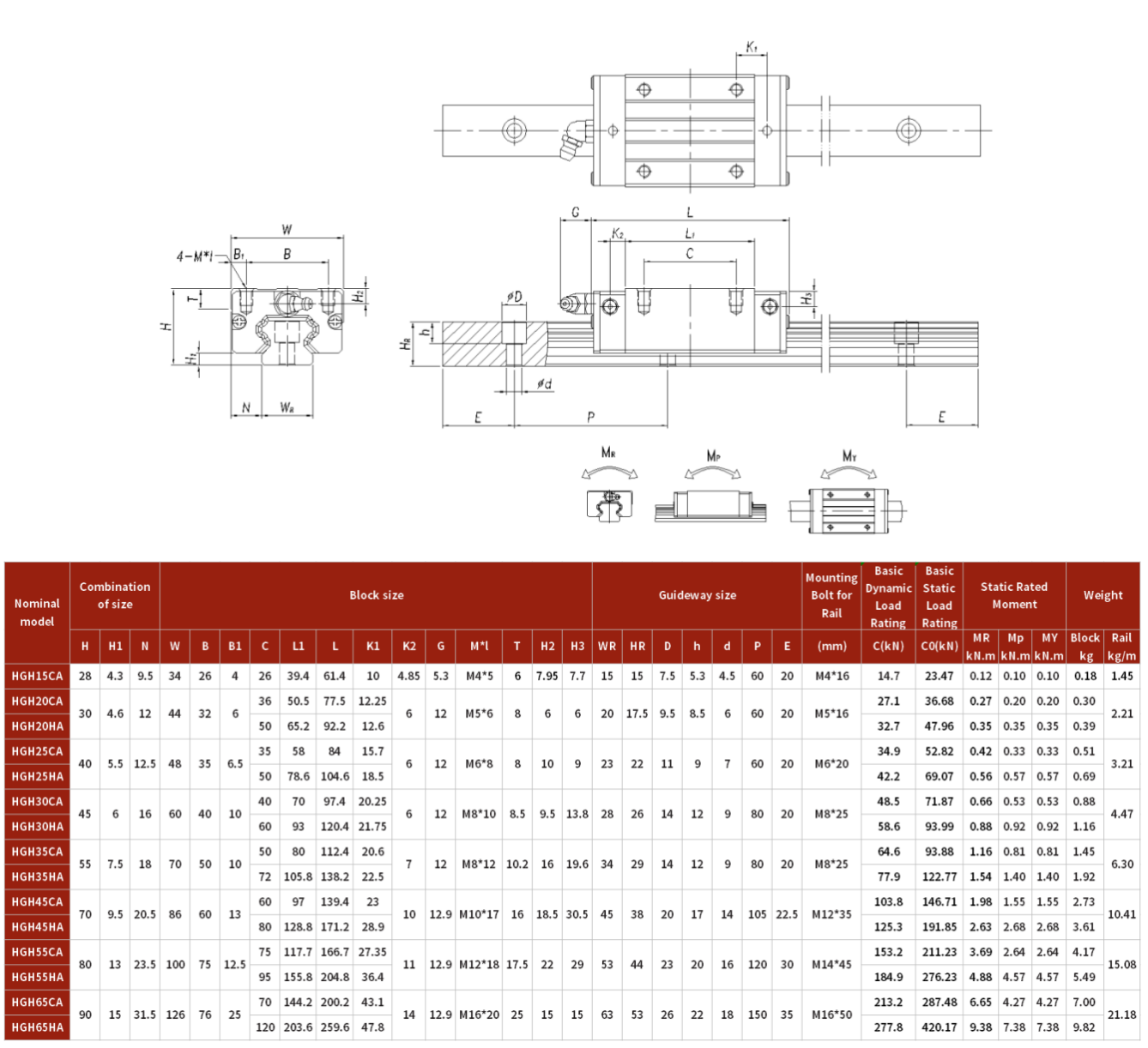

HGH35CA--Hojama HG series linear guideways

Key advantages of the linear guide:

1. High Precision:

HOJAMA linear guideway provides exceptional accuracy and repeatability, ensuring precise linear motion and minimizing deviations.

2. Low Noise:

The precision sliding guides operate with minimal noise, enhancing the working environment and reducing disturbances.

3. Corrosion Resistance:

Designed to withstand harsh environments, the linear rail and block systems are resistant to corrosion, extending their service life.

4. Rust Resistance:

They are often treated or coated to resist rust, ensuring long-term durability and reliability.

5. Fast Speed:

Linear guideways support high-speed movement while maintaining stability and precision, enhancing overall system performance.

Details of linear guide lubrication and maintenance:

1. Carefully wipe off the oil stains on the surface of the linear guide, especially those in the grooves; attention should be paid to the grease in the mounting holes of the linear guide.

2. Remove excess grease and heat the machine.

3. Use a grease nozzle to fill the transmission cavity until the internal dirty oil is completely squeezed out. Clean up the squeezed oil stains.

4. Push the slider back and forth several times to ensure the oil film is even.

5. Apply a small amount of grease on the surface of the linear guide with your fingers, making sure that the grooves are prioritized.

Note:

1. Product prices vary based on parameters and quantities. For detailed pricing information, please contact HOJAMA.

2. HOJAMA is willing to provide samples, with a delivery time of 5 to 7 days.
