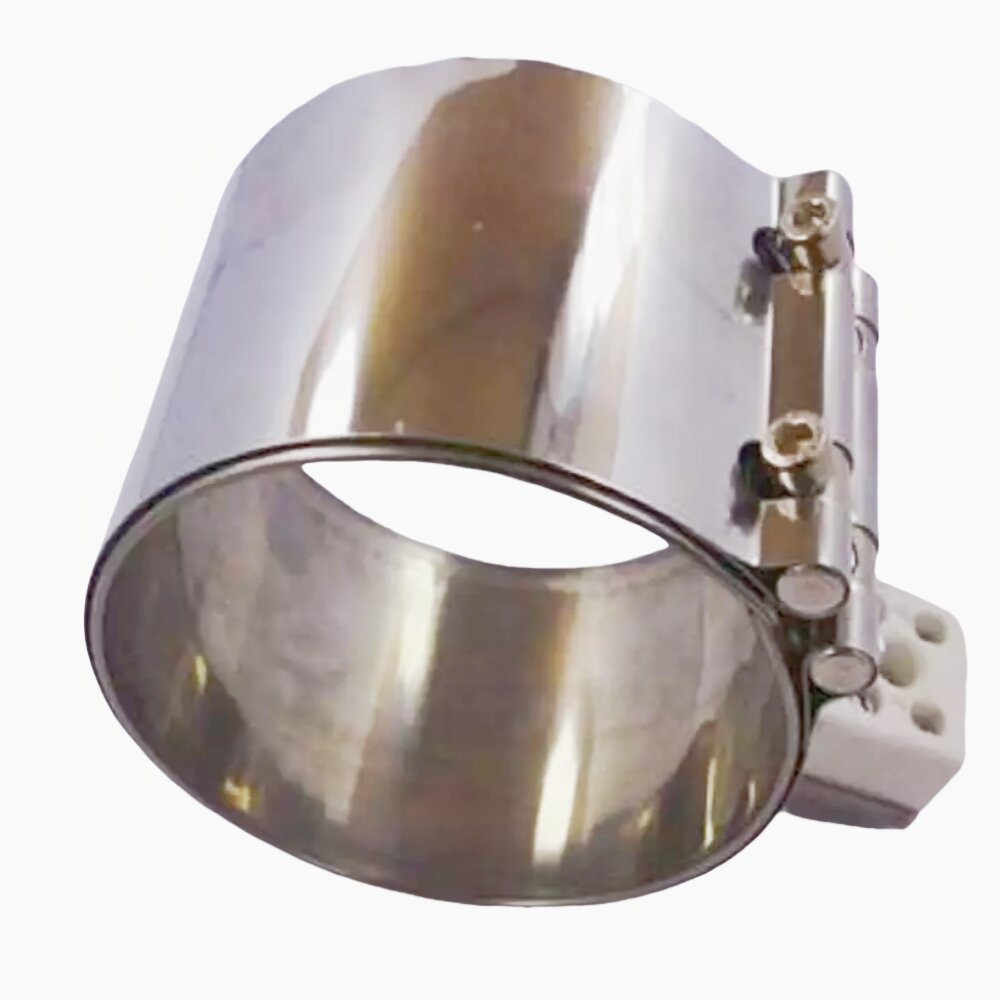

Mica Electric Heater
7 month ago
Brief introduction
Stainless steel electric mica heater with 0.3~0.5mm stainless steel plate as the shell, the middle with high insulation high temperature resistance mica plate as the core, evenly around a variety of standard specifications of nickel chromium alloy resistance wire as the heating body, through the molding machine processing into all kinds of required shapes.
According to the wiring mode of user requirements, the voltage can be from 110V, 180V, 220V, 380V, and the power load is 3.5W per square.
Add the external heat dissipation surface heat preservation device, the internal heat dissipation surface sintering infrared, so as to save 35% electricity. Stainless steel mica heater has ring type and plate shape specifications.
Stainless steel mica heater has ring type and plate shape specifications.
Application:
It is applied to heating injection molding machine tube and extruding machine mold.
Structure:
It adopts Ni80Cr20 resistance wire to twine around mica insulation sheet,making the heating body light and small.Metal shell is made of stainless steel plate or galvanized plate.
Technical parameter:
The average working temperature can reach 350℃;
The power density :＜4W/c㎡.
Power connection mode:
1,Plug type wiring:maximun20A;
2,Junction box type wiring: multiphase fixed connection for option;
3,High temperature line lead-out type wiring: shielding heat-resistant pure nickel wire.
①simple processing,
②reliable work,
③easy to use,
④rapid heating,
⑤small power consumption,
⑥long service life,
⑦production is not limited by model and size .
