Model EYH PlanarMotion Mixer (13)

Food Additive Blender Machinery

Product Principle

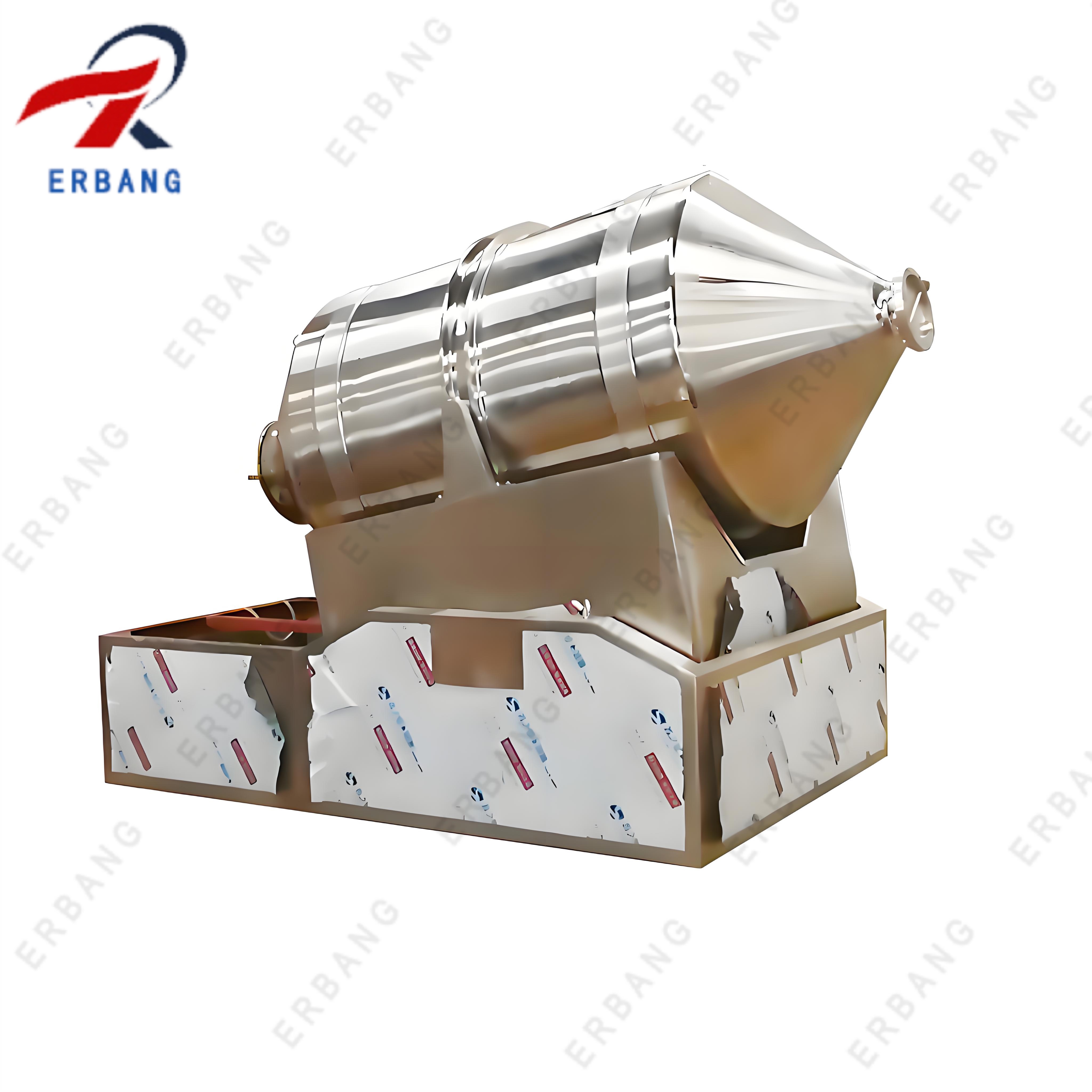

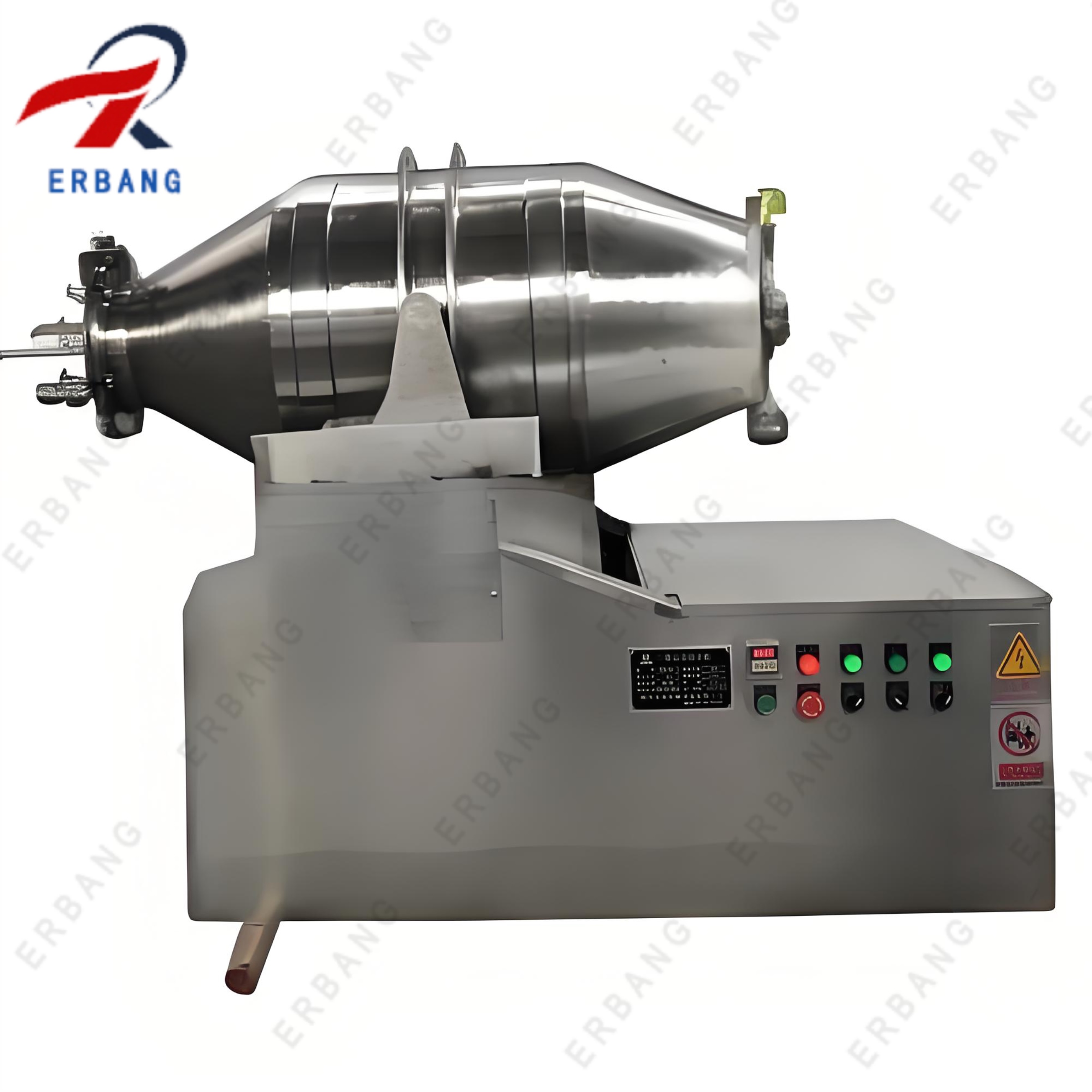

Two Dimensions Mixer (Two Dimension Mixing Machine) mainly consists of three big parts. rotating cylinder,swinging rack and frame. The rotating cylinder lies on the swinging rack,supported by four wheels and its axial fixation is done by two stop wheels Two of four wheels are driven by rotating system to make the cylinder rotate. The swinging rack is driven by a set of crandshaft swinging bar which is mounted on the frame and the swinging rack is supported on the frame. Food Additive Blender Machinery also name as Food Additive Blender and Food Additive Blending Machine

 Features:
1.The rotating cylinder of Two Dimensions Mixer (Two Dimension Mixing Machine) can make two motions at the same time.One is the rotation of the cylinder and the other is swinging of the cylinder along the swinging rack.Materials to be mixed will be rotated when the cylinder is rotating,and will be mixed from left to right and vice versa when the cylinder is swinging.As the result of these two motions,materials can be mixed fully in a short time. EYH Two Dimensions Mixer is suitable for mixing of all powder and granule materials.
2. Control system has more choices, such as push button, HMI+PLC and so on
3．The feeding system for this mixer can be by manual or pneumatic conveyor or vacuum feeder or screw feeder and so on.
4. for the electrical components , we mainly use international brand such as ABB ,Siemens or Schneider.
Remarks: If customer has any special requirements, please special order.

Rocking blenders construction material

Erbang are able to offer our EYH Series 2D blender with contact part to be built in SS304, SS316L, Titanium, Duplex stainless steel, etc. Electrical parts of control system of the Powder mixing machine can be adapted to the customer’s needs.

2D Mixing Machine Advantages

Erbang Drying EYH series 2D Mixing Machine had the following advantages over conventional solutions.

1. Excellent homogeneity of mixing with no dead points

2. Complete discharge and easy cleaning

3. Easy loading of materials into the shells.

4. The whole machine novel design, compact structure, and good appearance, the evenness of mixing reaches 99%.

5. Highly polished inner and outer surfaces of the barrel, no dead comer, easy to discharge materials, easy to clear, no cross contamination. Confining to the requirement of GMP.

6. Low-cost and highly-efficient way of mixing powdered and granular materials

7. Mirror-polished surface made with durable and high-quality stainless steel

8. Easy to operate and effortless to clean

9. Low maintenance costs

10. CE marking and GMP (Good Manufacturing Practice)

Rock Blenders Options

1.     Total volume

 Total volume sizes from 600 to 20000 lit.

2.     materials material

Drums can be built in SUS304,SUS316L ,Titanium, Duplex stainless steel.

3.     Control system of mixer machine

The EYH powder mixing machine has more choices, such as push button or HMI+PLC.

4.     Feeding system

The feeding system for the powder blending machine can be by manual or pneumatic conveyor or vacuum feeder.

5.     Optional variable speed shell

How Does a EYH Series Two Dimensional Mixer Work?

The rotating barrel of EYH Series Two Dimensional Mixing Machine can make two motions at the same time. One is the rotation of the barrel and the other is swinging of the barrel along the swinging rack. Materials to be mixed will be rotated when the barrel is rotating, and will be mixed from left to right and vice versa when the cylinder is swinging. As the result of these two motions, materials can be mixed fully in a short time.

Application and Characteristics

1. The mixing barrel swings while rotates so that the materials in the barrel can be fully mixed.

2. The high efficiency Food Additive Blender is widely used in pharmaceutical, food, dye, fodder, chemical fertilizer and pesticide and is especially suitable for mixing various solid materials with large volume (100 to 20000 liters)

The Main technical datum of Additive Mixing Equipment is for reference. We also produce and design product according to customers' requirements.
