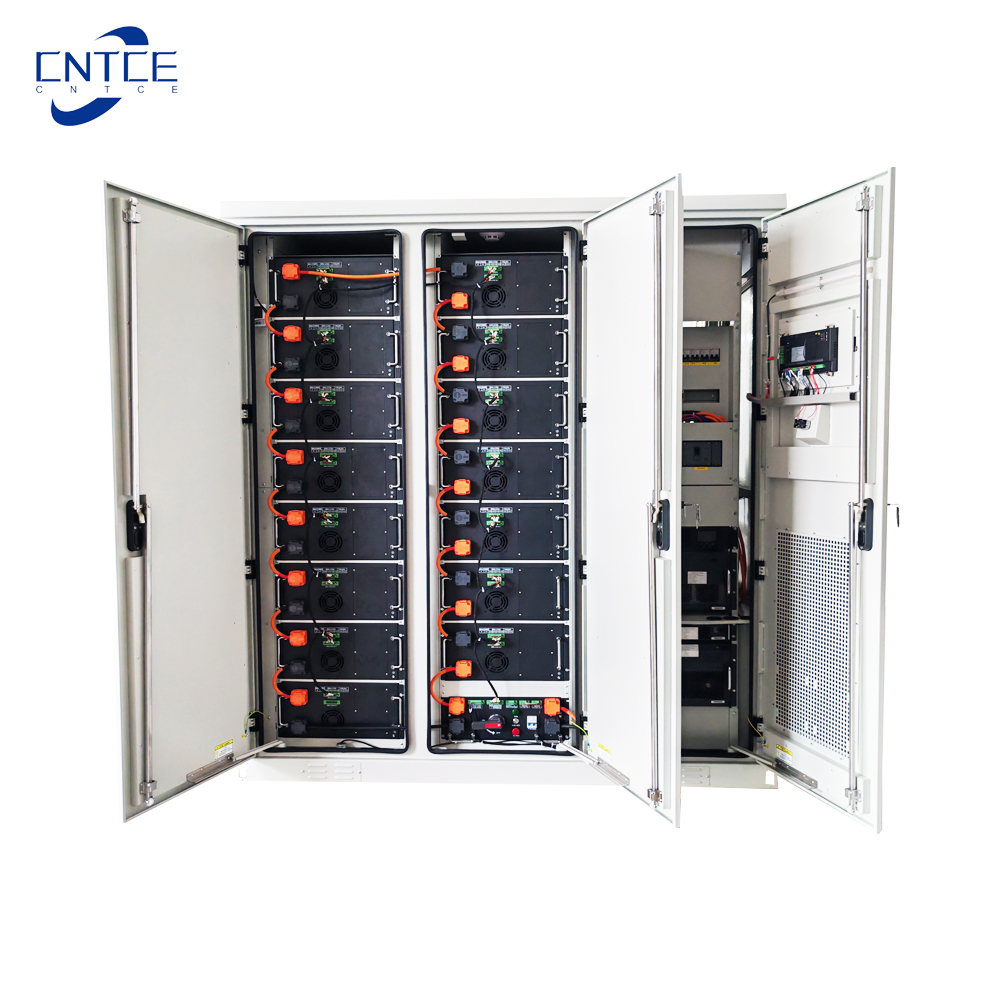

Battery Energy Storage System

11 month ago

17 0 

Guangdong Yuqiu Intelligent Technology Co.,Ltd

12 month

Product details

Product Details

Regular Items
Model	RATE CAPACITY (KWh)	RATE POWER (KW)	OUTPUT VOLTAGE (V)	Option Equipment
YQ-F105	10KWh	5KW	220VAC	A. Battery type: lithium iron phosphate (LFP) B. Grid mode: off-grid/grid C. STS Switch 200KW D. Photovoltaic input(solar) E. EMS parameters User interface: LCD Communication interface: 2-way Ethernet, ModbusTCP RF antenna: wireless antenna interface F. System life: 6000 times@25℃, 0.5CP, 95%DOD, remaining SOC≥70% G. Altitude: 2000 meters H. Storage temperature: -40°C - 70°C I. Working temperature: -20°C - 55°C J. Ambient humidity: 5% - 95%RH, non-condensing K. Fire fighting system: hot melt adhesive L. Cooling method: Air cooling or Liquid cooling M. Cooling capacity of air conditioner: AC4000W N. Protection class: IP55
YQ-F115	15KWh	5KW	220VAC
YQ-F3010	30KWh	10KW	220VAC
YQ-F6020	60KWh	20KW	220VAC
YQ-F10050	100KWh	50KW	220VAC
YQ-F215100	215KWh	100KW	380VAC
YQ-F233100	233KWh	100KW	380VAC
YQ-F300150	300KWh	150KW	380VAC
YQ-F500250	500KWh	250KW	380VAC
YQ-F1000500	1000KWh	500KW	380VAC

1. Solar Power for Homes Battery energy storage systems are rechargeable battery systems that store energy from solar arrays or the electric grid and provide that energy to a home or business.

2. Solar battery energy storage system paired with a solar photovoltaic system.

3. Battery energy storage systems work by converting the DC energy being produced by your solar panels and storing it as AC power for later use.

4. The main advantage of installing a solar-plus-storage energy system is that it gives you the ability to use your solar electricity even when the sun isn't

5. Solar Energy Lithium Batteries High energy density, Long shelf life. 20-year-OEM-manufacturer

6. Lithium solar batteries are a rechargeable energy storage solution that can be paired with a solar energy system to store excess solar power ...

Specifications

System parameters

A. System capacity: 215kWh

B. Maximum power: 110kW

C. Rated power: 100KW

D. Rated voltage: 400V (320-460V)

E. Rated current: 144A

F. Battery type: lithium iron phosphate (LFP)

G. Grid mode: grid-connected

Photovoltaic parameters

A. Maximum photovoltaic input voltage: 1000Vdc

B. Maximum photovoltaic input power: 100kW

C. MPPT operating voltage range: 250 - 850Vdc

D. MPPT full load voltage range: 300 - 850Vdc

Battery parameters

A. Cell type: LFP3.2V/280Ah

B. Battery PACK configuration: 1P16S/14.336kWh

C. Battery system configuration: 1P240S

D. Battery rated capacity: 215kWh

E. Battery rated voltage: 768V

F. Battery operating voltage: 648 - 864Vdc

G. Rated charge and discharge rate: 0.5C

EMS parameters

A. User interface: 11.6-inch display interface

B. Communication interface: 2-way Ethernet, ModbusTCP, CAN, RS485

C: Communication protocol: MODBUS 4G

D.4G interface: 4G antenna

E.Internet access: 4G, Ethernet

Auxiliary parameters

A.Product size (H*W*D) mm: 2360*1755*1000

B.Product weight: 2500kg

C.System life: 8000 times @25℃, 0.5CP, 95%DOD, remaining SOC≥70%

D.Altitude: 2000 meters

E.Storage temperature: -40℃ - 70℃

F.Working temperature: -20℃ - 55℃

G.Ambient humidity: 5% - 95%RH, no condensation

H.Fire protection system: hot air melt glue (double protection in pack and cabinet)

I.Cooling method: industrial air conditioning, intelligent air cooling

J.Air conditioning cooling capacity: AC2000W*2

K.Protection level: battery compartment IP55, PCS compartment IP44

L.Packing: domestic ordinary wooden pallet + carton
