Product details

UL 1332 standard fluoroplastic wire generally refers to wires that use fluoropolymers (such as PTFE, FEP, PFA, etc.) as insulation materials. These materials are widely used in electrical connections in various harsh environments due to their excellent chemical resistance, heat resistance and dielectric properties. They have low smoke, non-toxic, self-extinguishing properties, so they are very popular in applications that require high safety standards.

The specific characteristics of "red fluoroplastic wire" can be summarized as follows:

1. Color: red, this color may be chosen for identification purposes, or because in some applications, red is often used to indicate positive poles or as a warning color.

2. Insulation material: made of fluoropolymers, with excellent temperature resistance, corrosion resistance and aging resistance.

3. Electrical properties: good dielectric strength, can maintain stable electrical properties over a wide temperature range.

4. Mechanical properties: high tensile strength and wear resistance, suitable for use in more demanding environments.

5. Chemical stability: good resistance to most chemicals.

6. Flame retardancy: This type of material generally has good flame retardancy and meets safety standards.

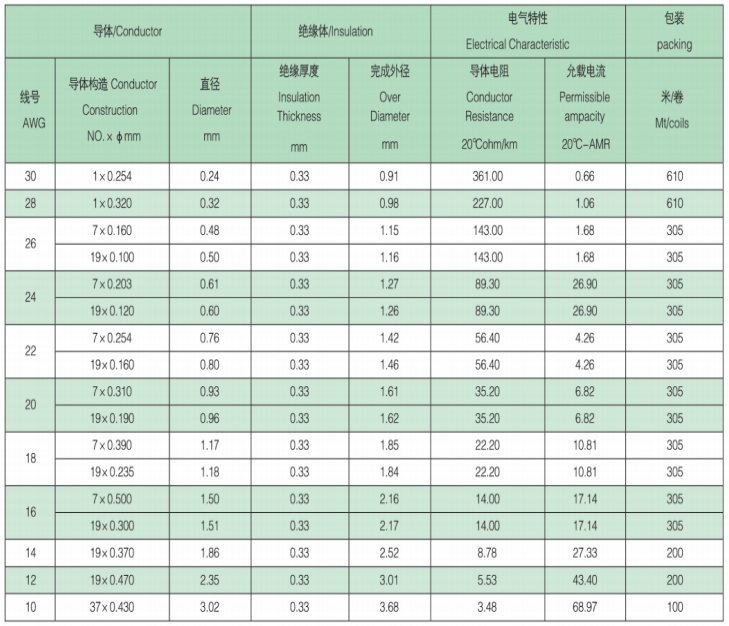

PRODUCT DESCRIPTION

◆Nominal Voltage:300V
◆Temperature Range:-65℃ to +200℃/150℃

◆Conductor:30 to10AG Tinned Copper
◆Insulation :FEP
◆O.D.Allowance: +0.10mm
◆Aviable:Black-Brown-Red-Orange-Yelllow-Green-Blue-Purple-Gray-White-Transparent-Yellow/green,etc

CHARACTERISTIC
High temperature resistance、lowtemperatureresistance、anti-acid、anti-oil、antisepsis and moisture、UL758&UL1581/2556、RoHS compliance、passed VW-1

APPLICATION

Apply to household appliance、illumination &lighting & headlamp.electric machines temperature sensor Military Series 、MetallurgyChemical series 、Motor cars & Ships、Electrical Installation.

Our company mainly includes Mica Wire Series, UL Wire Series, Silicone Wire Series and Electric Heaters Series, Electric Tracing Tape Series, etc. If you need more detailed information, welcome to contact us.
