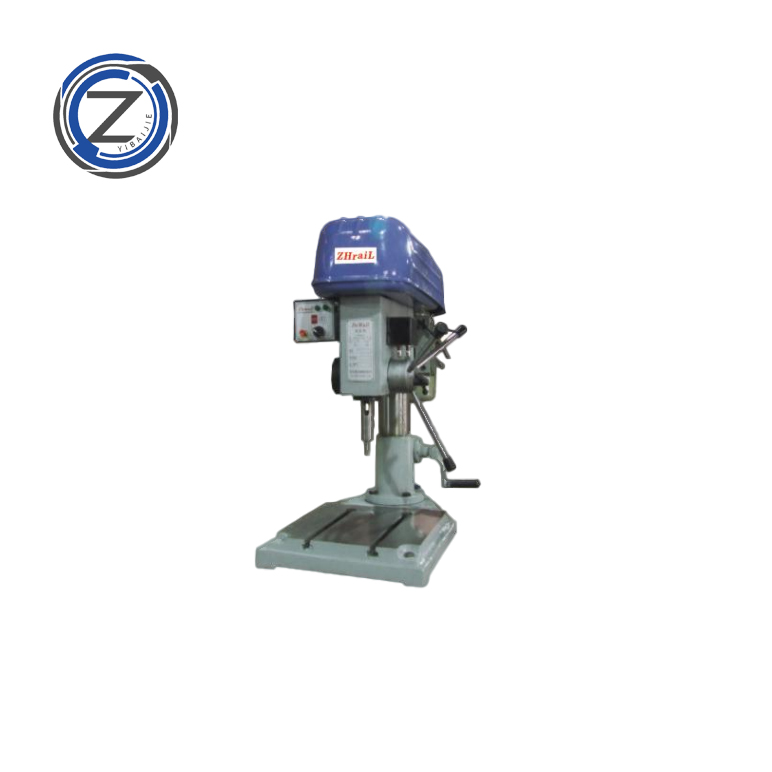

Our Industrial High - Efficiency Manual Feed Tapping Machine, a representative of Manual Drilling Machine, Industrial Drilling Machine, and Heavy Drilling Machine series, is designed for precision tapping operations in industrial settings. The model we focus on here has outstanding performance parameters. With a maximum tapping diameter of 16mm, it can handle a variety of tapping tasks. The spindle stroke reaches 125mm, and the span distance is 240mm, ensuring flexibility in operation. The spindle taper is MT2, matching well with standard tooling. It is equipped with a 1.1Kw motor, providing sufficient power. The maximum distance from the spindle end to the worktable surface is 400mm, suitable for different workpiece heights. The spindle speed range of 220 - 2050R.P.M allows for adaptation to various materials and tapping requirements. The overall dimensions of the machine tool are 7604001000mm, and the net weight is 146Kg, ensuring stability during operation while being relatively easy to place in the workshop.



• High Efficiency: The well - designed spindle speed range (220 - 2050R.P.M) and 1.1Kw motor power enable rapid and precise tapping, significantly reducing processing time compared to traditional manual tapping methods.



• Precision: With accurate spindle stroke (125mm) and spindle taper (MT2), it guarantees high - precision tapping, ensuring the consistency of thread quality.



• Versatility: The maximum tapping diameter of 16mm and a maximum distance from the spindle end to the worktable surface of 400mm make it suitable for a wide range of workpieces, from small - sized parts to relatively larger components.



• Stability: The net weight of 146Kg and overall dimensions (7604001000mm) provide a stable working platform, minimizing vibration during tapping and improving the quality of work.





The main body of the machine is constructed from high - quality cast iron. Cast iron has excellent damping properties, which is crucial for reducing vibration during the tapping process, thus ensuring the accuracy of tapping. The spindle and other key components are made of high - strength alloy steel,经过precision processing. This material choice ensures the wear resistance and durability of the components, prolonging the service life of the machine even under long - term industrial use.





• Machinery Manufacturing: Ideal for tapping operations in the production of various mechanical parts, such as gears, shafts, and connectors.



• Automotive Industry: Used for processing threads on auto parts, including engine components, chassis parts, etc.



• Hardware Processing: Suitable for tapping in the production of hardware products like nuts, bolts, and brackets.



• Aerospace Component Processing: Can be applied in the precision tapping of some small - sized aerospace components, ensuring the high precision required in this field.





• Tapping Capacity: We can customize the maximum tapping diameter within a certain range according to customer needs, to adapt to special - sized thread processing.



• Spindle Speed Adjustment: For customers with specific speed requirements for different materials, we can adjust the spindle speed range to optimize the tapping process.



• Worktable Customization: The worktable size and structure can be customized to fit special workpiece clamping and processing needs.





• Cost - effectiveness: High efficiency reduces labor time and production costs. The durability of materials and components lowers maintenance and replacement costs, ensuring long - term stable production.



• Quality Improvement: Precision tapping guarantees the quality of threaded connections, reducing the risk of product failure due to thread problems, and enhancing the overall quality of customer products.



• Production Flexibility: Versatility and customizable features enable customers to handle a wider range of products, improving production flexibility and market adaptability.





Q1: What is the maximum workpiece size that this machine can handle?

A1: Considering the span distance of 240mm and the maximum distance from the spindle end to the worktable surface of 400mm, it can handle workpieces of certain sizes. But for specific large - sized workpieces, it is recommended to check the compatibility or consider customized worktable solutions.



Q2: How to maintain the spindle for long - term precision?

A2: Regularly lubricate the spindle according to the operation manual, avoid overloading the spindle during operation, and conduct periodic precision inspections and calibrations.



Q3: Can this machine be used for tapping non - ferrous metals?

A3: Yes, by adjusting the appropriate spindle speed and using suitable taps, it can be used for tapping non - ferrous metals such as aluminum and copper.
