Rectifier Diode Modules

YZPST-MD3-470-4400V

Hard Soldered Joints For High Reliability Rectifier Diode Modules

Features

·Heat Transfer Through Aluminium Oxide Ceramic Isolated Metal Baseplate

·Hard Soldered Joints For High Reliability

·VINS>6000VAC

Typical Applications

·Rectifier for drives applications

·Rectifiers for UBS

·Battery chargers

BLOCKING

Symbol	Condition	Ratings	Unit
V_RRM V_RSM	T_j= T_j Max.	4400 4500	V
I_RRM	AtV_RRM，Single phase，half wave，T_j= T_j Max.	50	mA
V_INS	50Hz, circuit to base, all terminal shorted	6000	V

CONDUCTING

Symbol	Condition	Ratings	Unit
I_F(AV)	T_C=100°C; 180° sine	510	A
I_F(_RMS₎	T_C=95°C; 180° sine	790	A
I_FSM	T_j= T_j Max.; t = 10 ms (50 Hz); sine	12.5	KA
I²t	T_j= T_j Max.; t = 10 ms (50 Hz); sine	780	kA²S
V_F(TO)	(I > π x I_F(AV)),Tj= Tj Max.	0.82	V
r_F	(I > π x I_F(AV)),Tj= Tj Max.	0.56	mΩ
V_FM	On-State Current1256A，T_j=25°C	1.60	V

Electrical Characteristics

Symbol	Condition	Ratings	Unit
R_th(j-c)	Per Module	0.032	K/W
R_th(c-h)	Per Module	0.0305	K/W
T_j		-40 ~ + 150	°C
T_stg		-40 ~ + 125	°C
M	mounting torque(M6)	6	Nm
M	terminal torque(M10)	12	Nm
W		1500-	g

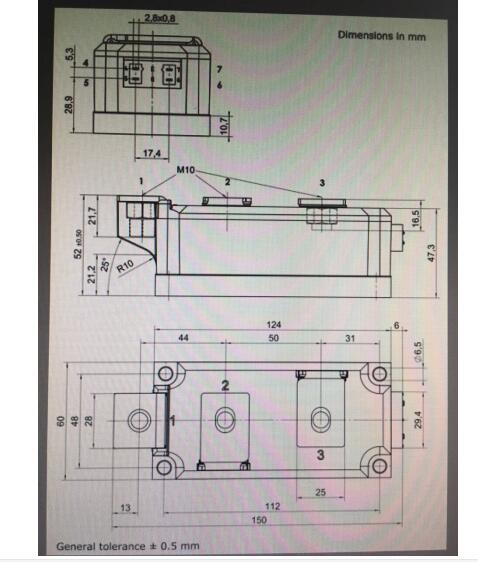

Outline Drawing

Hard Soldered Joints High Reliability Diode Modules
