Battery energy storage system

100kw Hybrid Solar Battery Energy Storage System with multiple stacked services

Our BESS adopts Lithium Iron Phosphate chemistry. The lithium ion batteries used for our BESS is the energy storage lithium battery. Well, would you like to know more about the difference between power lithium battery and energy storage battery? Power lithium battery is mainly used for electric vehicles, electric bicycles, electric motorcycles, electric equipment and so on.  It can also be used in power transmission and transformation stations to provide switching current for power units. While the energy storage lithium battery pack is mainly used in energy storage power stations such as hydraulic, thermal, wind and solar power stations, peak and frequency modulation power auxiliary services, digital products, power products, medical and security, UPS power supply.,etc.

Our BESS has these features:

1.Superior uniformity and EV grade safety lithium battery cells;

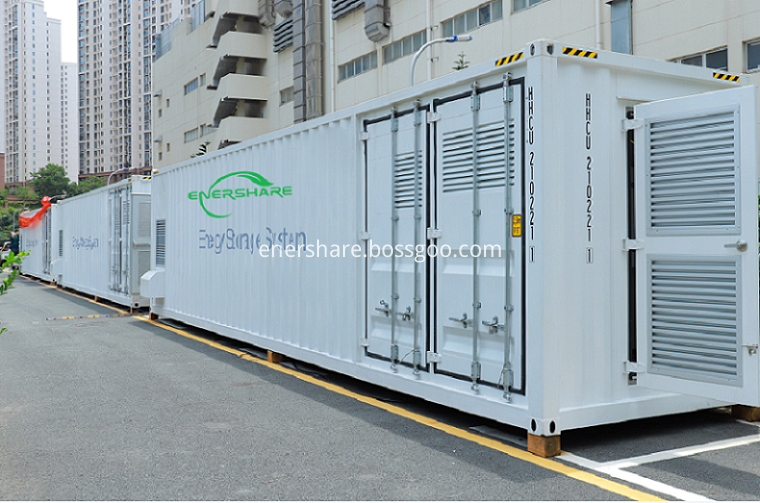

2.System capacity can be formed from 500KWh to Max.4MWh
in one container,multiple containers can be combined into large-scaled BESS.
3.Advanced energy management technology,easy installation ,high round-trip efficiency,customized modular .
4.Reliable system safety design and remote real-time monitoring.
5.Fastest delivery time 6-8weeks.

As a Lithium battery storage power station, it applies to below scenarios:
Commercial,residential or industrial energy backup.

Integrated all-in-one energy storage solutions for Grid Stabilization.

Island or electricity shortage area.
Power and Grid System Load Leveling.
Renewable energy (Solar and Wind) firming.
Remote Off-Grid Power Generation.

Technical solutions:

1. Item	0.3MVA-3MWh
   Battery model	E6Y-210Ah
   Cooling method	force air
   Battery module type	1P10S
   Battery capacity(Ah)	210
   Single battery rated Volt.(V)	3.2
   Single battery energy output (WH)	672
   Number of battery cells per cluster	210
   Number of battery module strings per cluster	21
   Number of battery clusters per container	8
   Nameplate energy capacity of each container	1.128
   DOD	0.9
   Inverter efficiency	0.96
   AC 400V usable energy (MWH)	0.974
   Number of containers	3
   Total energy capacity (MWh)	3.386
   AC 400V usable total energy (MWH)	2.293




   Item	Capacity specifications	wire type
   grid	250KVA	three-phase four-wire
   load	200KVA	three-phase four-wire
   generator	250KVA	three-phase four-wire
