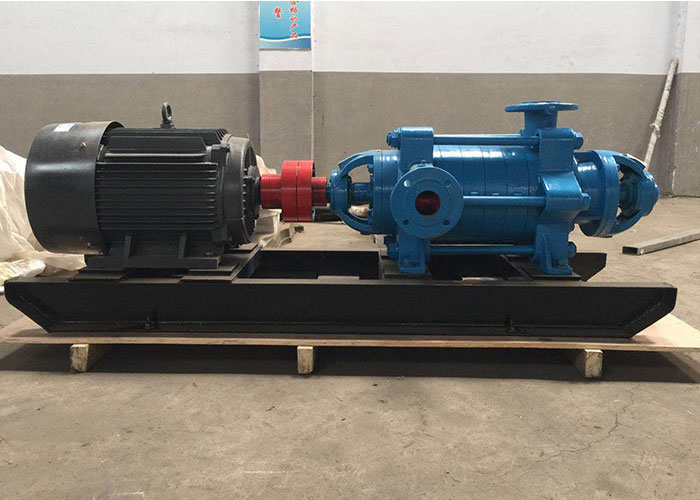

horizontal multistage centrifugal water pump
4 year agoHorizontal multistage centrifugal water pump is widely applied to supply water of low or high pressure boiler. Horizontal multistage centrifugal water pump is also used for high pressure water supply and drainage of industrial and urban.
Horizontal multistage centrifugal water pump, all the impellers are stacked in single direction on the same pump shaft. The rotors are perfectly dynamically balanced and the maximum stages can be up to 12 stages. Horizontal multistage centrifugal water pump has advantage of stable performance and superior in quality.
Horizontal Multistage Centrifugal Pump Specifications:
Working Principle |
Centrifugal, Multi-stage |
Main Applications |
Boiler water feed pump, hot water |
Driver |
Electric motor; diesel engine |
Temperature |
Up to 120℃ |
Installation |
Horizontal |
Shaft seal type |
Mechanical seal; packing seal |
Horizontal Multistage Centrifugal Water Pump Models:
Model | Flow | Lift | Power |
D type | (m3/h) | (m) | (kw) |
D6-25*3 | 3.7 | 76 | 4 |
D6-25*4 | 3.7 | 102 | 5.5 |
D6-25*5 | 7.5 | 122 | 5.5 |
D6-25*7 | 3.7 | 178 | 7.5 |
D6-25*8 | 3.7 | 204 | 11 |
D6-25*9 | 6.3 | 225 | 11 |
D6-25*11 | 3.7 | 280 | 15 |
D12-25*3 | 7.5 | 84 | 5.5 |
D12-25*4 | 7.5 | 113 | 7.5 |
D12-25*6 | 7.5 | 169 | 11 |
D12-25*7 | 7.5 | 197 | 15 |
D12-25*8 | 15 | 184 | 15 |
D12-25*9 | 12.5 | 225 | 18.5 |
D12-25*10 | 15 | 230 | 18.5 |
D12-25*11 | 12.5 | 275 | 22 |
D25-30*3 | 25 | 90 | 15 |
D25-30*4 | 15 | 136 | 18.5 |
D25-30*6 | 25 | 180 | 30 |
D25-30*7 | 30 | 193 | 30 |
D25-30*8 | 15 | 272 | 37 |
D25-30*9 | 25 | 270 | 37 |
D25-30*10 | 25 | 300 | 45 |
D25-50*3 | 28 | 138 | 22 |
D25-50*5 | 15 | 257.5 | 37 |
D25-50*6 | 15 | 309 | 45 |
D25-50*9 | 25 | 450 | 75 |
D25-50*12 | 15 | 618 | 90 |
D46-30*7 | 30 | 238 | 45 |
D46-50*12 | 30 | 666 | 132 |

Horizontal multistage centrifugal water pump powered by diesel engine.
Boiler feed water pump with high temperature, top suction and top discharge.
Horizontal Multistage Centrifugal Water Pump Features
1. Rotor: It is consist of shaft, impellers, balance disc and shaft sleeve. Shaft supplied power to impeller; The axial force is balanced by balance disc; the sleeve mounted on shaft to protect shaft.
2. Bearing seals: The bearing of type pump is sliding bearings, lubricated by diluted oil, the other pump bearing is rolling bearing, lubricated by grease.
3. Shaft seal: It is usually adopted soft packing seal, consist of sealing house on suction casing, packing, blocking water ring, the sealing house have some pressure water come from pump itself.
Horizontal Multistage Centrifugal Water Pump Installed Case
