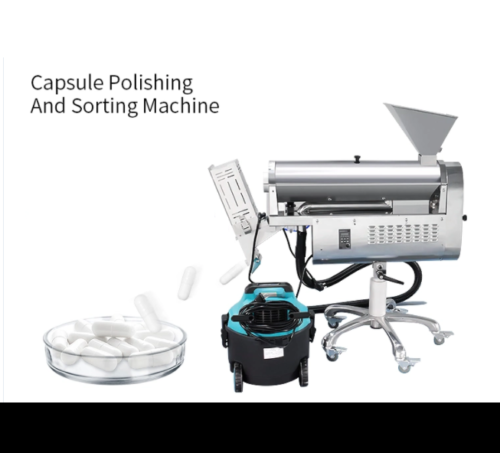

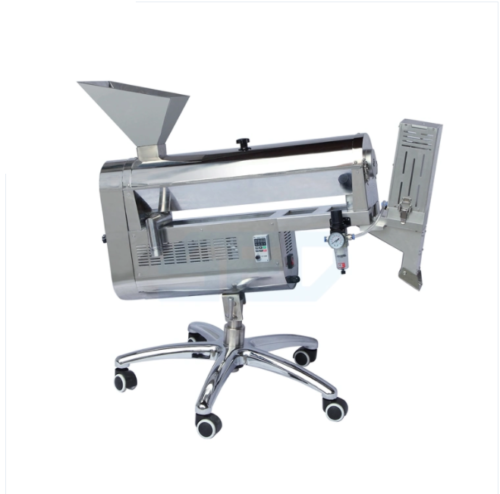

capsule polishing machine

Working principle:

Through the rotating motion of the brush, the capsule is driven to make a circular spiral movement along the wall of the polishing bobbin, so that the capsule advances along the spiral spring, and the surface of the capsule shell is polished under the constant friction with the brush and the wall of the polishing bobbin, and the polished capsule enters the waste bucket from the discharge port. In the waste remover, due to the effect of negative pressure, the capsule under the action of air flow, the lightweight unqualified capsule rises and enters the vacuum cleaner through the straw, the qualified capsule with large weight continues to fall, and the material is discharged through the active hopper, effectively achieving the purpose of polishing and waste removal. The powder and small fragments that are brushed off in the polishing process enter the sealing cylinder through the small hole on the wall of the polishing cylinder, and are sucked into the vacuum cleaner for recovery.

Main features:

It has the features of novel mechanism, simple operation, easy cleaning, high polishing efficiency and good cleanliness. All parts in contact with drugs are made of stainless steel, and the sanitary conditions of the equipment meet the GMP standards.

Capsule polishing machine can polish capsules and tablets, and can remove empty shells and broken bags. This machine is equipped with all stainless steel vacuum cleaner, no other vacuum equipment is required. Using negative pressure type waste removal device, no pollution to the environment.

Main structure:

Key parameter:
