CQ2B Pneumatic Cylinder Barrel

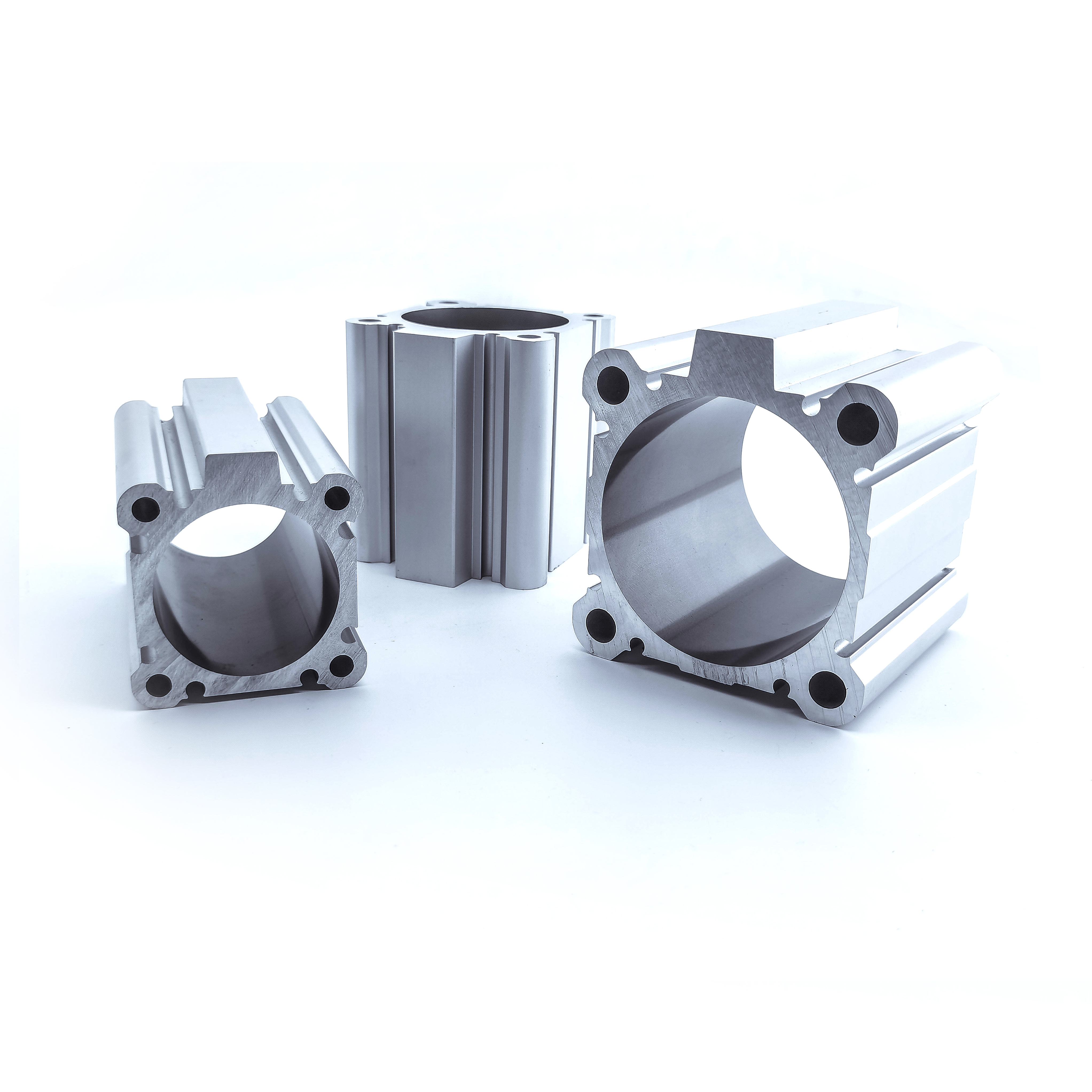

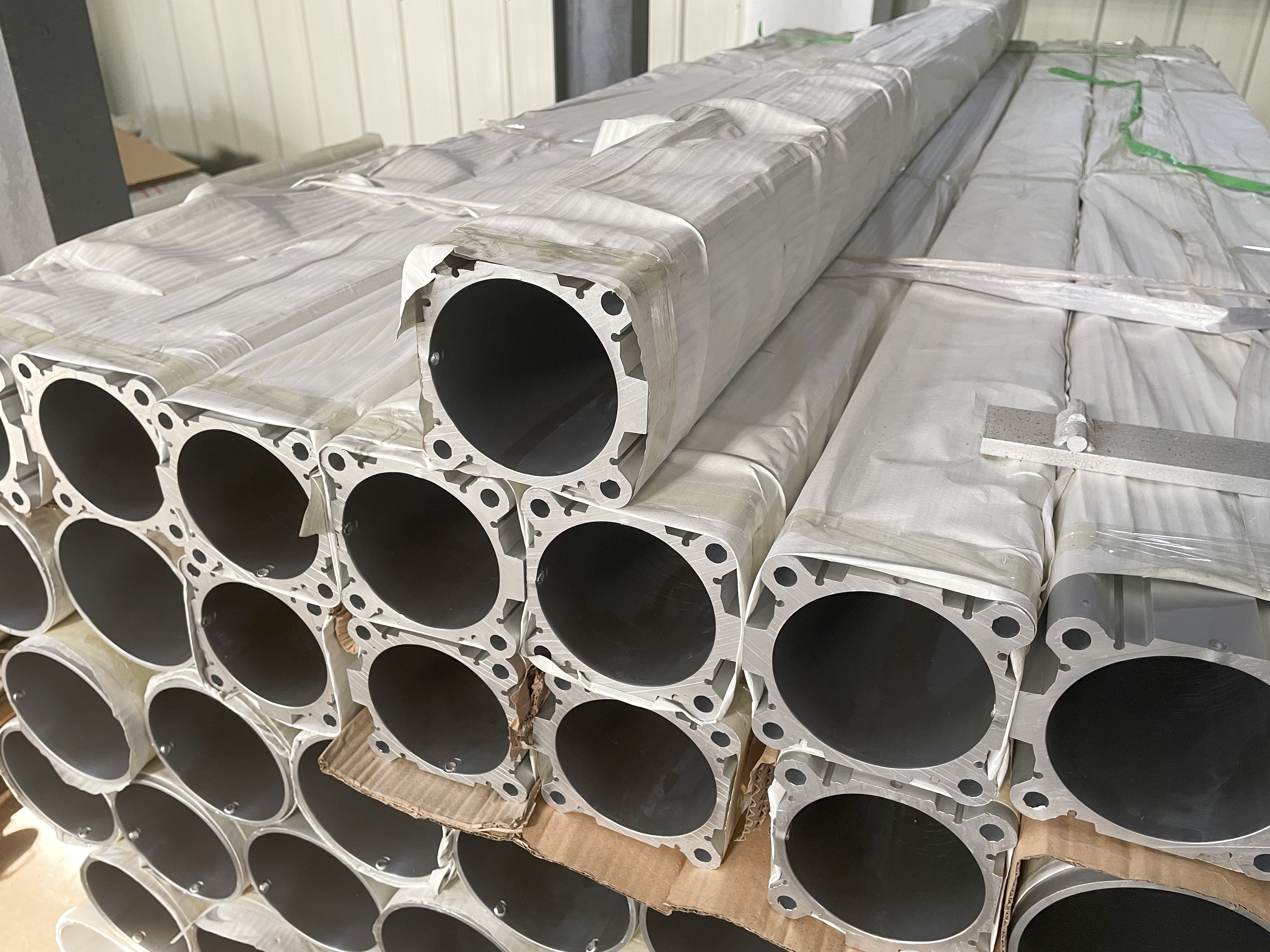

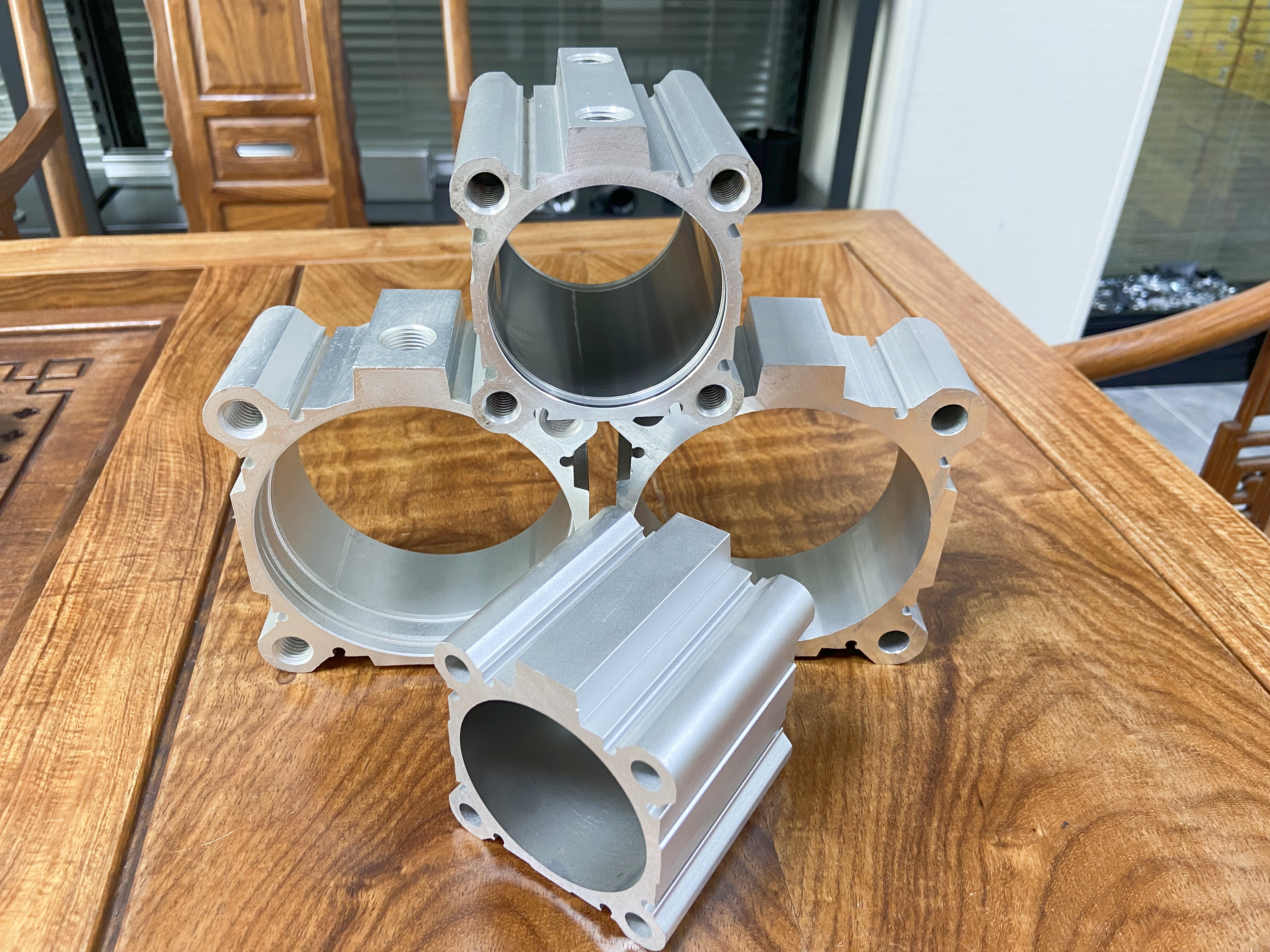

CQ2B/CQ2 Aluminum Pneumatic Cylinder Barrel

CQ2 cylinder is a rodless cylinder produced by Sankyo Machinery Corporation (now SMC Corporation) in Japan. SMC is a globally leading manufacturer of pneumatic components, whose products are widely used in various automation equipment. The CQ2 series rodless cylinder has been widely used in many industries due to its compact design and high performance.

The characteristic of a rodless cylinder is that it does not have a traditional extension shaft or piston rod, but rather achieves linear motion through the interaction of a built-in magnet and magnetic components on an external slider. This design can reduce the need for installation space and avoid the wear or leakage problems that traditional cylinder rods may encounter during the expansion and contraction process.

Some features of the CQ2 series include:

Highly integrated design makes installation easier.

Multiple buffering methods can be selected, such as adjustable buffering, hydraulic buffering, etc., to meet different application needs.

Has good positioning accuracy.

Can provide a larger travel length in a smaller space.

Suitable for environments that require high cleanliness, such as the food processing industry.

Our new CQ2 cylinder Tube in bore sizes bewteen Ø 32 to 200mm have been designed with slide in grooves which can accommodate auto-switches on all four cylinder sides without the need for auto-switch brackets.CQ2 Pneumatic Cylinder Barrel.

Features

1. Standard stroke is at 5mm interval.

2. Compact body and light-weighted.

3. Suitable slot on the cylinder barrel to make it easy for magnetic sensor to fit on.

4. With self-lubricating bearing, the piston rod is lubrication free.

5. Magnet is optional.
